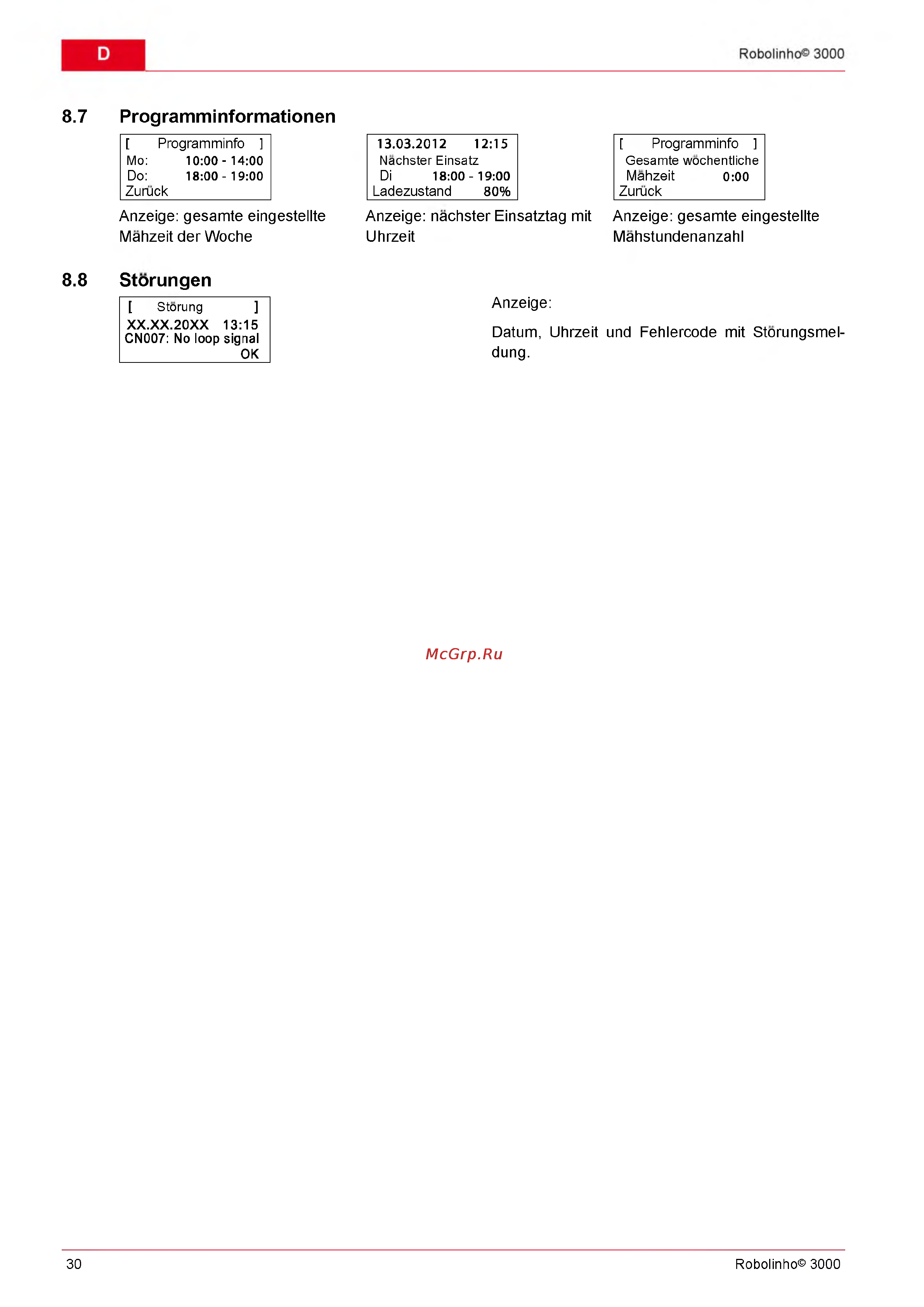

Al-Ko Robolinho 3000 [30/88] P ro g ra m m in fo rm a tio n e n

8.7 Program m inform ationen

[ Programminfo ]

Mo: 10:00-14:00

Do: 18:00-19:00

Zuruck

_____________

Anzeige: gesamte eingestellte

Mahzeit der Woche

8.8 Storungen

Datum, Uhrzeit und Fehlercode mit Storungsmel-

dung.

[ Storung ]

XX.XX.20XX 13:15

CN007: No loop signal

[ Programminfo ]

Gesamte wochentliche

Mahzeit 0:00

Zuruck

_____________

Anzeige: nachster Einsatztag mit Anzeige: gesamte eingestellte

Uhrzeit Mahstundenanzahl

13.03.2012 12:15

Nachster Einsatz

Di 18:00-19:00

Ladezustand 80%
