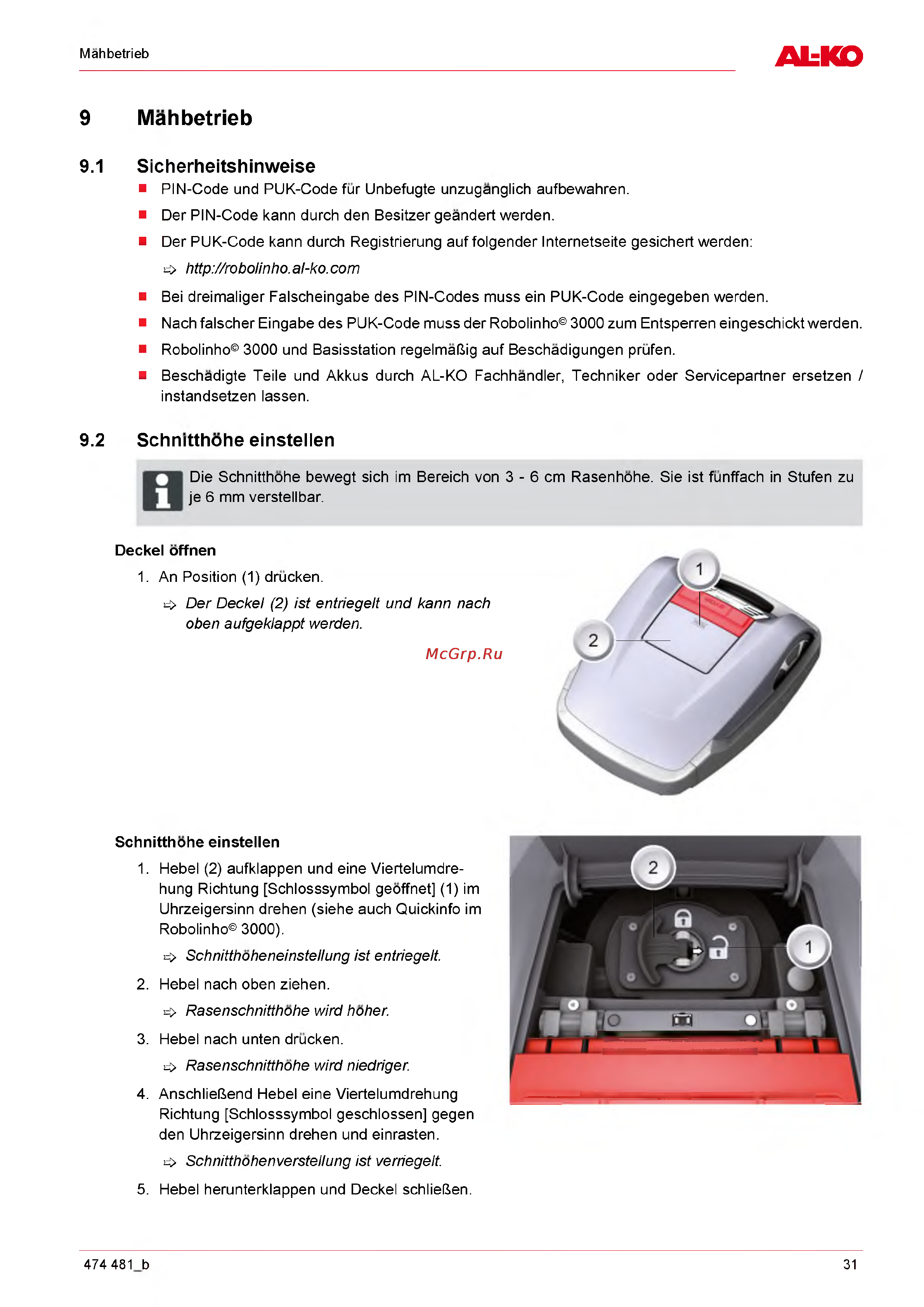

Al-Ko Robolinho 3000 [31/88] Mahbetrieb
![Al-Ko Robolinho 3000 [31/88] Mahbetrieb](/views2/1098162/page31/bg1f.png)
Mahbetrieb
ALKO
9 Mahbetrieb
9.1 Sicherheitshinw eise
■ PIN-Code und PUK-Code fur Unbefugte unzuganglich aufbewahren.
■ Der PIN-Code kann durch den Besitzer geandert werden.
■ Der PUK-Code kann durch Registrierung auf folgender Internetseite gesichert werden:
^ http://robolinho.al-ko.com
■ Bei dreimaliger Falscheingabe des PIN-Codes muss ein PUK-Code eingegeben werden.
■ Nach falscher Eingabe des PUK-Code muss der Robolinho© 3000 zum Entsperren eingeschickt werden.
■ Robolinho© 3000 und Basisstation regelmaftig auf Beschadigungen prufen.
■ Beschadigte Teile und Akkus durch AL-KO Fachhandler, Techniker oder Servicepartner ersetzen /
instandsetzen lassen.
9.2 Schm tthohe einstellen
D ie Schnitthohe bewegt sich im Bereich von 3 - 6 cm Rasenhohe. Sie ist funffach in Stufen zu
je 6 mm verstellbar.
Deckel offnen
1. An Position (1) drucken.
^ Der Deckel (2) ist entriegelt und kann nach
oben aufgeklappt werden.
Schnitthohe einstellen
1. Hebel (2) aufklappen und eine Viertelumdre-
hung Richtung [Schlosssymbol geoffnet] (1) im
Uhrzeigersinn drehen (siehe auch Quickinfo im
Robolinho© 3000).
^ Schnitthoheneinstellung ist entriegelt.
2. Hebel nach oben ziehen.
^ Rasenschnitthohe wird hoher.
3. Hebel nach unten drucken.
^ Rasenschnitthohe wird niedriger.
4. AnschlieBend Hebel eine Viertelumdrehung
Richtung [Schlosssymbol geschlossen] gegen
den Uhrzeigersinn drehen und einrasten.
^ Schnitthohenverstellung ist verriegelt.
5. Hebel herunterklappen und Deckel schlieften.
474 481 b 31
