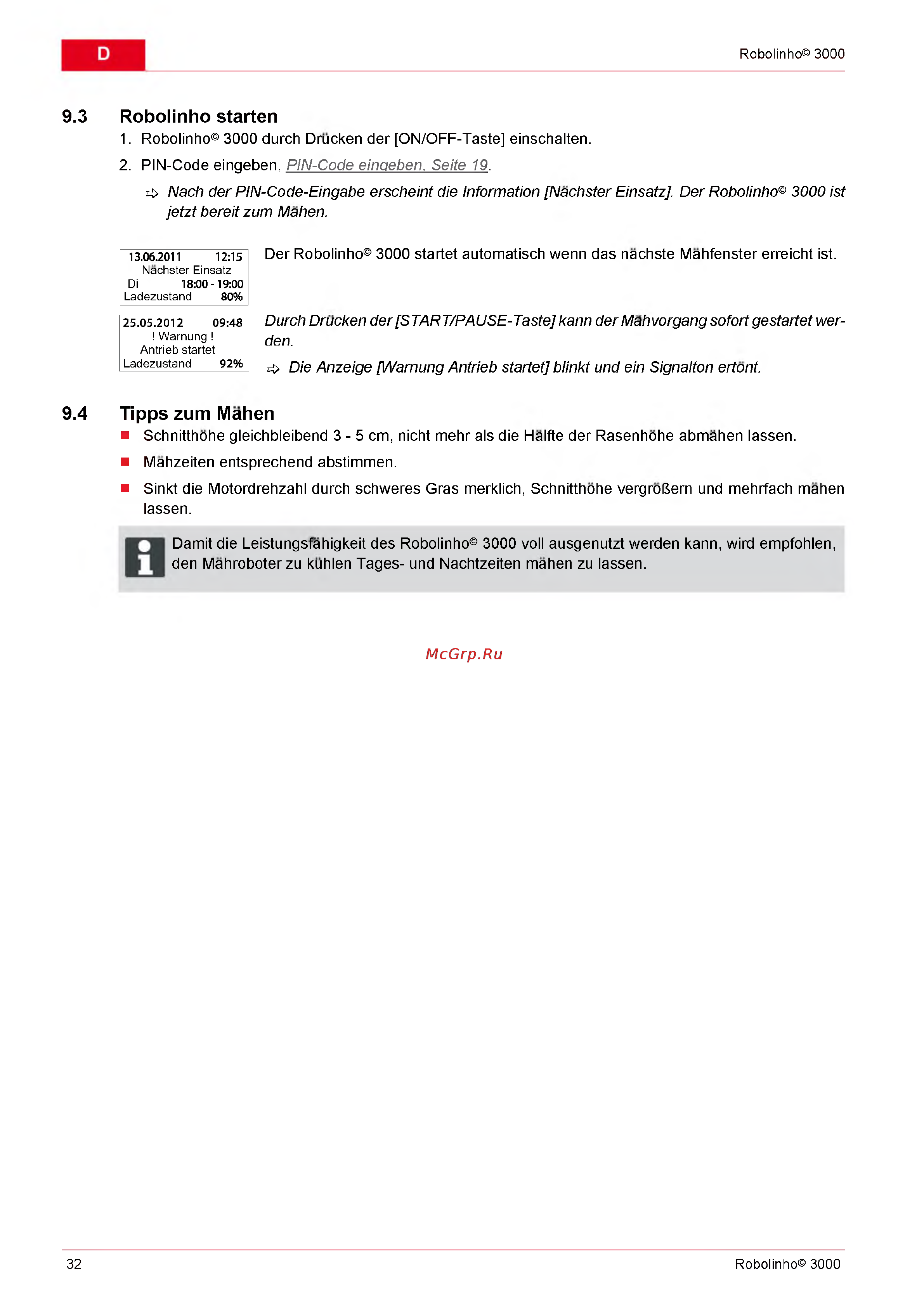

Robolinho© 3000
9.3 R obolinho starten
1. Robolinho© 3000 durch Drucken der [ON/OFF-Taste] einschalten.
2. PIN-Code eingeben, PIN-Code eingeben, Seite 19.
^ Nach der PIN-Code-Eingabe erscheint die Information [Nachster Einsatz]. Der Robolinho© 3000 ist
jetzt bereit zum Mahen.
13.06.2011 12:151 Der Robolinho© 3000 startet automatisch wenn das nachste Mahfenster erreicht ist.
Nachster Einsatz
Di 18:00-19:00
Ladezustand 80%
25.05.2012 09:48 Durch Drucken der[START/PAUSE-Taste]kann der Mahvorgang sofortgestartet wer-
! Warnung ! den
Antrieb startet '
Ladezustand
___
92% ^ Die Anzeige [Warnung Antrieb startet] blinkt und ein Signalton ertont.
9.4 Tipps zum Mahen
■ Schnitthohe gleichbleibend 3 - 5 cm, nicht mehr als die Halfte der Rasenhohe abmahen lassen.
■ Mahzeiten entsprechend abstimmen.
■ Sinkt die Motordrehzahl durch schweres Gras merklich, Schnitthohe vergroGern und mehrfach mahen
lassen.
D amit die Leistungsfahigkeit des Robolinho© 3000 voll ausgenutzt werden kann, wird empfohlen,
den Mahroboter zu kuhlen Tages- und Nachtzeiten mahen zu lassen.
32 Robolinho© 3000
