Al-Ko Robolinho 3000 [56/88] Electrical installation
![Al-Ko Robolinho 3000 [56/88] Electrical installation](/views2/1098162/page56/bg38.png)
en
Original operating instructions

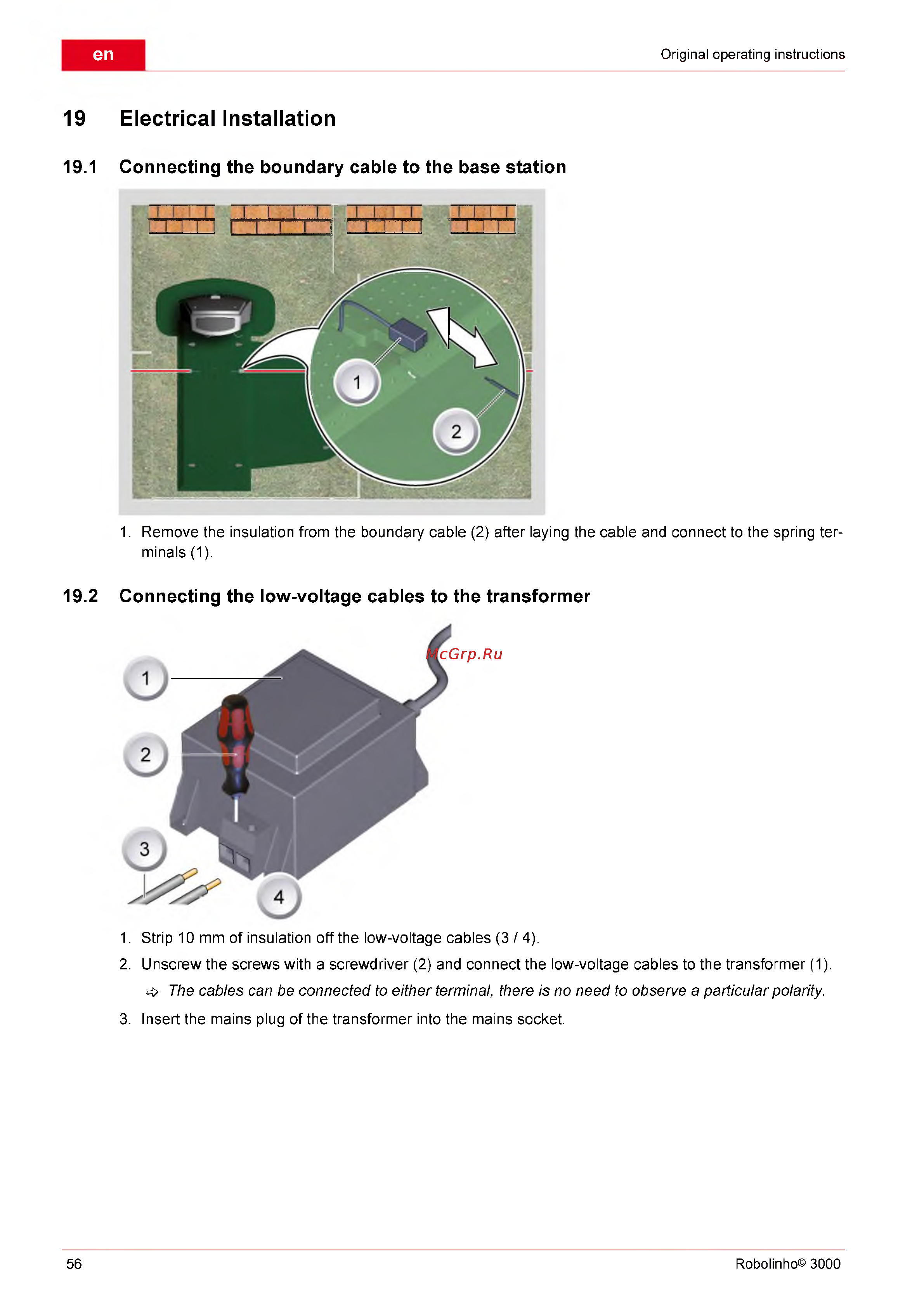

19 Electrical Installation
19.1 C onnecting the boundary cable to the base station
1. Remove the insulation from the boundary cable (2) after laying the cable and connect to the spring ter-
minals (1).
19.2 C onnecting the low -voltage cables to the transform er
1. Strip 10 mm of insulation off the low-voltage cables (3 / 4).
2. Unscrew the screws with a screwdriver (2) and connect the low-voltage cables to the transformer (1).
^ The cables can be connected to either terminal, there is no need to observe a particular polarity.
3. Insert the mains plug of the transformer into the mains socket.
56 Robolinho© 3000
