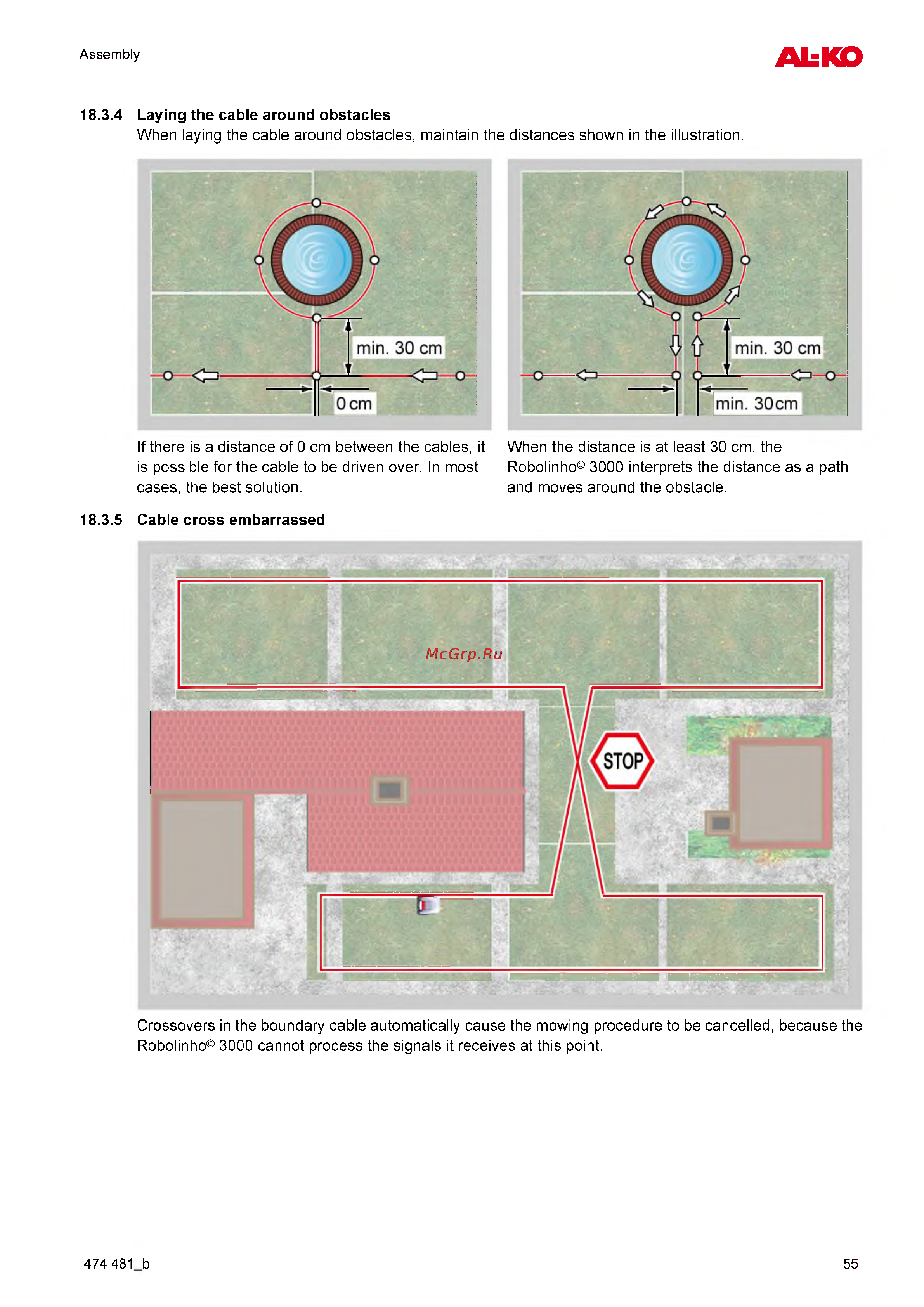

Assembly
ALKO
18.3.4 Laying the cable around obstacles
When laying the cable around obstacles, maintain the distances shown in the illustration.
If there is a distance of 0 cm between the cables, it
is possible for the cable to be driven over. In most
cases, the best solution.
18.3.5 Cable cross embarrassed
When the distance is at least 30 cm, the
Robolinho© 3000 interprets the distance as a path
and moves around the obstacle.
Crossovers in the boundary cable automatically cause the mowing procedure to be cancelled, because the
Robolinho© 3000 cannot process the signals it receives at this point.
474 481 b 55
