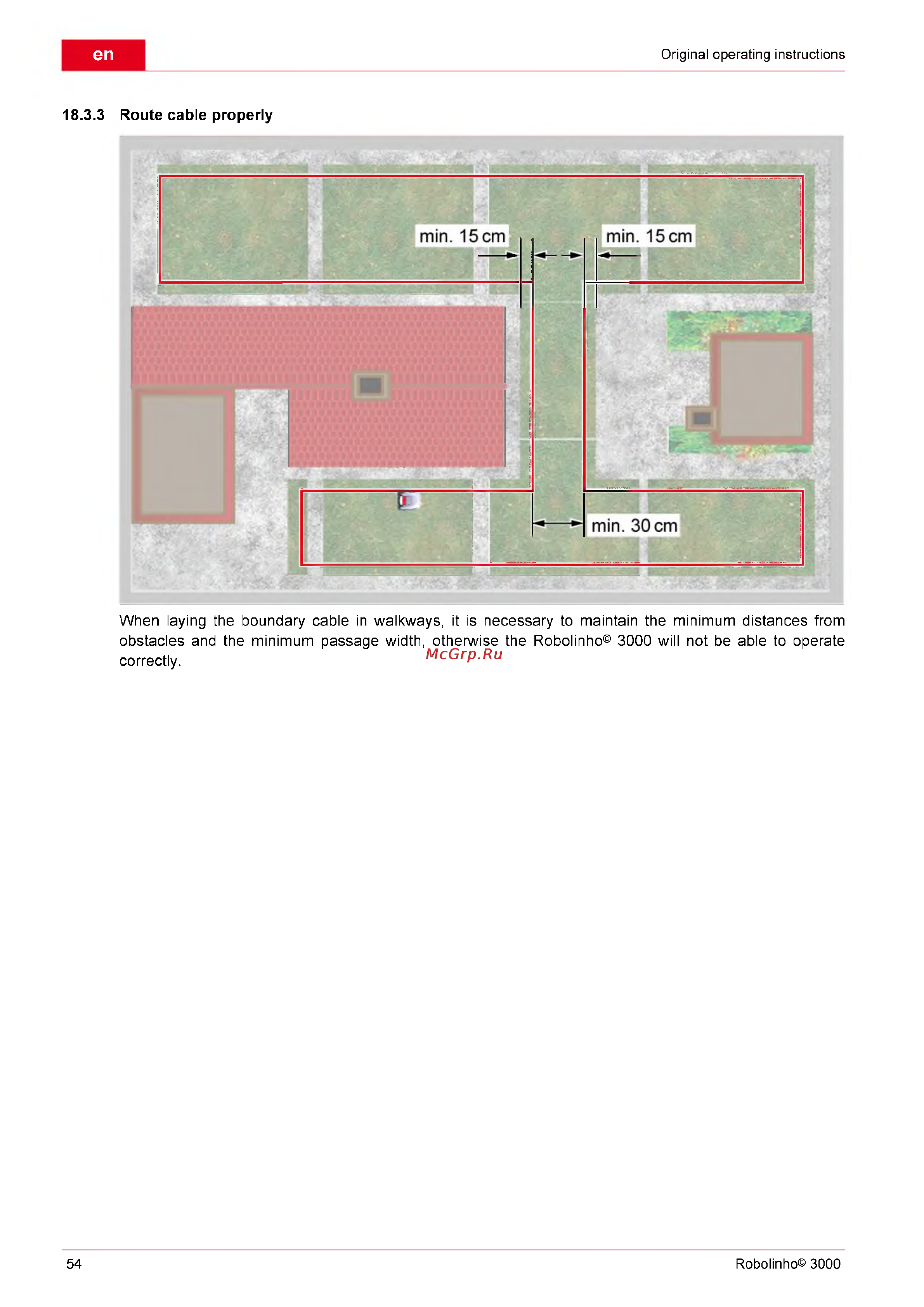

18.3.3 Route cable properly
When laying the boundary cable in walkways, it is necessary to maintain the minimum distances from
obstacles and the minimum passage width, otherwise the Robolinho© 3000 will not be able to operate
correctly.
