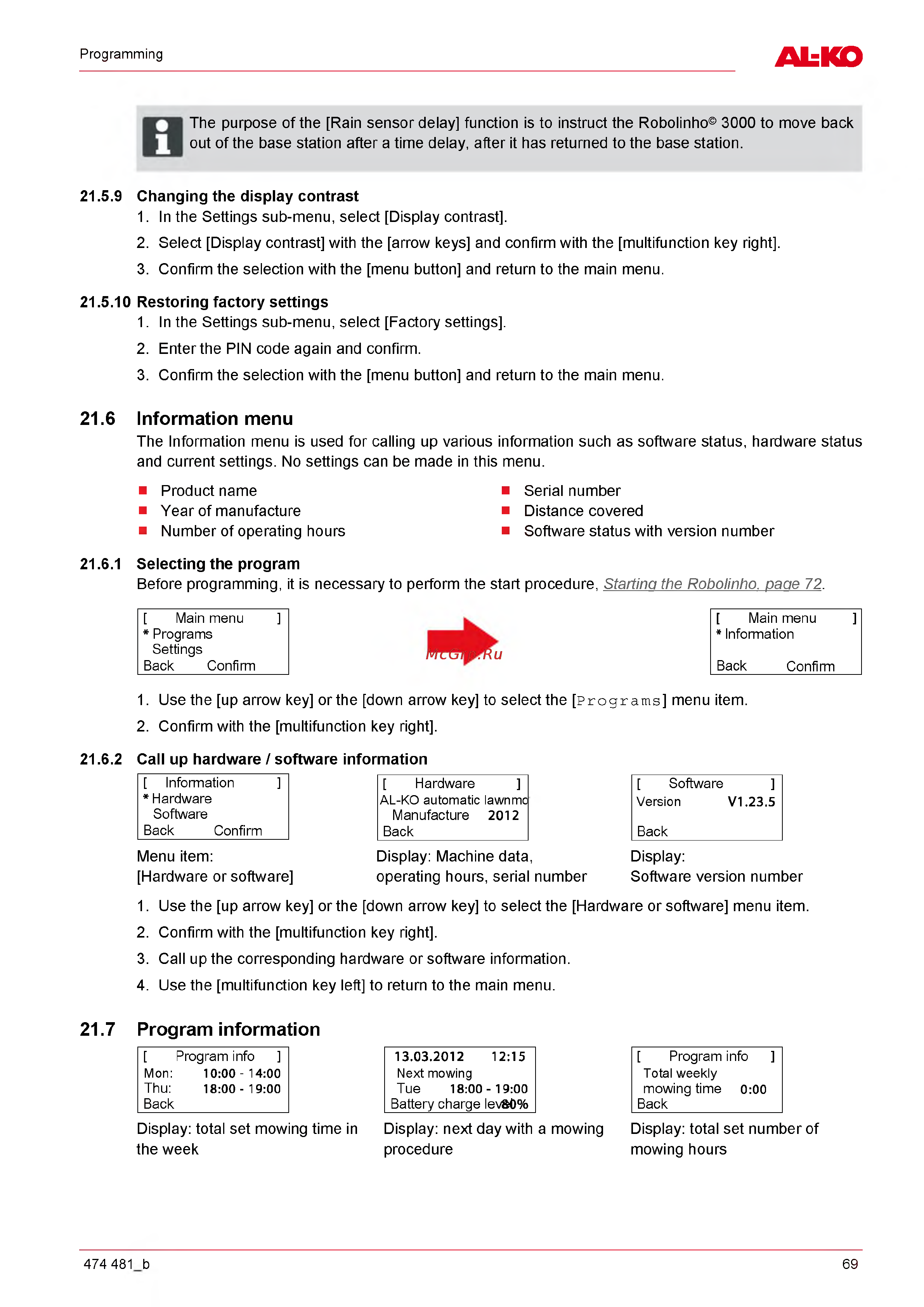

Programming
ALKO
21.5.9
21.5.10
21.6
21.6.1
21.6.2
21.7
T he purpose of the [Rain sensor delay] function is to instruct the Robolinho© 3000 to move back
out of the base station after a time delay, after it has returned to the base station.
Changing the display contrast
1. In the Settings sub-menu, select [Display contrast].
2. Select [Display contrast] with the [arrow keys] and confirm with the [multifunction key right].
3. Confirm the selection with the [menu button] and return to the main menu.
Restoring factory settings
1. In the Settings sub-menu, select [Factory settings].
2. Enter the PIN code again and confirm.
3. Confirm the selection with the [menu button] and return to the main menu.
Inform ation menu
The Information menu is used for calling up various information such as software status, hardware status
and current settings. No settings can be made in this menu.
■ Product name ■ Serial number
■ Year of manufacture ■ Distance covered
■ Number of operating hours ■ Software status with version number
Selecting the program
Before programming, it is necessary to perform the start procedure, Starting the Robolinho, page 72.
[ Main menu ] [ Main menu ]
* Programs * Information
Settings
Back Confirm
Back Confirm
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Confirm with the [multifunction key right].
Call up hardware / software information
[ Information ]
* Hardware
Software
Back Confirm
[ Hardware ]
AL-KO automatic lawnmc
Manufacture 2012
Back
[ Software ]
Version V1.23.5
Back
Menu item: Display: Machine data, Display:
[Hardware or software] operating hours, serial number Software version number
1. Use the [up arrow key] or the [down arrow key] to select the [Hardware or software] menu item.
2. Confirm with the [multifunction key right].
3. Call up the corresponding hardware or software information.
4. Use the [multifunction key left] to return to the main menu.
Program inform ation
[
Program info ]
Mon:
10:00 - 14:00
Thu:
18:00 - 19:00
Back
13.03.2012 12:15
Next mowing
Tue 18:00-19:00
Battery charge levSQ%
[ Program info ]
Total weekly
mowing time 0:00
Back
Display: total set mowing time in Display: next day with a mowing Display: total set number of
the week procedure mowing hours
474 481 b 69
