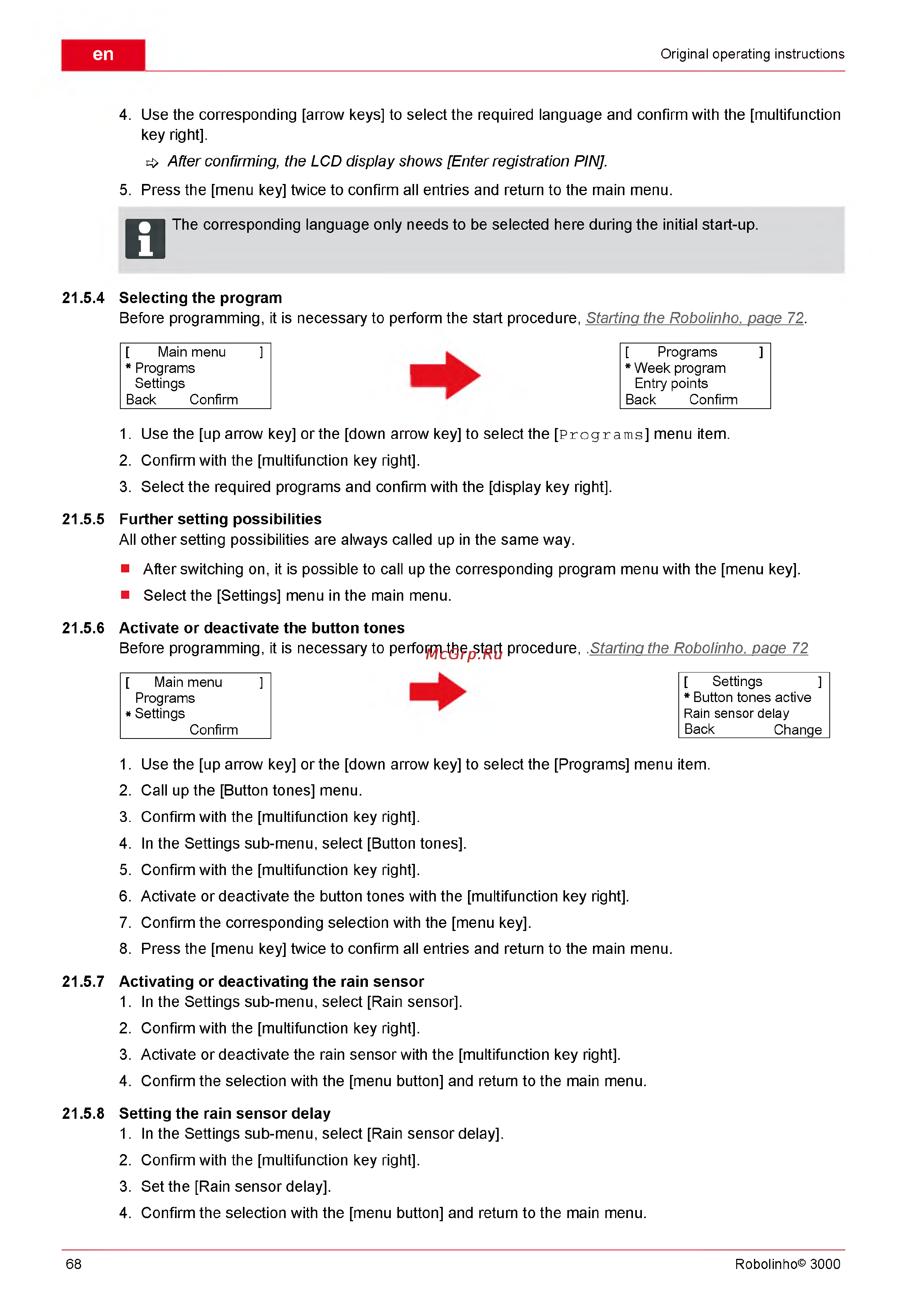

en
Original operating instructions
21.5.4
21.5.5
21.5.6
21.5.7
21.5.8
4. Use the corresponding [arrow keys] to select the required language and confirm with the [multifunction
key right].
^ After confirming, the LCD display shows [Enter registration PIN].
5. Press the [menu key] twice to confirm all entries and return to the main menu.
H
T he corresponding language only needs to be selected here during the initial start-up.
Selecting the program
Before programming, it is necessary to perform the start procedure, Starting the Robolinho, page 72.
[ Main menu ] [ Programs ]
* Programs * Week program
Settings 1
___
n Entry points
Back Confirm Back Confirm
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Confirm with the [multifunction key right].
3. Select the required programs and confirm with the [display key right].
Further setting possibilities
All other setting possibilities are always called up in the same way.
■ After switching on, it is possible to call up the corresponding program menu with the [menu key].
■ Select the [Settings] menu in the main menu.
Activate or deactivate the button tones
Before programming, it is necessary to perform the start procedure, .Starting the Robolinho, page 72
[ Main menu ]
[ Settings ]
Programs
* Button tones active
* Settings
Rain sensor delay
Confirm
Back Change
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Call up the [Button tones] menu.
3. Confirm with the [multifunction key right].
4. In the Settings sub-menu, select [Button tones].
5. Confirm with the [multifunction key right].
6. Activate or deactivate the button tones with the [multifunction key right].
7. Confirm the corresponding selection with the [menu key].
8. Press the [menu key] twice to confirm all entries and return to the main menu.
Activating or deactivating the rain sensor
1. In the Settings sub-menu, select [Rain sensor].
2. Confirm with the [multifunction key right].
3. Activate or deactivate the rain sensor with the [multifunction key right].
4. Confirm the selection with the [menu button] and return to the main menu.
Setting the rain sensor delay
1. In the Settings sub-menu, select [Rain sensor delay].
2. Confirm with the [multifunction key right].
3. Set the [Rain sensor delay].
4. Confirm the selection with the [menu button] and return to the main menu.
68 Robolinho© 3000
