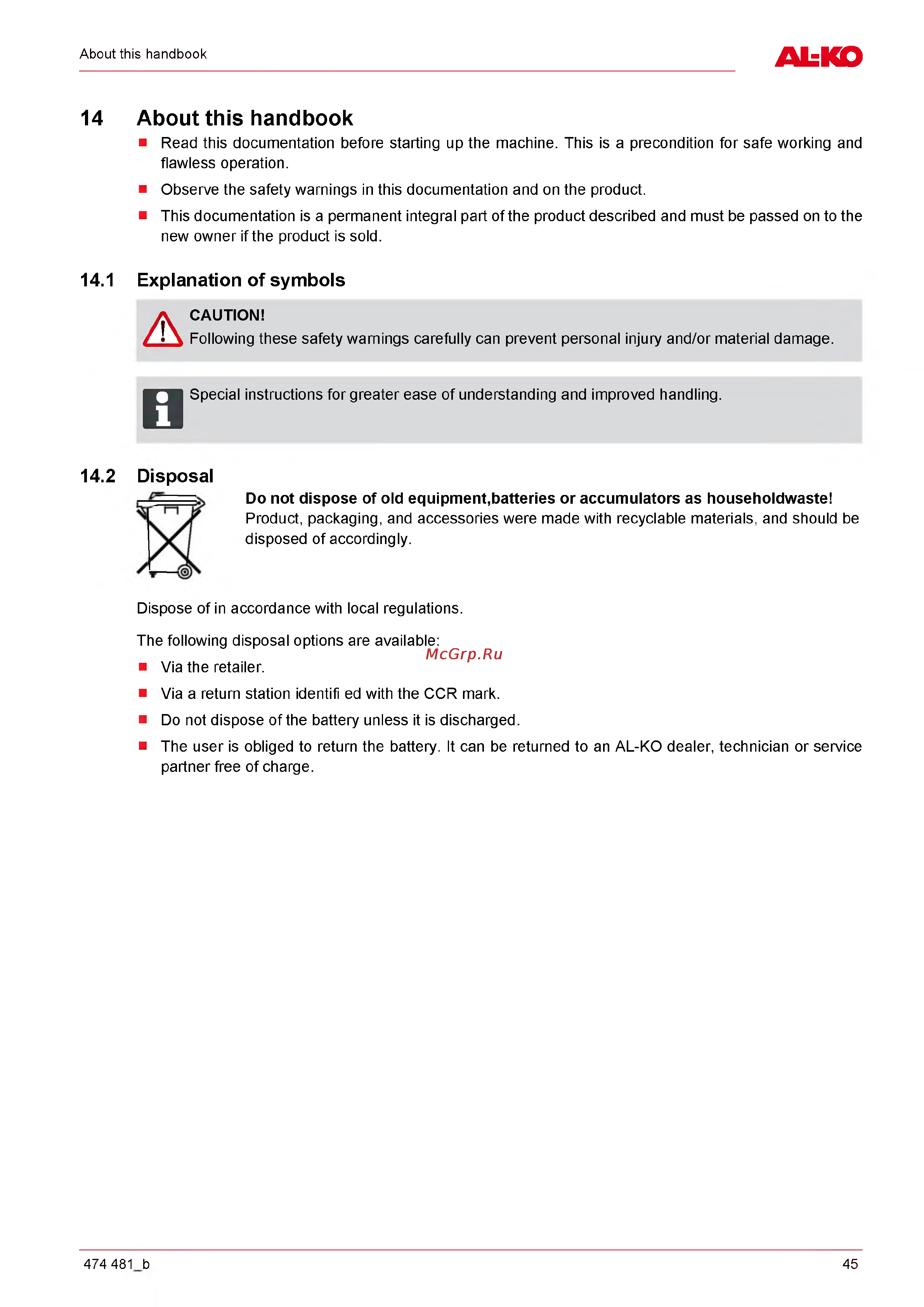

About this handbook
ALKO
14
14.1
14.2
About this handbook
■ Read this documentation before starting up the machine. This is a precondition for safe working and
flawless operation.
■ Observe the safety warnings in this documentation and on the product.
■ This documentation is a permanent integral part of the product described and must be passed on to the
new owner if the product is sold.
Explanation o f sym bols
A
CAUTION!
Following these safety warnings carefully can prevent personal injury and/or material damage.
H
S pecial instructions for greater ease of understanding and improved handling.
Do not dispose of old equipment,batteries or accumulators as householdwaste!
Product, packaging, and accessories were made with recyclable materials, and should be
disposed of accordingly.
Dispose of in accordance with local regulations.
The following disposal options are available:
■ Via the retailer.
■ Via a return station identifi ed with the CCR mark.
■ Do not dispose of the battery unless it is discharged.
■ The user is obliged to return the battery. It can be returned to an AL-KO dealer, technician or service
partner free of charge.
Disposal
474 481 b 45
