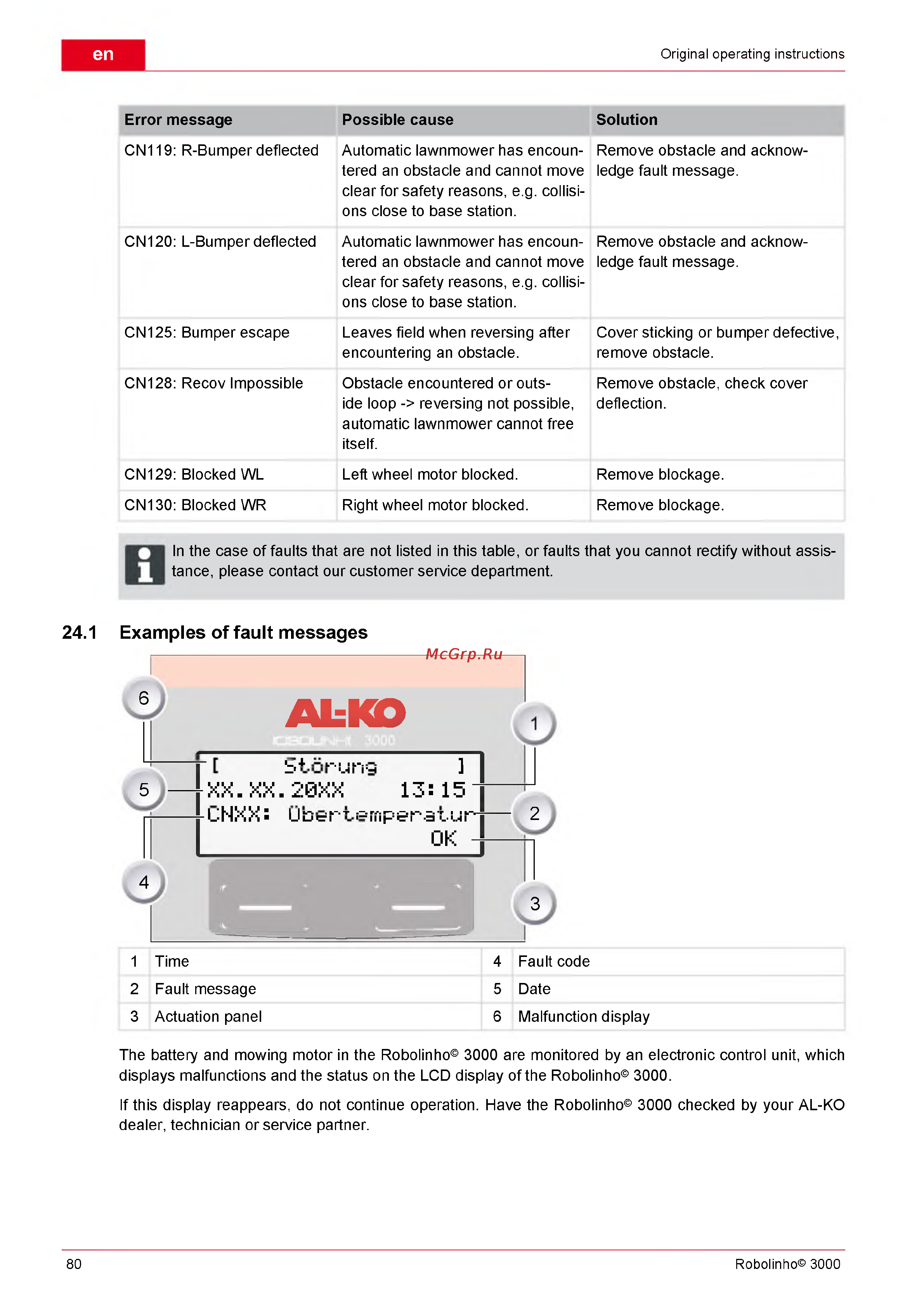

![Al-Ko Robolinho 3000 [80/88] Xx xx 0xx 13 15](/views2/1098162/page80/bg50.png)
en
Original operating instructions
Error message Possible cause Solution
CN119: R-Bumper deflected Automatic lawnmower has encoun-
tered an obstacle and cannot move
clear for safety reasons, e.g. collisi-
ons close to base station.
Remove obstacle and acknow-
ledge fault message.
CN120: L-Bumper deflected Automatic lawnmower has encoun-
tered an obstacle and cannot move
clear for safety reasons, e.g. collisi-
ons close to base station.
Remove obstacle and acknow-
ledge fault message.
CN125: Bumper escape Leaves field when reversing after
encountering an obstacle.
Cover sticking or bumper defective,
remove obstacle.
CN128: Recov Impossible Obstacle encountered or outs-
ide loop -> reversing not possible,
automatic lawnmower cannot free
itself.
Remove obstacle, check cover
deflection.
CN129: Blocked WL Left wheel motor blocked. Remove blockage.
CN130: Blocked WR Right wheel motor blocked. Remove blockage.
In the case of faults that are not listed in this table, or faults that you cannot rectify without assis-
tance, please contact our customer service department.
24.1 Exam ples o f fau lt m essages
6
ALKO
5
[
L.
4" L” . ■ ■ fc-. H
_■ '_HI I 'H J
XX.XX.20XX 13:15
I ,K JVy
1
I I L-.. fc-. -r , - , r / .r - . .- . ir t - . t ■ ■
i r , -
U M n r t " U u c i ■— 1111—■ ■=■ i - 3 ■.-■„h i
OK
— 2
J
4
3
1 Time 4 Fault code
2 Fault message 5 Date
3 Actuation panel 6 Malfunction display
The battery and mowing motor in the Robolinho© 3000 are monitored by an electronic control unit, which
displays malfunctions and the status on the LCD display of the Robolinho© 3000.
If this display reappears, do not continue operation. Have the Robolinho© 3000 checked by your AL-KO
dealer, technician or service partner.
80 Robolinho© 3000
