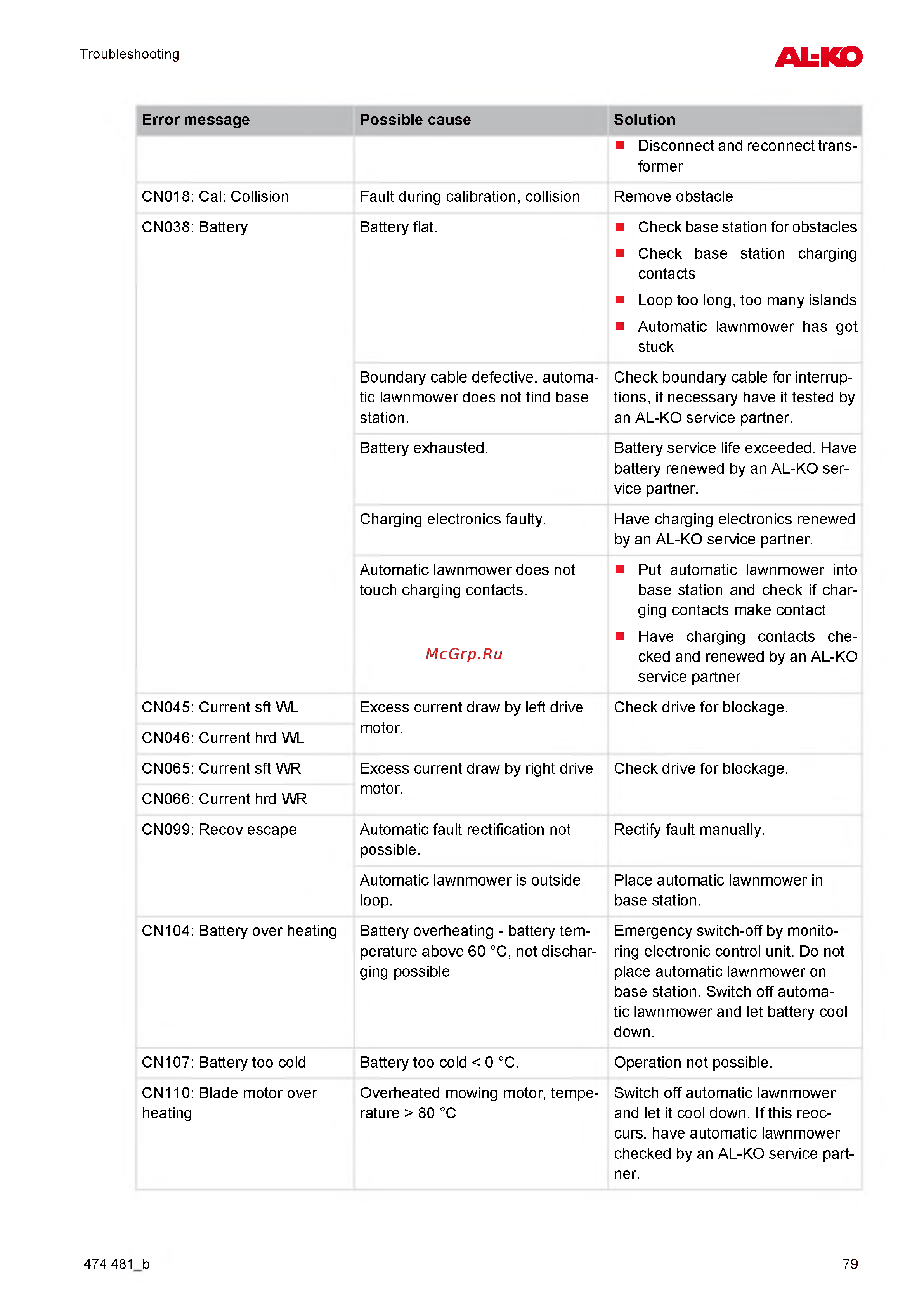

Troubleshooting
ALKO
Error message
CN018: Cal: Collision
CN038: Battery
CN045: Current sft WL
CN046: Current hrd WL
CN065: Current sft WR
CN066: Current hrd WR
CN099: Recov escape
CN104: Battery over heating
CN107: Battery too cold
CN110: Blade motor over
heating
Possible cause
Fault during calibration, collision
Battery flat.
Boundary cable defective, automa-
tic lawnmower does not find base
station.
Battery exhausted.
Charging electronics faulty.
Automatic lawnmower does not
touch charging contacts.
Excess current draw by left drive
motor.
Excess current draw by right drive
motor.
Automatic fault rectification not
possible.
Automatic lawnmower is outside
loop.
Battery overheating - battery tem
perature above 60 °C, not dischar-
ging possible
Battery too cold < 0 °C.
Solution
■ Disconnect and reconnect trans-
former
Remove obstacle
■ Check base station for obstacles
■ Check base station charging
contacts
■ Loop too long, too many islands
■ Automatic lawnmower has got
stuck
Check boundary cable for interrup-
tions, if necessary have it tested by
an AL-KO service partner.
Battery service life exceeded. Have
battery renewed by an AL-KO ser
vice partner.
Have charging electronics renewed
by an AL-KO service partner.
■ Put automatic lawnmower into
base station and check if char
ging contacts make contact
■ Have charging contacts che-
cked and renewed by an AL-KO
service partner
Check drive for blockage.
Check drive for blockage.
Rectify fault manually.
Place automatic lawnmower in
base station.
Emergency switch-off by monito-
ring electronic control unit. Do not
place automatic lawnmower on
base station. Switch off automa
tic lawnmower and let battery cool
down.
Operation not possible.
Overheated mowing motor, tempe- Switch off automatic lawnmower
rature > 80 °C and let it cool down. If this reoc-
curs, have automatic lawnmower
checked by an AL-KO service part
ner.
474 481 b 79
