en
Original operating instructions

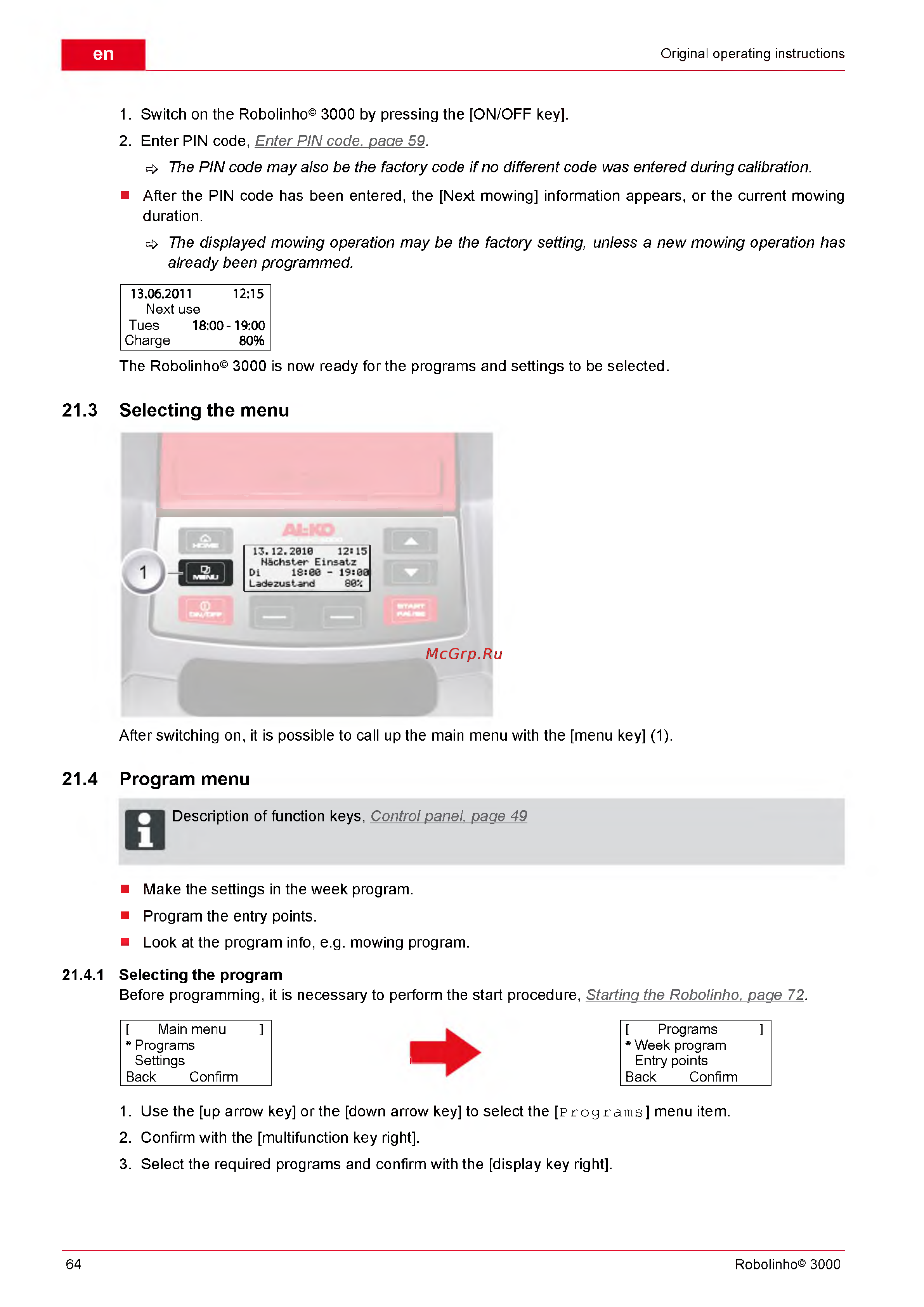

1. Switch on the Robolinho© 3000 by pressing the [ON/OFF key].
2. Enter PIN code, Enter PIN code, page 59.
^ The PIN code may also be the factory code if no different code was entered during calibration.
■ After the PIN code has been entered, the [Next mowing] information appears, or the current mowing
duration.
^ The displayed mowing operation may be the factory setting, unless a new mowing operation has
already been programmed.
13.06.2011 12:15
Next use
Tues 18:00-19:00
Charge 80%
The Robolinho© 3000 is now ready for the programs and settings to be selected.
21.3 Selecting the menu
After switching on, it is possible to call up the main menu with the [menu key] (1).
21.4 Program menu
IDescription of function keys, Control panel, page 49
■ Make the settings in the week program.
■ Program the entry points.
■ Look at the program info, e.g. mowing program.
21.4.1 Selecting the program
Before programming, it is necessary to perform the start procedure, Starting the Robolinho, page 72.
[ Main menu ] [ Programs ]
* Programs * Week program
Settings !
____
Entry points
Back Confirm Back Confirm
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Confirm with the [multifunction key right].
3. Select the required programs and confirm with the [display key right].
64 Robolinho© 3000
