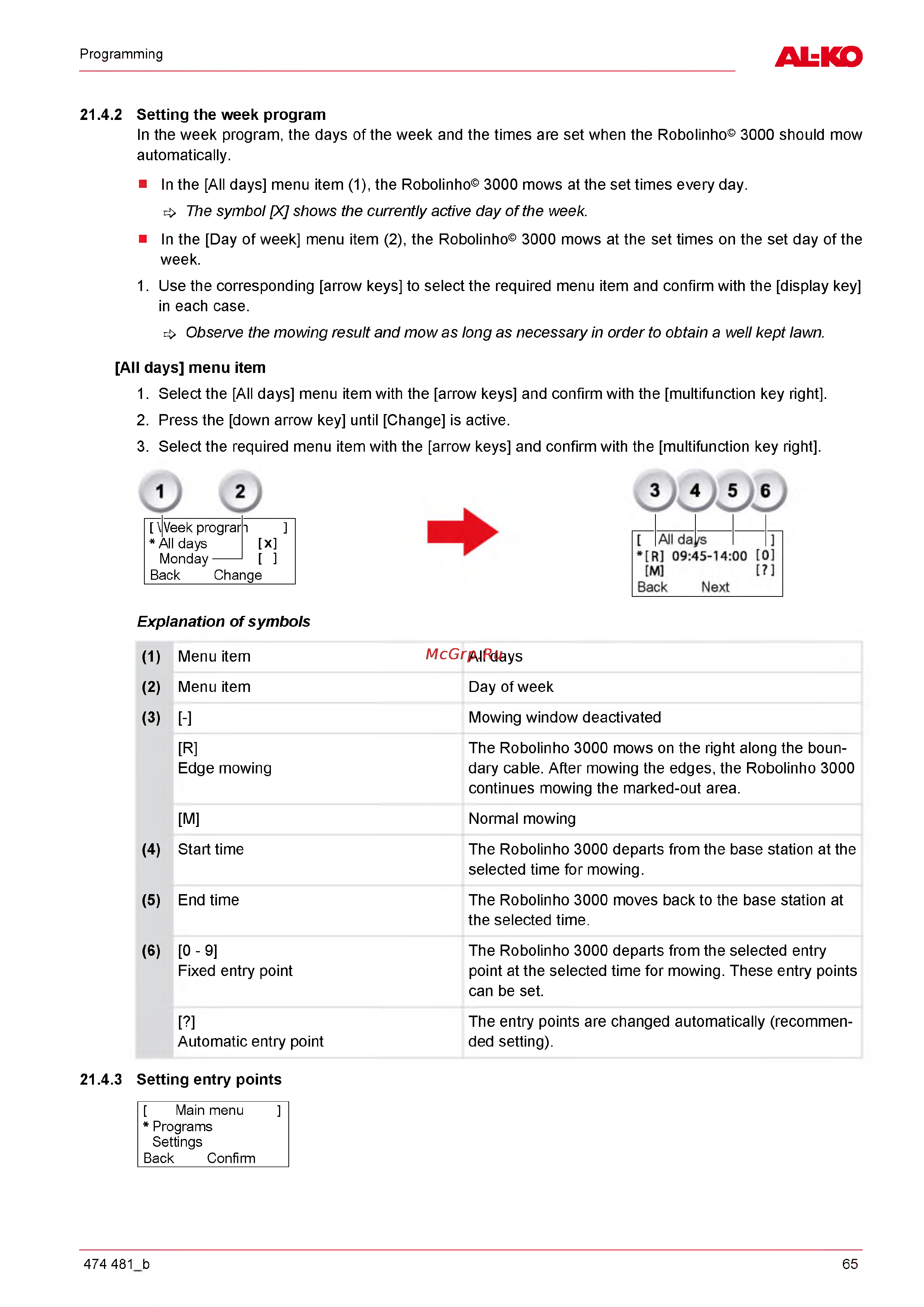

Programming
ALKO
21.4.2 Setting the week program
In the week program, the days of the week and the times are set when the Robolinho© 3000 should mow
automatically.
■ In the [All days] menu item (1), the Robolinho© 3000 mows at the set times every day.
^ The symbol [X] shows the currently active day of the week.
■ In the [Day of week] menu item (2), the Robolinho© 3000 mows at the set times on the set day of the
week.
1. Use the corresponding [arrow keys] to select the required menu item and confirm with the [display key]
in each case.
^ Observe the mowing result and mow as long as necessary in order to obtain a well kept lawn.
[All days] menu item
1. Select the [All days] menu item with the [arrow keys] and confirm with the [multifunction key right].
2. Press the [down arrow key] until [Change] is active.
3. Select the required menu item with the [arrow keys] and confirm with the [multifunction key right].
[ \|veek prograr
i ]
* All days
[X]
Monday
[ ]
Back Change
Explanation of symbols
(1) Menu item
(2) Menu item
(3) [-]
[R]
Edge mowing
[M]
(4) Start time
(5) End time
(6) [0 - 9]
Fixed entry point
[?]
Automatic entry point
21.4.3 Setting entry points
[ Main menu ]
* Programs
Settings
Back Confirm
All days
Day of week
Mowing window deactivated
The Robolinho 3000 mows on the right along the boun-
dary cable. After mowing the edges, the Robolinho 3000
continues mowing the marked-out area.
Normal mowing
The Robolinho 3000 departs from the base station at the
selected time for mowing.
The Robolinho 3000 moves back to the base station at
the selected time.
The Robolinho 3000 departs from the selected entry
point at the selected time for mowing. These entry points
can be set.
The entry points are changed automatically (recommen-
ded setting).
474 481 b 65
