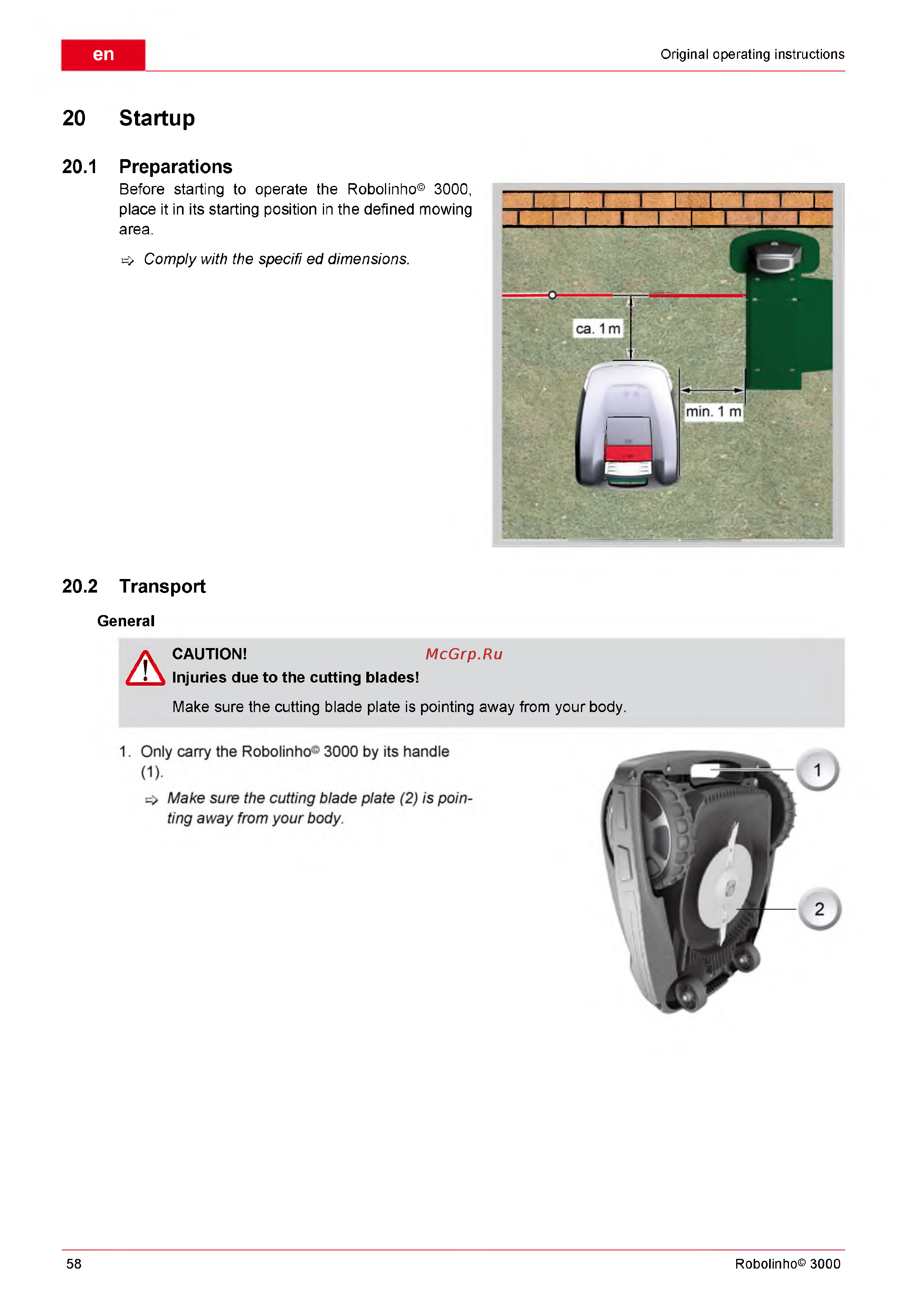

20 Startup
20.1 Preparations
Before starting to operate the Robolinho© 3000,
place it in its starting position in the defined mowing
area.
^ Comply with the specifi ed dimensions.
20.2 Transport
General
A
CAUTION!
- Injuries due to the cutting blades!
Make sure the cutting blade plate is pointing away from your body.
58 Robolinho© 3000
