Al-Ko Robolinho 3000 [46/88] Scope of delivery
![Al-Ko Robolinho 3000 [46/88] Scope of delivery](/views2/1098162/page46/bg2e.png)
en
Original operating instructions

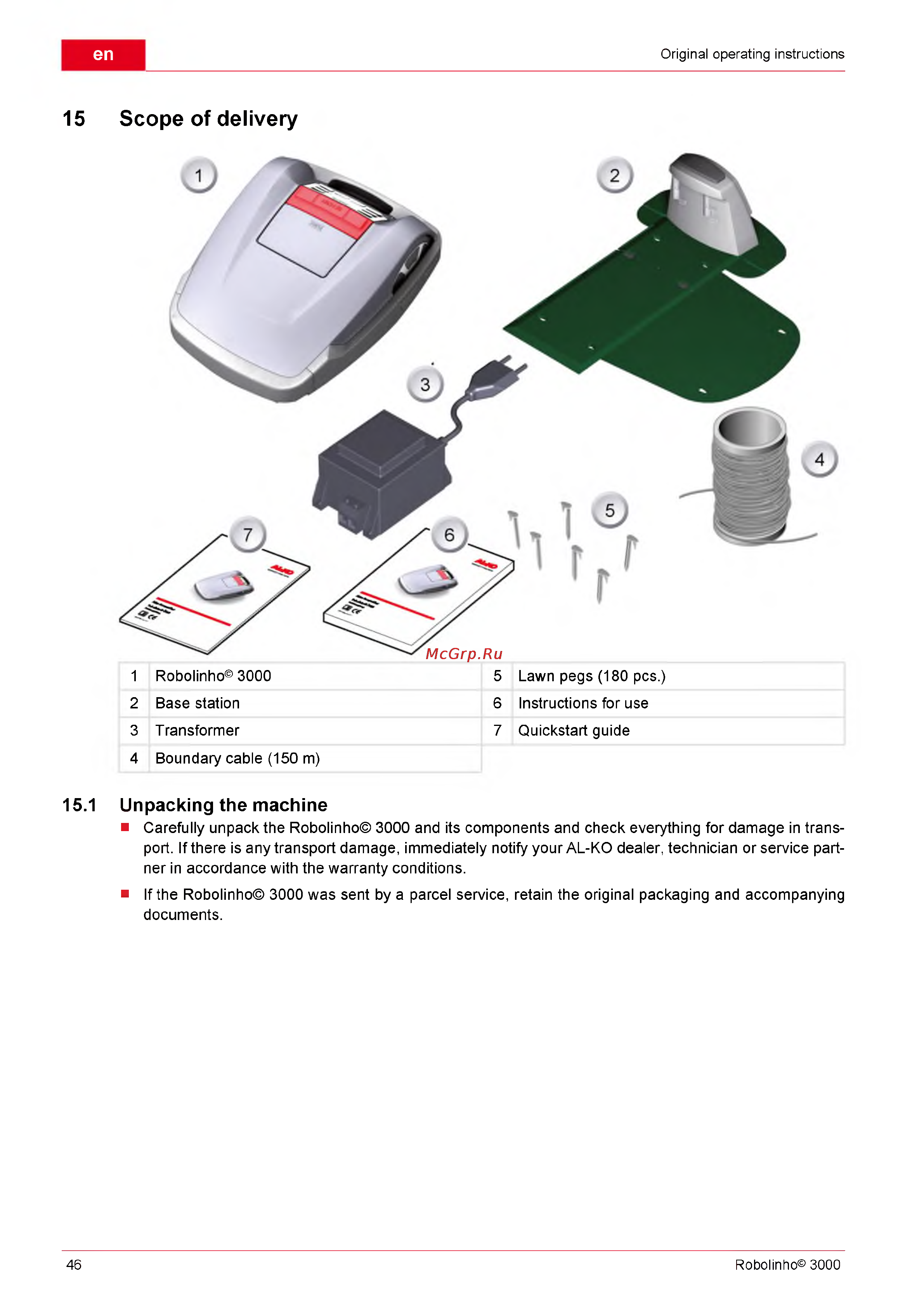

15 Scope of delivery
1 Robolinho© 3000 5 Lawn pegs (180 pcs.)
2 Base station 6 Instructions for use
3 Transformer 7 Quickstart guide
4 Boundary cable (150 m)
15.1 Unpacking the m achine
■ Carefully unpack the Robolinho© 3000 and its components and check everything for damage in trans
port. If there is any transport damage, immediately notify your AL-KO dealer, technician or service part
ner in accordance with the warranty conditions.
■ If the Robolinho© 3000 was sent by a parcel service, retain the original packaging and accompanying
documents.
46 Robolinho© 3000
