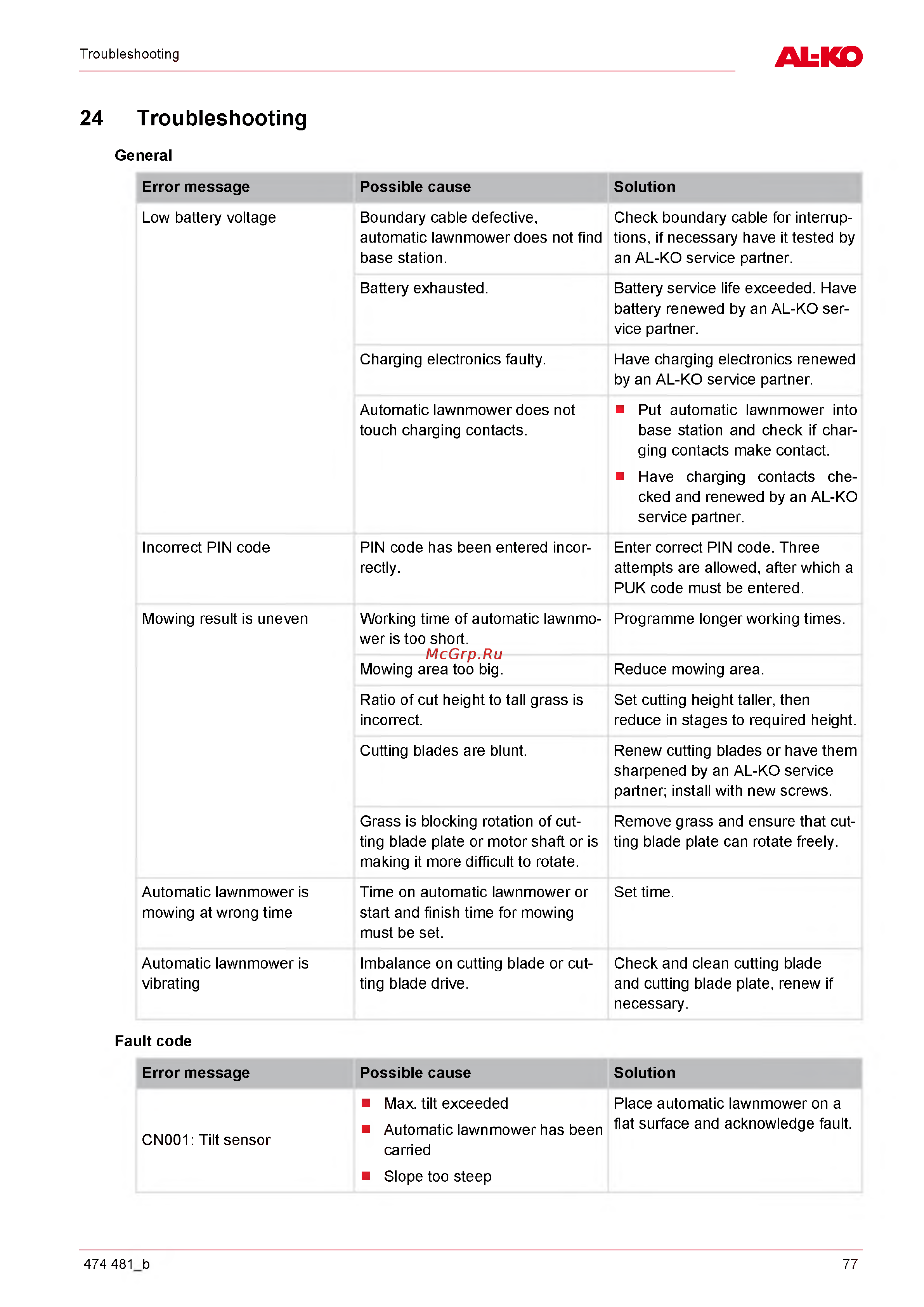

Troubleshooting
ALKO
24 Troubleshooting
General
Error message
Low battery voltage
Incorrect PIN code
Mowing result is uneven
Automatic lawnmower is
mowing at wrong time
Automatic lawnmower is
vibrating
Fault code
Error message
CN001: Tilt sensor
474 481 b
Possible cause
Boundary cable defective,
automatic lawnmower does not find
base station.
Battery exhausted.
Charging electronics faulty.
Automatic lawnmower does not
touch charging contacts.
PIN code has been entered incor-
rectly.
Working time of automatic lawnmo-
wer is too short.
Mowing area too big.
Ratio of cut height to tall grass is
incorrect.
Cutting blades are blunt.
Grass is blocking rotation of cut
ting blade plate or motor shaft or is
making it more difficult to rotate.
Time on automatic lawnmower or
start and finish time for mowing
must be set.
Imbalance on cutting blade or cut
ting blade drive.
Possible cause
■ Max. tilt exceeded
■ Automatic lawnmower has been
carried
■ Slope too steep
Solution
Check boundary cable for interrup-
tions, if necessary have it tested by
an AL-KO service partner.
Battery service life exceeded. Have
battery renewed by an AL-KO ser
vice partner.
Have charging electronics renewed
by an AL-KO service partner.
■ Put automatic lawnmower into
base station and check if char
ging contacts make contact.
■ Have charging contacts che-
cked and renewed by an AL-KO
service partner.
Enter correct PIN code. Three
attempts are allowed, after which a
PUK code must be entered.
Programme longer working times.
Reduce mowing area.
Set cutting height taller, then
reduce in stages to required height.
Renew cutting blades or have them
sharpened by an AL-KO service
partner; install with new screws.
Remove grass and ensure that cut
ting blade plate can rotate freely.
Set time.
Check and clean cutting blade
and cutting blade plate, renew if
necessary.
Solution
Place automatic lawnmower on a
flat surface and acknowledge fault.
77
