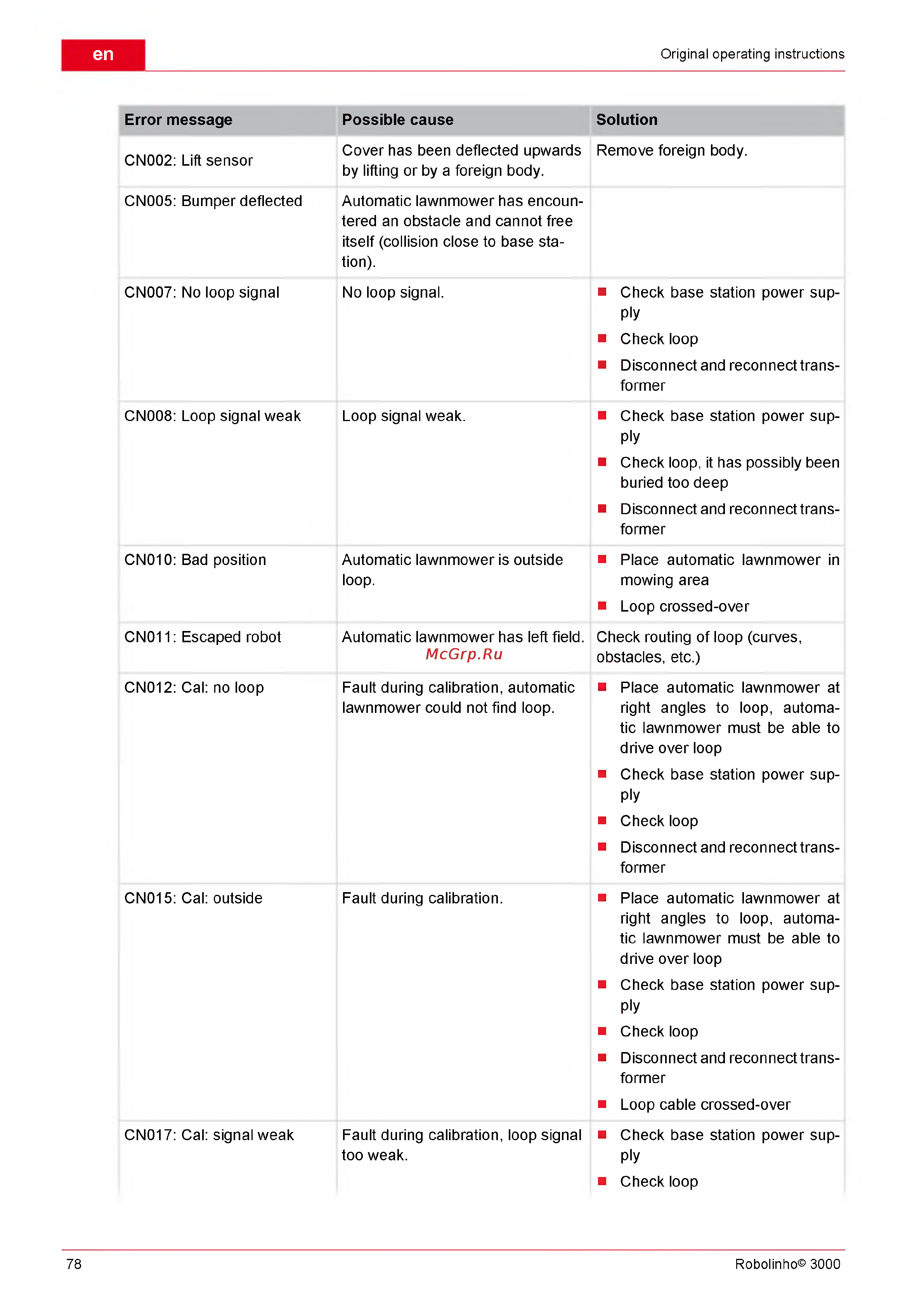

![Al-Ko Robolinho 3000 Инструкция по эксплуатации онлайн [78/88] 93025](/views2/1098162/page78/bg4e.png)
en
Original operating instructions
Error message
CN002: Lift sensor
CN005: Bumper deflected
CN007: No loop signal
CN008: Loop signal weak
CN010: Bad position
CN011: Escaped robot
CN012: Cal: no loop
CN015: Cal: outside
CN017: Cal: signal weak
Possible cause
Cover has been deflected upwards
by lifting or by a foreign body.
Automatic lawnmower has encoun-
tered an obstacle and cannot free
itself (collision close to base sta-
tion).
No loop signal.
Loop signal weak.
Automatic lawnmower is outside
loop.
Automatic lawnmower has left field.
Fault during calibration, automatic
lawnmower could not find loop.
Fault during calibration.
Fault during calibration, loop signal
too weak.
Solution
Remove foreign body.
■ Check base station power sup-
ply
■ Check loop
■ Disconnect and reconnect trans-
former
■ Check base station power sup-
ply
■ Check loop, it has possibly been
buried too deep
■ Disconnect and reconnect trans-
former
■ Place automatic lawnmower in
mowing area
■ Loop crossed-over
Check routing of loop (curves,
obstacles, etc.)
■ Place automatic lawnmower at
right angles to loop, automa
tic lawnmower must be able to
drive over loop
■ Check base station power sup-
ply
■ Check loop
■ Disconnect and reconnect trans-
former
■ Place automatic lawnmower at
right angles to loop, automa
tic lawnmower must be able to
drive over loop
■ Check base station power sup-
ply
■ Check loop
■ Disconnect and reconnect trans-
former
■ Loop cable crossed-over
■ Check base station power sup-
ply
■ Check loop
78 Robolinho© 3000
