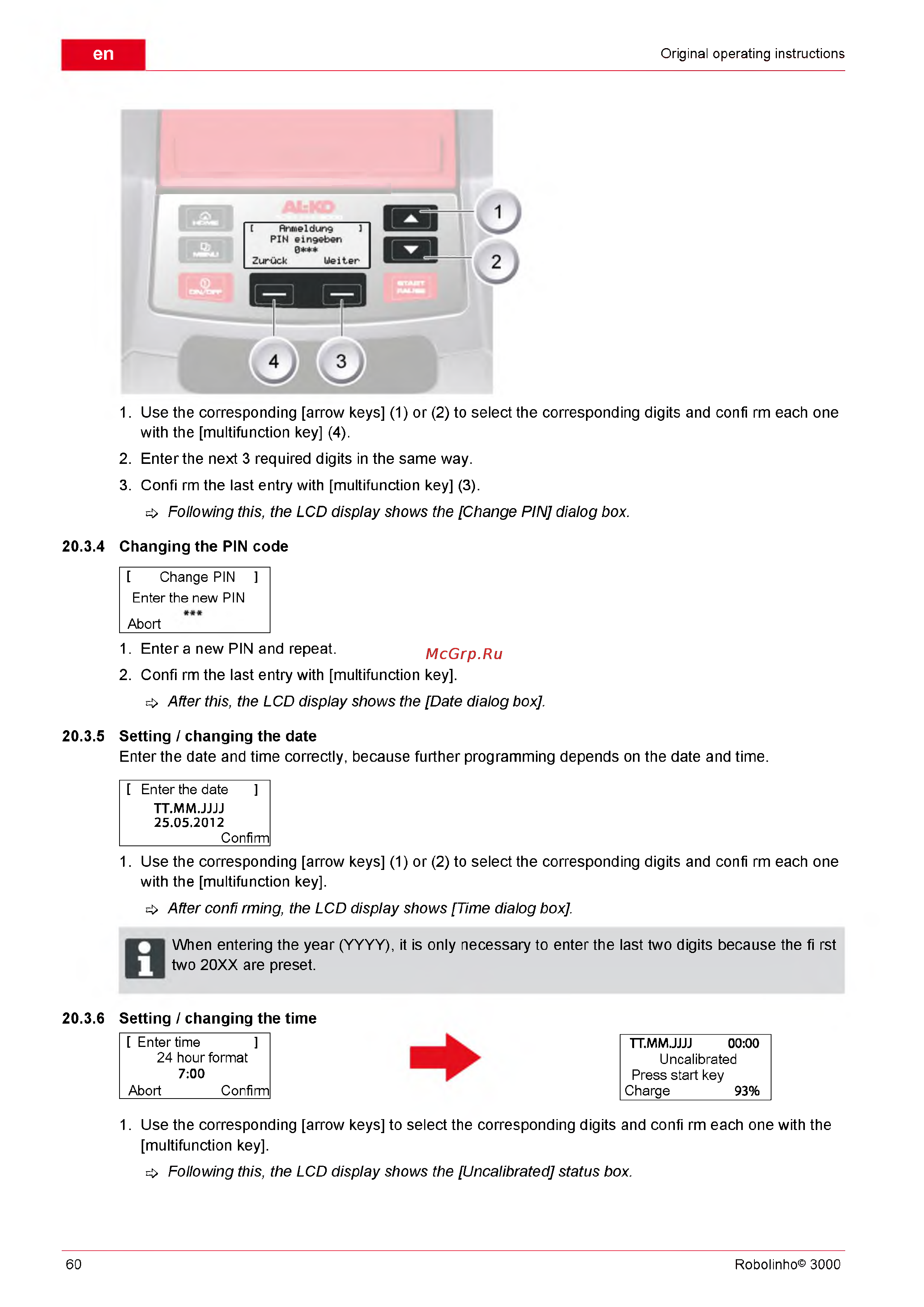

Original operating instructions
1. Use the corresponding [arrow keys] (1) or (2) to select the corresponding digits and confi rm each one
with the [multifunction key] (4).
2. Enter the next 3 required digits in the same way.
3. Confi rm the last entry with [multifunction key] (3).
^ Following this, the LCD display shows the [Change PIN] dialog box.
20.3.4 Changing the PIN code
[ Change PIN ]
Enter the new PIN
Abort
1. Enter a new PIN and repeat.
2. Confi rm the last entry with [multifunction key].
^ After this, the LCD display shows the [Date dialog box].
20.3.5 Setting / changing the date
Enter the date and time correctly, because further programming depends on the date and time.
[ Enter the date ]
TT.MM.JJJJ
25.05.2012
Confirm
1. Use the corresponding [arrow keys] (1) or (2) to select the corresponding digits and confi rm each one
with the [multifunction key].
^ After confi rming, the LCD display shows [Time dialog box].
When entering the year (YYYY), it is only necessary to enter the last two digits because the fi rst
two 20XX are preset.
20.3.6 Setting / changing the time
[ Enter time ]
24 hour format
7:00
Abort Confirm
TT.MM.JJJJ 00:00
Uncalibrated
Press start key
Charge 93%
1. Use the corresponding [arrow keys] to select the corresponding digits and confi rm each one with the
[multifunction key].
^ Following this, the LCD display shows the [Uncalibrated] status box.
60 Robolinho© 3000
