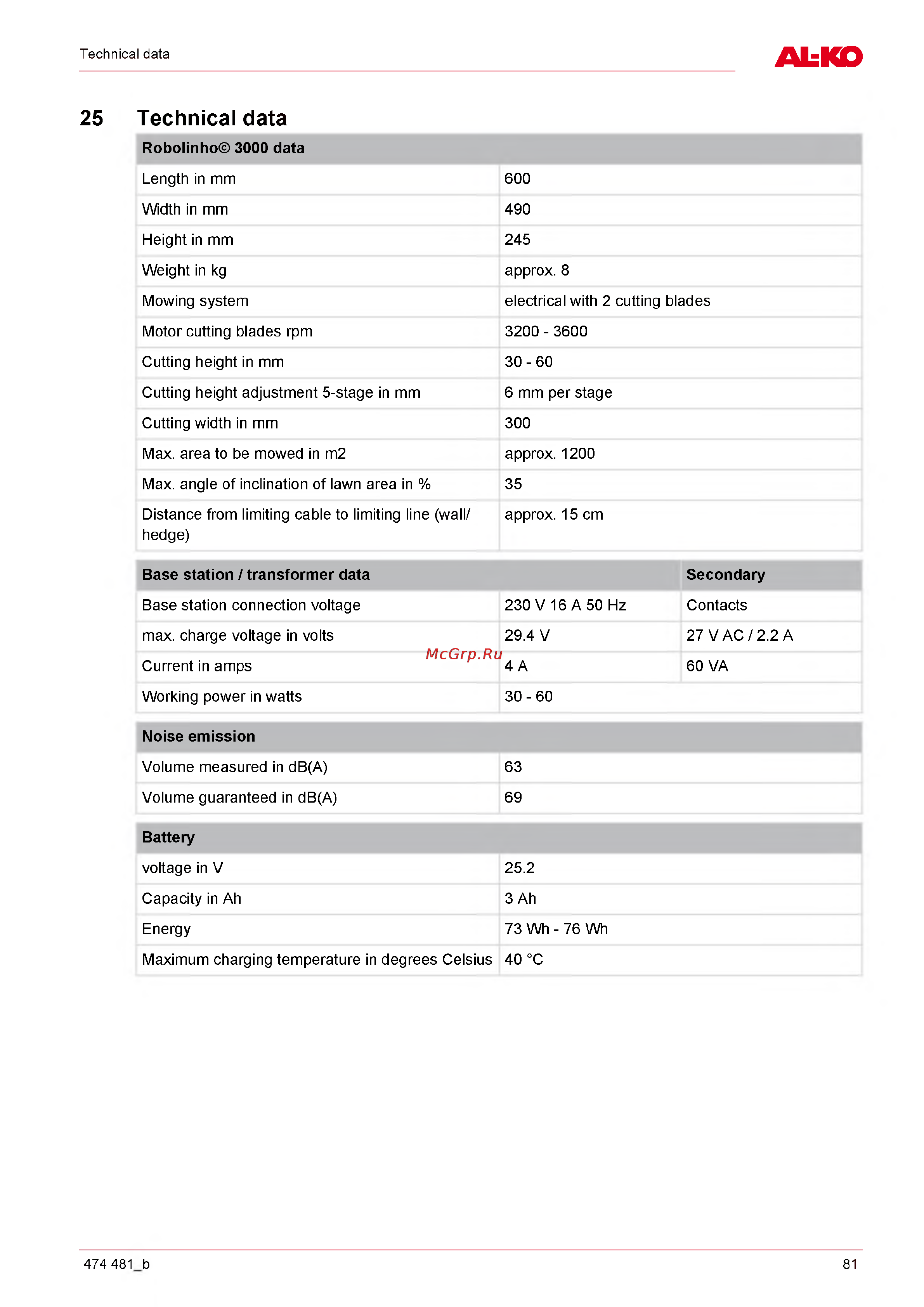

Technical data
ALKO
25 Technical data
Robolinho© 3000 data
Length in mm 600
Width in mm 490
Height in mm 245
Weight in kg approx. 8
Mowing system electrical with 2 cutting blades
Motor cutting blades rpm 3200 - 3600
Cutting height in mm 30 - 60
Cutting height adjustment 5-stage in mm 6 mm per stage
Cutting width in mm 300
Max. area to be mowed in m2 approx. 1200
Max. angle of inclination of lawn area in % 35
Distance from limiting cable to limiting line (wall/
hedge)
approx. 15 cm
Base station / transformer data
Secondary
Base station connection voltage 230 V 16 A 50 Hz Contacts
max. charge voltage in volts 29.4 V 27 V AC / 2.2 A
Current in amps 4 A 60 VA
Working power in watts 30 - 60
Noise emission
Volume measured in dB(A) 63
Volume guaranteed in dB(A) 69
Battery
voltage in V 25.2
Capacity in Ah 3 Ah
Energy 73 Wh - 76 Wh
Maximum charging temperature in degrees Celsius 40 °C
474 481 b 81
