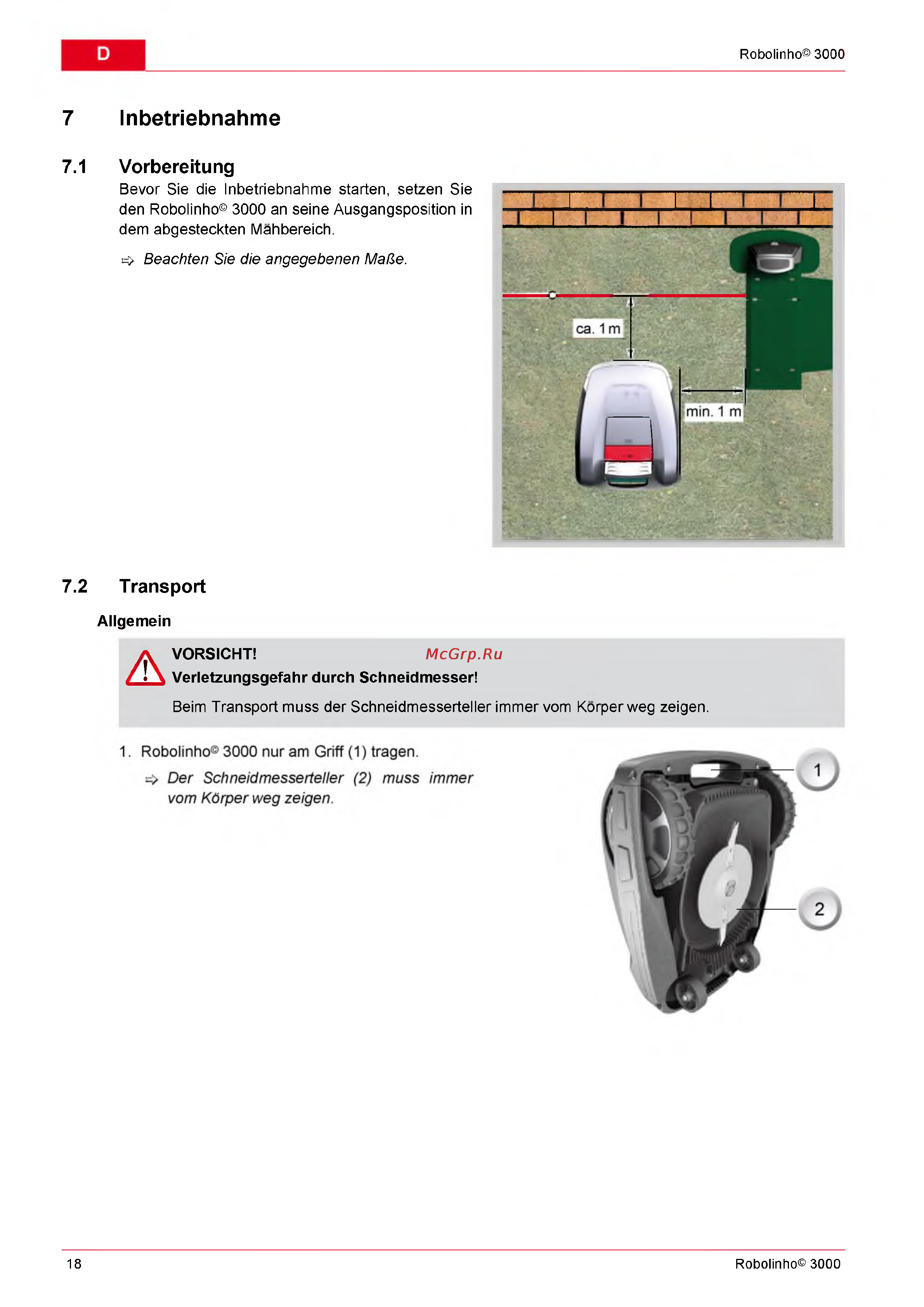

Al-Ko Robolinho 3000 [18/88] Inbetriebnahme
![Al-Ko Robolinho 3000 [18/88] Inbetriebnahme](/views2/1098162/page18/bg12.png)
Robolinho© 3000
7 Inbetriebnahme
7.1 Vorbereitung
Bevor Sie die Inbetriebnahme starten, setzen Sie
den Robolinho© 3000 an seine Ausgangsposition in
dem abgesteckten Mahbereich.
^ Beachten Sie die angegebenen MaRe.
7.2 Transport
Allgemein
A
VORSICHT!
- Verletzungsgefahr durch Schneidmesser!
Beim Transport muss der Schneidmesserteller immer vom Korper weg zeigen.
18 Robolinho© 3000
