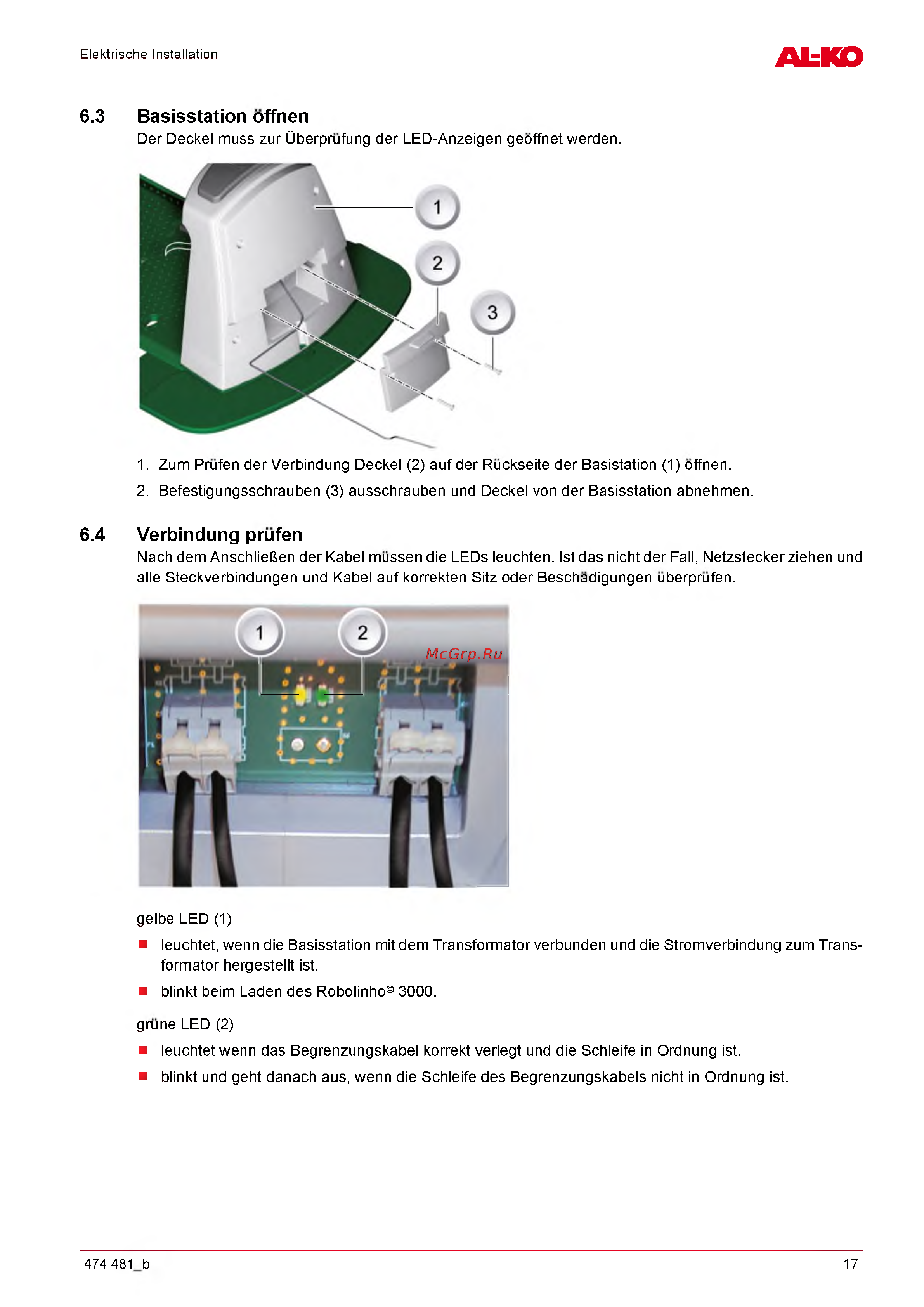

Elektrische Installation
ALKO
6.3 B asisstation offnen
Der Deckel muss zur Uberprufung der LED-Anzeigen geoffnet werden.
1. Zum Prufen der Verbindung Deckel (2) auf der Ruckseite der Basistation (1) offnen.
2. Befestigungsschrauben (3) ausschrauben und Deckel von der Basisstation abnehmen.
6.4 Verbindung prufen
Nach dem AnschlieGen der Kabel mussen die LEDs leuchten. Ist das nicht der Fall, Netzstecker ziehen und
alle Steckverbindungen und Kabel auf korrekten Sitz oder Beschadigungen uberprufen.
gelbe LED (1)
■ leuchtet, wenn die Basisstation mit dem Transformator verbunden und die Stromverbindung zum Trans
formator hergestellt ist.
■ blinkt beim Laden des Robolinho© 3000.
grune LED (2)
■ leuchtet wenn das Begrenzungskabel korrekt verlegt und die Schleife in Ordnung ist.
■ blinkt und geht danach aus, wenn die Schleife des Begrenzungskabels nicht in Ordnung ist.
474 481 b 17
