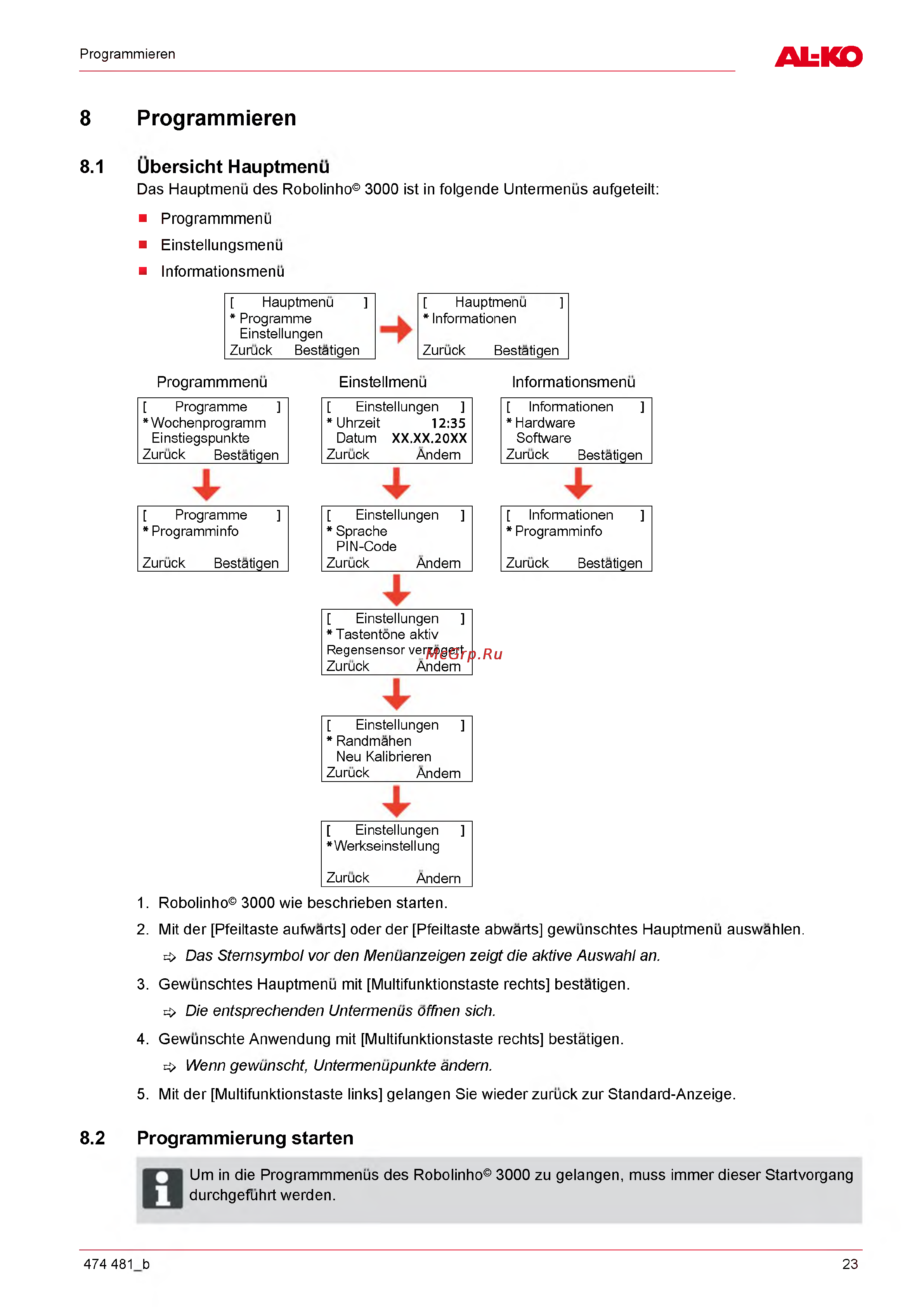

Programmieren
ALKO
8 Programmieren
8.1 U bersicht Hauptm enu
Das Hauptmenu des Robolinho© 3000 ist in folgende Untermenus aufgeteilt:
■ Programmmenu
■ Einstellungsmenu
■ Informationsmenu
[ Hauptmenu ]
* Informationen
Zuruck Bestatigen
Programmmenu Einstellmenu Informationsmenu
[ Hauptmenu ]
* Programme
Einstellungen
Zuruck Bestatigen
[ Programme ]
* Wochenprogramm
Einstiegspunkte
Zuruck Bestatigen
[ Einstellungen ]
* Uhrzeit 12:35
Datum XX.XX.20XX
Zuruck Andern
[ Informationen ]
* Hardware
Software
Zuruck Bestatigen
[ Programme ]
* Programminfo
Zuruck Bestatigen
[ Einstellungen ]
* Sprache
PIN-Code
Zuruck Andern
[ Informationen ]
* Programminfo
Zuruck Bestatigen
[ Einstellungen ]
* Tastentone aktiv
Regensensor verzogert
Zuruck Andern
[ Einstellungen ]
* Randmahen
Neu Kalibrieren
Zuruck Andern
[ Einstellungen ]
*Werkseinstellung
Zuruck Andern
1. Robolinho© 3000 wie beschrieben starten.
2. Mit der [Pfeiltaste aufwarts] oder der [Pfeiltaste abwarts] gewunschtes Hauptmenu auswahlen.
^ Das Sternsymbol vor den Menuanzeigen zeigt die aktive Auswahl an.
3. Gewunschtes Hauptmenu mit [Multifunktionstaste rechts] bestatigen.
^ Die entsprechenden Untermenus offnen sich.
4. Gewunschte Anwendung mit [Multifunktionstaste rechts] bestatigen.
^ Wenn gewunscht, Untermenupunkte andern.
5. Mit der [Multifunktionstaste links] gelangen Sie wieder zuruck zur Standard-Anzeige.
8.2 Program m ierung starten
U m in die Programmmenus des Robolinho© 3000 zu gelangen, muss immer dieser Startvorgang
durchgefuhrt werden.
474 481 b 23
