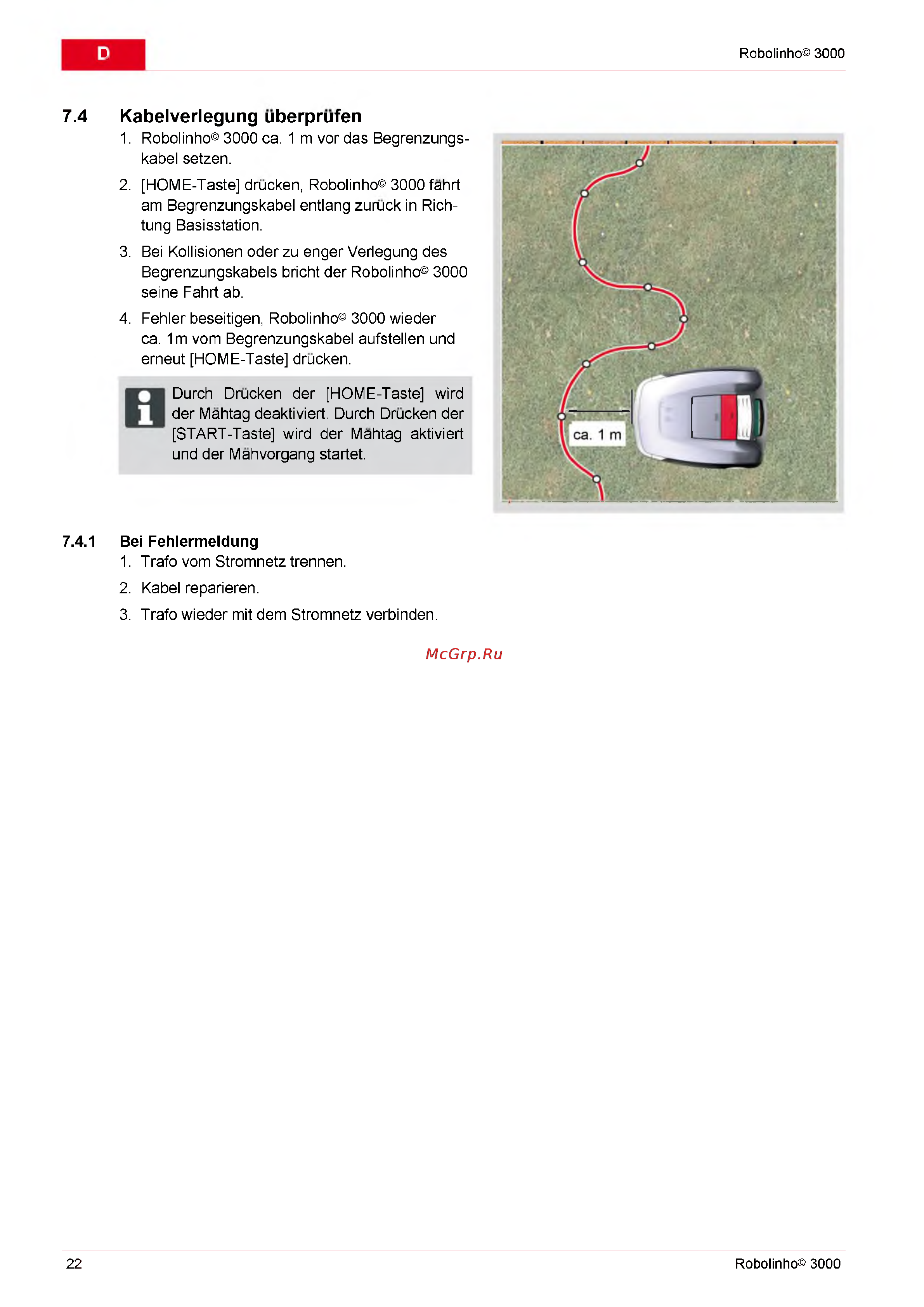

7.4 Kabelverlegung uberprufen
1. Robolinho© 3000 ca. 1 m vor das Begrenzungs
kabel setzen.
2. [HOME-Taste] drucken, Robolinho© 3000 fahrt
am Begrenzungskabel entlang zuruck in Rich-
tung Basisstation.
3. Bei Kollisionen oder zu enger Verlegung des
Begrenzungskabels bricht der Robolinho© 3000
seine Fahrt ab.
4. Fehler beseitigen, Robolinho© 3000 wieder
ca. 1m vom Begrenzungskabel aufstellen und
erneut [HOME-Taste] drucken.
Durch Drucken der [HOME-Taste] wird
der Mahtag deaktiviert. Durch Drucken der
[START-Taste] wird der Mahtag aktiviert
und der Mahvorgang startet.
7.4.1 Bei Fehlermeldung
1. Trafo vom Stromnetz trennen.
2. Kabel reparieren.
3. Trafo wieder mit dem Stromnetz verbinden.
22 Robolinho© 3000
