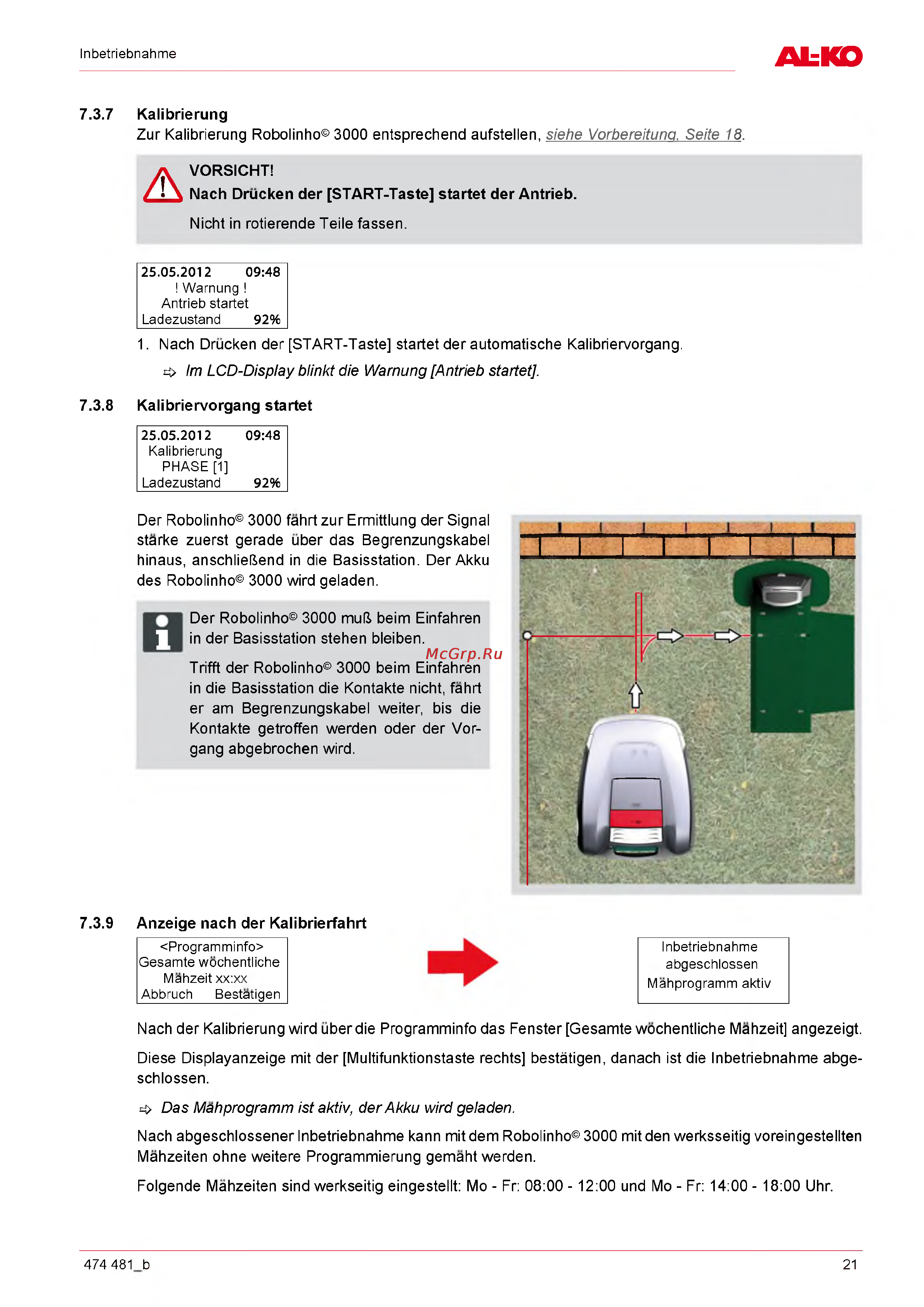

Inbetriebnahme
ALKO
7.3.7 Kalibrierung
Zur Kalibrierung Robolinho© 3000 entsprechend aufstellen, siehe Vorbereitung, Seite 18.
A
VORSICHT!
- Nach Drucken der [START-Taste] startet der Antrieb.
Nicht in rotierende Teile fassen.
25.05.2012 09:48
! Warnung !
Antrieb startet
Ladezustand 92%
1. Nach Drucken der [START-Taste] startet der automatische Kalibriervorgang.
^ Im LCD-Display blinkt die Warnung [Antrieb startet].
7.3.8 Kalibriervorgang startet
25.05.2012 09:48
Kalibrierung
PHASE [1]
Ladezustand 92%
Der Robolinho© 3000 fahrt zur Ermittlung der Signal
starke zuerst gerade uber das Begrenzungskabel
hinaus, anschliefcend in die Basisstation. Der Akku
des Robolinho© 3000 wird geladen.
D er Robolinho© 3000 mufc beim Einfahren
in der Basisstation stehen bleiben.
Trifft der Robolinho© 3000 beim Einfahren
in die Basisstation die Kontakte nicht, fahrt
er am Begrenzungskabel weiter, bis die
Kontakte getroffen werden oder der Vor-
gang abgebrochen wird.
1
7.3.9 Anzeige nach der Kalibrierfahrt
<Programminfo>
Gesamte wochentliche
Mahzeit xx:xx
Abbruch Bestatigen
Inbetriebnahme
abgeschlossen
Mahprogramm aktiv
Nach der Kalibrierung wird uber die Programminfo das Fenster [Gesamte wochentliche Mahzeit] angezeigt.
Diese Displayanzeige mit der [Multifunktionstaste rechts] bestatigen, danach ist die Inbetriebnahme abge
schlossen.
^ Das Mahprogramm ist aktiv, der Akku wird geladen.
Nach abgeschlossener Inbetriebnahme kann mit dem Robolinho© 3000 mit den werksseitig voreingestellten
Mahzeiten ohne weitere Programmierung gemaht werden.
Folgende Mahzeiten sind werkseitig eingestellt: Mo - Fr: 08:00 - 12:00 und Mo - Fr: 14:00 - 18:00 Uhr.
474 481 b 21
