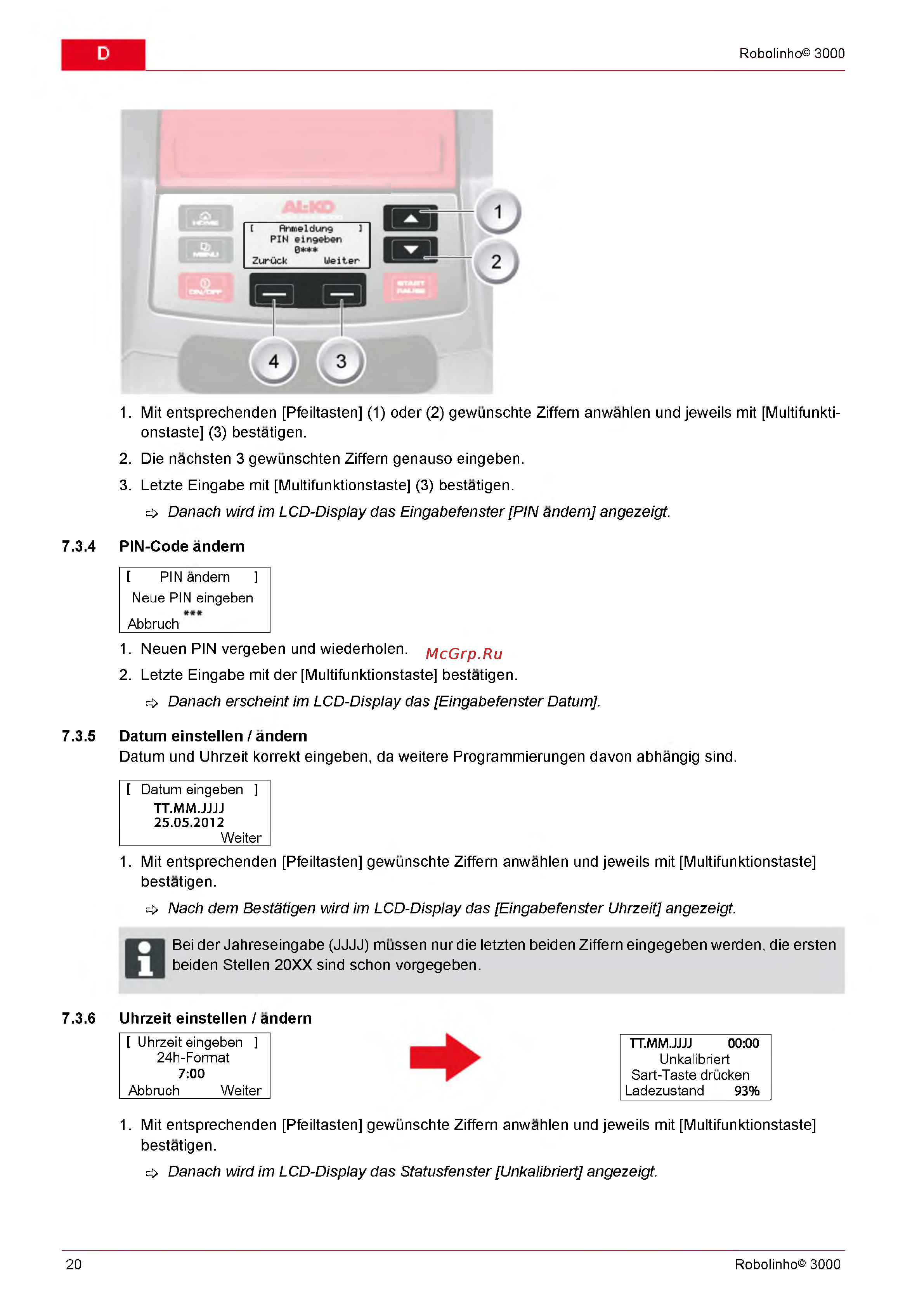

D
Robolinho© 3000
1. Mit entsprechenden [Pfeiltasten] (1) oder (2) gewunschte Ziffern anwahlen und jeweils mit [Multifunkti-
onstaste] (3) bestatigen.
2. Die nachsten 3 gewunschten Ziffern genauso eingeben.
3. Letzte Eingabe mit [Multifunktionstaste] (3) bestatigen.
^ Danach wird im LCD-Display das Eingabefenster [PIN andern] angezeigt.
7.3.4 PIN-Code andern
[ PIN andern ]
Neue PIN eingeben
Abbruch
1. Neuen PIN vergeben und wiederholen.
2. Letzte Eingabe mit der [Multifunktionstaste] bestatigen.
^ Danach erscheint im LCD-Display das [Eingabefenster Datum].
7.3.5 Datum einstellen / andern
Datum und Uhrzeit korrekt eingeben, da weitere Programmierungen davon abhangig sind.
[ Datum eingeben ]
TT.MM.JJJJ
25.05.2012
Weiter
1. Mit entsprechenden [Pfeiltasten] gewunschte Ziffern anwahlen und jeweils mit [Multifunktionstaste]
bestatigen.
^ Nach dem Bestatigen wird im LCD-Display das [Eingabefenster Uhrzeit] angezeigt.
B ei der Jahreseingabe (JJJJ) mussen nur die letzten beiden Ziffern eingegeben werden, die ersten
beiden Stellen 20XX sind schon vorgegeben.
7.3.6 Uhrzeit einstellen / andern
[ Uhrzeit eingeben ]
24h-Format
7:00
Abbruch Weiter
TT.MM.JJJJ 00:00
Unkalibriert
Sart-Taste drucken
Ladezustand 93%
1. Mit entsprechenden [Pfeiltasten] gewunschte Ziffern anwahlen und jeweils mit [Multifunktionstaste]
bestatigen.
^ Danach wird im LCD-Display das Statusfenster [Unkalibriert] angezeigt.
