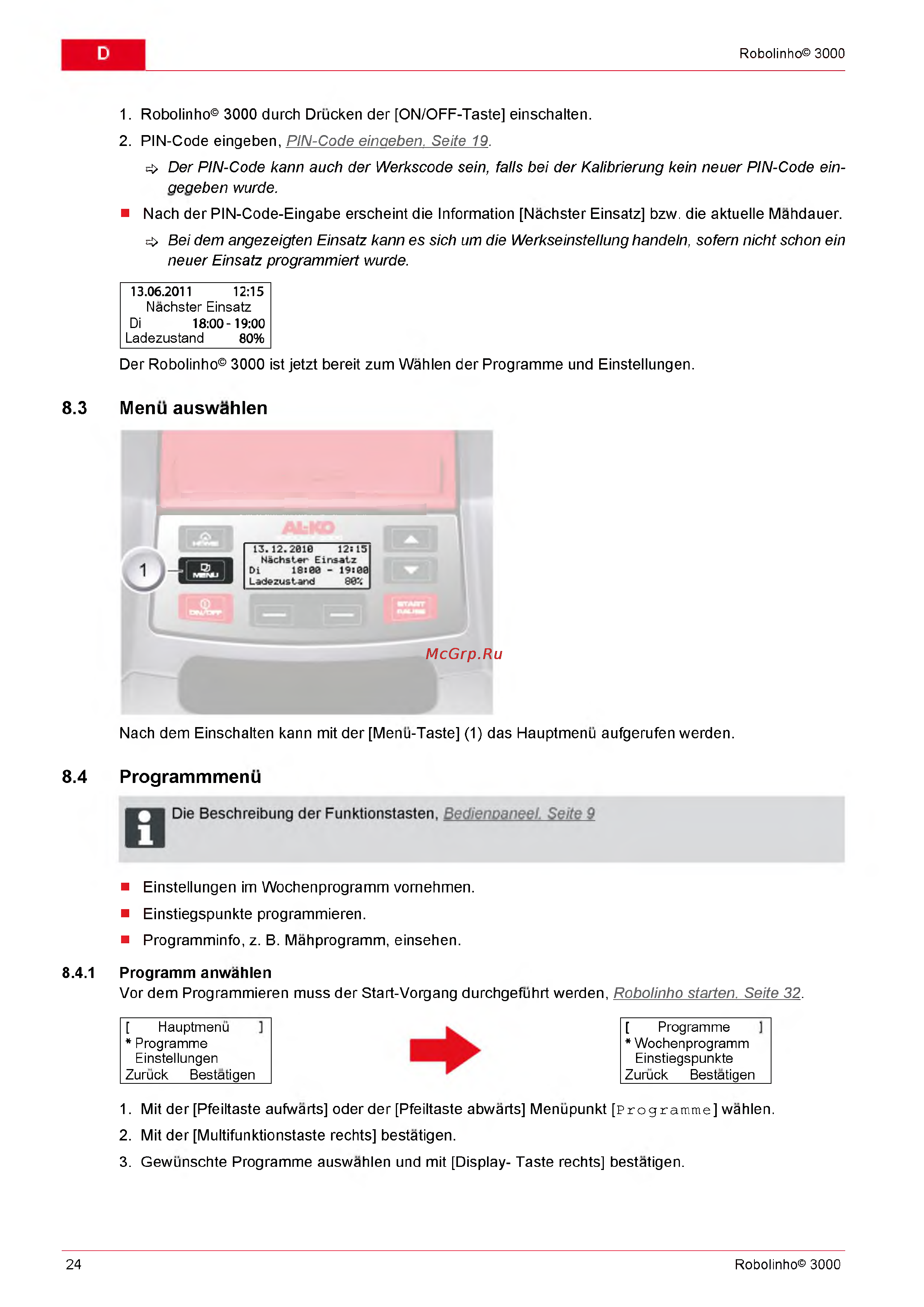

D
Robolinho© 3000
1. Robolinho© 3000 durch Drucken der [ON/OFF-Taste] einschalten.
2. PIN-Code eingeben, PIN-Code eingeben, Seite 19.
^ Der PIN-Code kann auch der Werkscode sein, falls bei der Kalibrierung kein neuer PIN-Code ein-
gegeben wurde.
■ Nach der PIN-Code-Eingabe erscheint die Information [Nachster Einsatz] bzw. die aktuelle Mahdauer.
^ Bei dem angezeigten Einsatz kann es sich um die Werkseinstellung handeln, sofern nicht schon ein
neuer Einsatz programmiert wurde.
13.06.2011 12:15
Nachster Einsatz
Di 18:00-19:00
Ladezustand 80%
Der Robolinho© 3000 ist jetzt bereit zum Wahlen der Programme und Einstellungen.
8.3 Menu ausw ahlen
Nach dem Einschalten kann mit der [Menu-Taste] (1) das Hauptmenu aufgerufen werden.
8.4 Program m menu
8.4.1
■ Einstellungen im Wochenprogramm vornehmen.
■ Einstiegspunkte programmieren.
■ Programminfo, z. B. Mahprogramm, einsehen.
Programm anwahlen
Vor dem Programmieren muss der Start-Vorgang durchgefuhrt werden, Robolinho starten, Seite 32.
[ Hauptmenu
* Programme
Einstellungen
Zuruck Bestatigen
[ Programme '
* Wochenprogramm
Einstiegspunkte
Zuruck Bestatigen
1. Mit der [Pfeiltaste aufwarts] oder der [Pfeiltaste abwarts] Menupunkt [Programme] wahlen.
2. Mit der [Multifunktionstaste rechts] bestatigen.
3. Gewunschte Programme auswahlen und mit [Display- Taste rechts] bestatigen.
24 Robolinho© 3000
