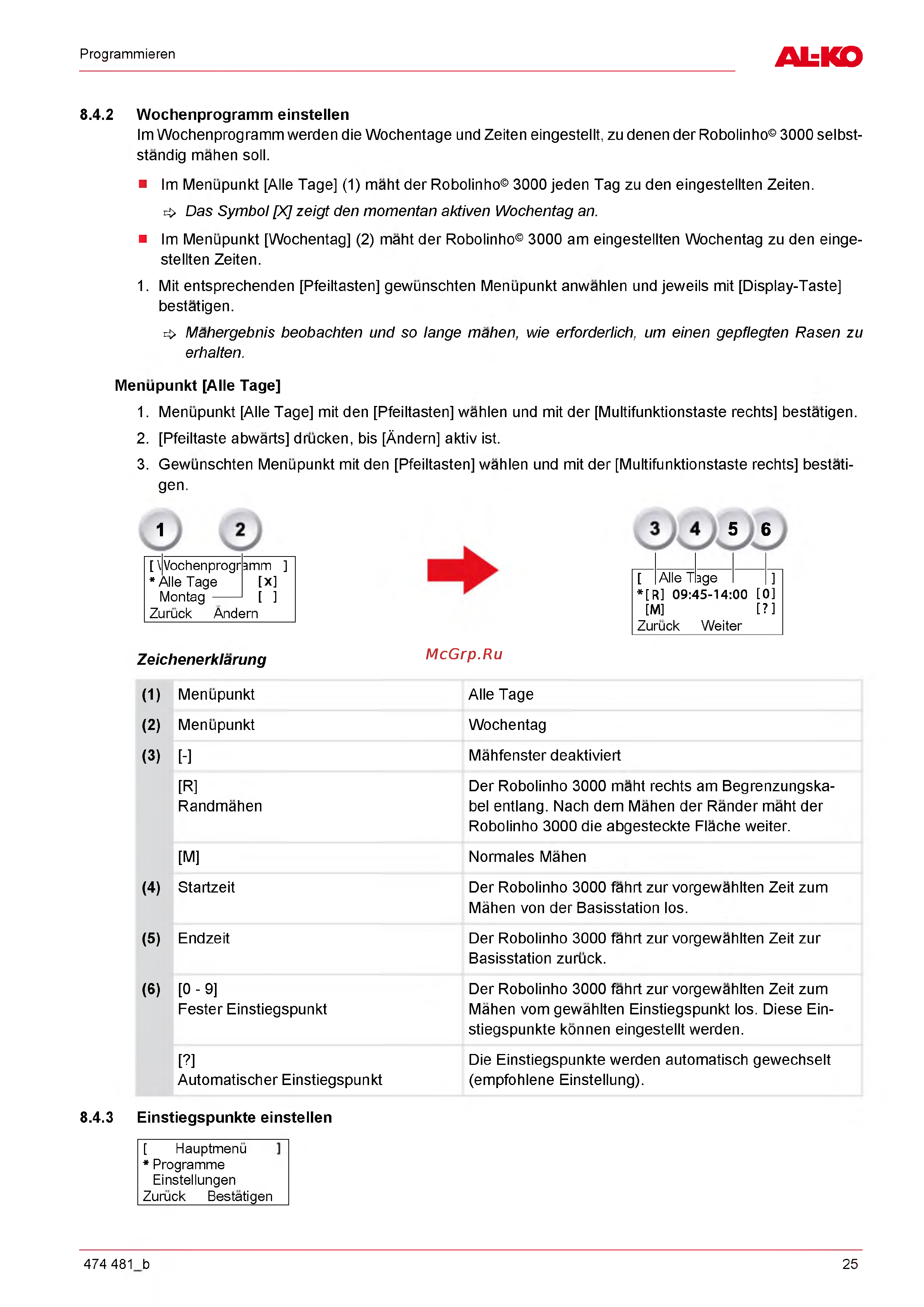

![Al-Ko Robolinho 3000 Инструкция по эксплуатации онлайн [25/88] 93025](/views2/1098162/page25/bg19.png)
Programmieren
ALKO
8.4.2 Wochenprogramm einstellen
Im Wochenprogramm werden die Wochentage und Zeiten eingestellt, zu denen der Robolinho© 3000 selbst-
standig mahen soll.
■ Im Menupunkt [Alle Tage] (1) maht der Robolinho© 3000 jeden Tag zu den eingestellten Zeiten.
^ Das Symbol [X] zeigt den momentan aktiven Wochentag an.
■ Im Menupunkt [Wochentag] (2) maht der Robolinho© 3000 am eingestellten Wochentag zu den einge
stellten Zeiten.
1. Mit entsprechenden [Pfeiltasten] gewunschten Menupunkt anwahlen und jeweils mit [Display-Taste]
bestatigen.
^ Mahergebnis beobachten und so lange mahen, wie erforderlich, um einen gepflegten Rasen zu
erhalten.
Menupunkt [Alle Tage]
1. Menupunkt [Alle Tage] mit den [Pfeiltasten] wahlen und mit der [Multifunktionstaste rechts] bestatigen.
2. [Pfeiltaste abwarts] drucken, bis [Andern] aktiv ist.
3. Gewunschten Menupunkt mit den [Pfeiltasten] wahlen und mit der [Multifunktionstaste rechts] bestati-
gen.
1
[ \|vochenprogr
amm ]
* Alle Tage
[X]
Montag
------
[ ]
Zuruck Andern
5 6
[ Alle T age ]
*[R] 09:45-14:00 [0]
[M] [?]
Zuruck Weiter
8.4.3
Zeichenerklarung
(1) Menupunkt
(2) Menupunkt
(3) [-]
[R]
Randmahen
[M]
(4) Startzeit
(5) Endzeit
(6) [0 - 9]
Fester Einstiegspunkt
[?]
Automatischer Einstiegspunkt
Einstiegspunkte einstellen
[ Hauptmenu
* Programme
Einstellungen
Zuruck Bestatigen
Alle Tage
Wochentag
Mahfenster deaktiviert
Der Robolinho 3000 maht rechts am Begrenzungska
bel entlang. Nach dem Mahen der Rander maht der
Robolinho 3000 die abgesteckte Flache weiter.
Normales Mahen
Der Robolinho 3000 fahrt zur vorgewahlten Zeit zum
Mahen von der Basisstation los.
Der Robolinho 3000 fahrt zur vorgewahlten Zeit zur
Basisstation zuruck.
Der Robolinho 3000 fahrt zur vorgewahlten Zeit zum
Mahen vom gewahlten Einstiegspunkt los. Diese Ein
stiegspunkte konnen eingestellt werden.
Die Einstiegspunkte werden automatisch gewechselt
(empfohlene Einstellung).
474 481 b 25
