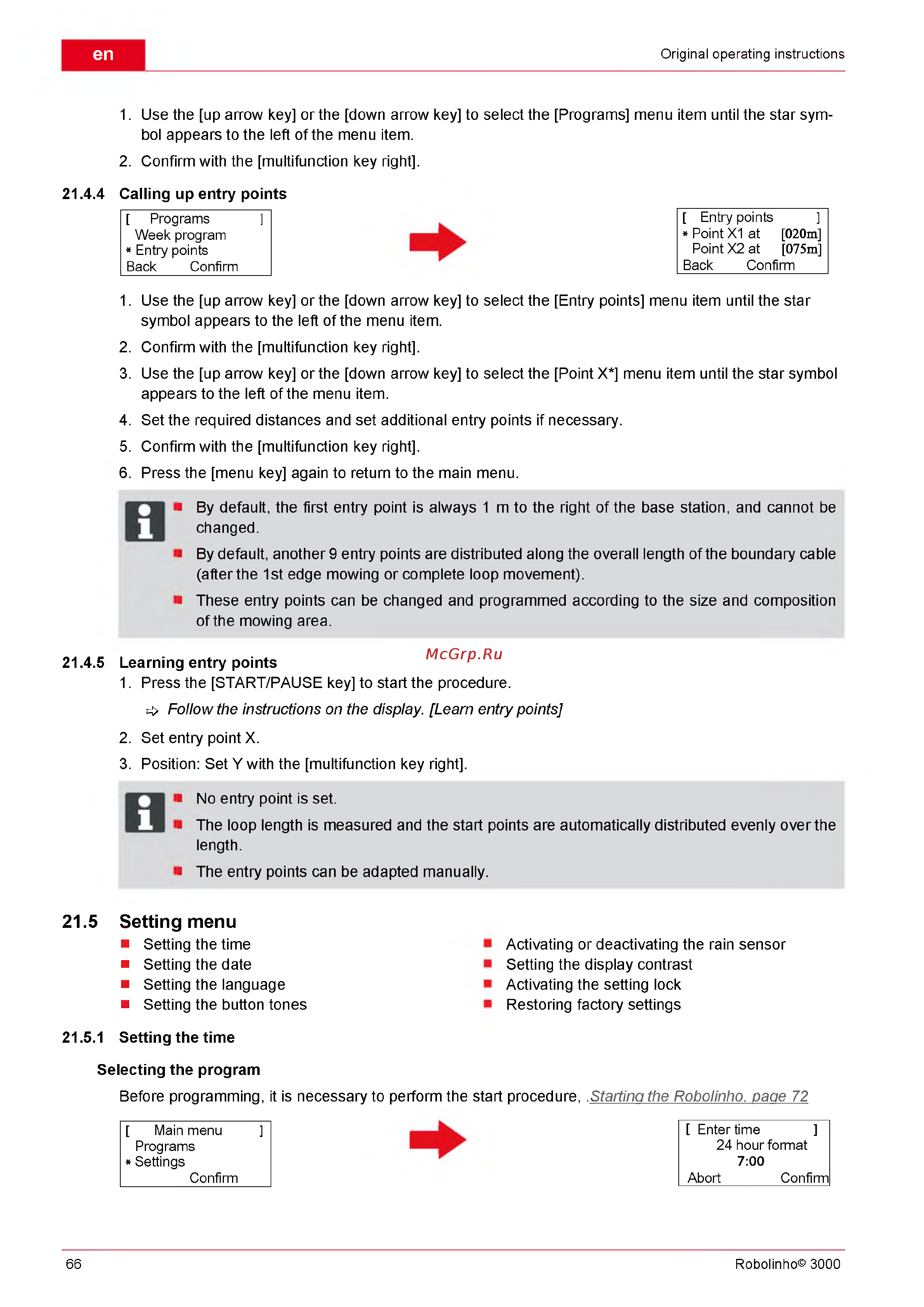

Original operating instructions
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item until the star sym-
bol appears to the left of the menu item.
2. Confirm with the [multifunction key right].
21.4.4 Calling up entry points
[ Programs
Week program
* Entry points
Back Confirm
]
[ Entry points ]
* Point X1 at [020m]
Point X2 at [075m]
Back Confirm
1. Use the [up arrow key] or the [down arrow key] to select the [Entry points] menu item until the star
symbol appears to the left of the menu item.
2. Confirm with the [multifunction key right].
3. Use the [up arrow key] or the [down arrow key] to select the [Point X*] menu item until the star symbol
appears to the left of the menu item.
4. Set the required distances and set additional entry points if necessary.
5. Confirm with the [multifunction key right].
6. Press the [menu key] again to return to the main menu.
■ By default, the first entry point is always 1 m to the right of the base station, and cannot be
changed.
■ By default, another 9 entry points are distributed along the overall length of the boundary cable
(after the 1st edge mowing or complete loop movement).
■ These entry points can be changed and programmed according to the size and composition
of the mowing area.
21.4.5 Learning entry points
1. Press the [START/PAUSE key] to start the procedure.
^ Follow the instructions on the display. [Learn entry points]
2. Set entry point X.
3. Position: Set Y with the [multifunction key right].
■ No entry point is set.
■ The loop length is measured and the start points are automatically distributed evenly over the
length.
■ The entry points can be adapted manually.
21.5 S etting menu
■ Setting the time
■ Setting the date
■ Setting the language
■ Setting the button tones
Activating or deactivating the rain sensor
Setting the display contrast
Activating the setting lock
Restoring factory settings
21.5.1 Setting the time
Selecting the program
Before programming, it is necessary to perform the start procedure, .Starting the Robolinho, page 72
[ Main menu
Programs
* Settings
Confirm
]
[ Enter time ]
24 hour format
7:00
Abort Confirm
66 Robolinho© 3000
