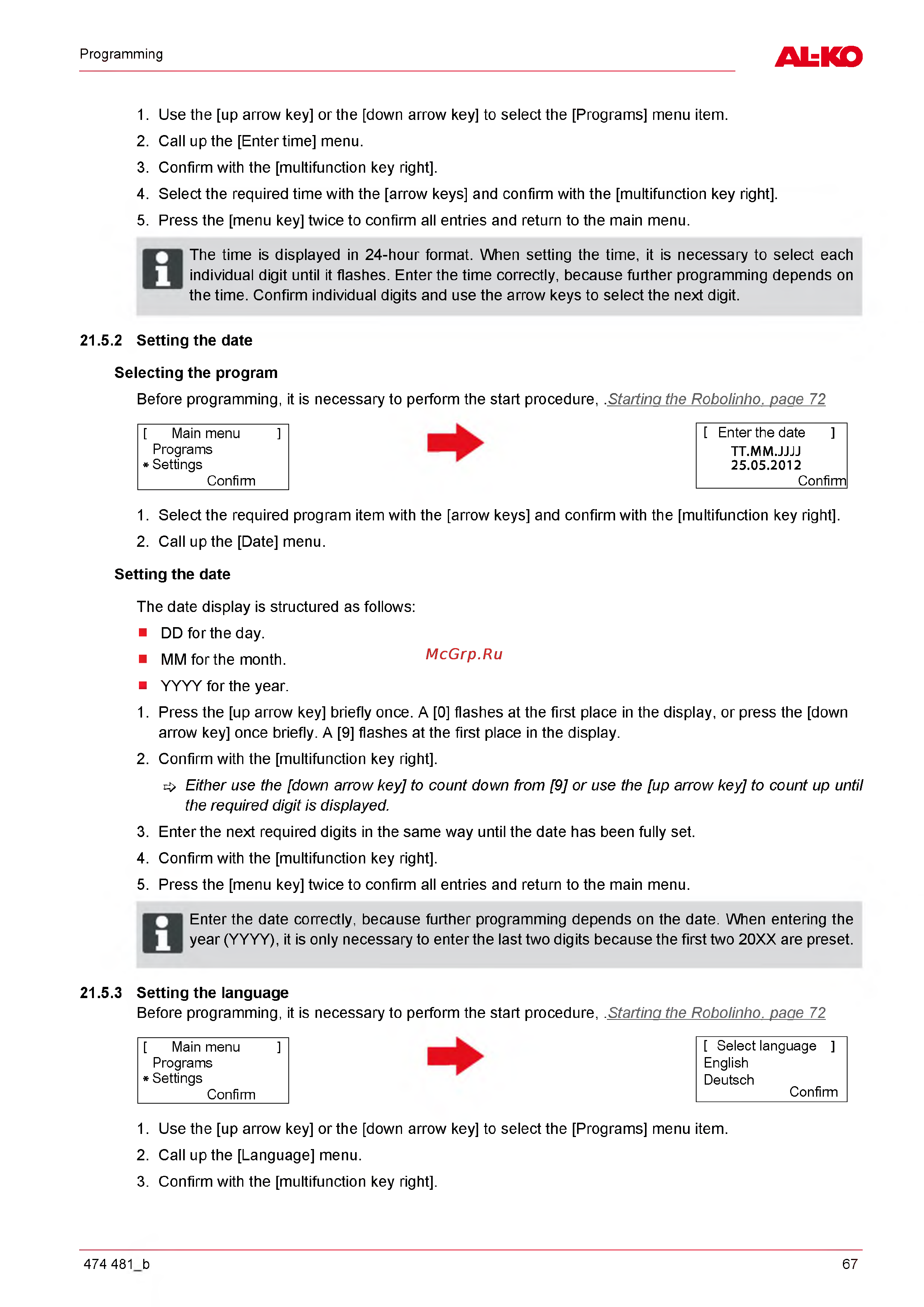

Programming
ALKO
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Call up the [Enter time] menu.
3. Confirm with the [multifunction key right].
4. Select the required time with the [arrow keys] and confirm with the [multifunction key right].
5. Press the [menu key] twice to confirm all entries and return to the main menu.
The time is displayed in 24-hour format. When setting the time, it is necessary to select each
individual digit until it flashes. Enter the time correctly, because further programming depends on
the time. Confirm individual digits and use the arrow keys to select the next digit.
21.5.2 Setting the date
Selecting the program
Before programming, it is necessary to perform the start procedure, .Starting the Robolinho, page 72
[ Main menu ]
[ Enter the date ]
Programs
TT.MM.JJJJ
* Settings
25.05.2012
Confirm Confirm
1. Select the required program item with the [arrow keys] and confirm with the [multifunction key right].
2. Call up the [Date] menu.
Setting the date
The date display is structured as follows:
■ DD for the day.
■ MM for the month.
■ YYYY for the year.
1. Press the [up arrow key] briefly once. A [0] flashes at the first place in the display, or press the [down
arrow key] once briefly. A [9] flashes at the first place in the display.
2. Confirm with the [multifunction key right].
^ Either use the [down arrow key] to count down from [9] or use the [up arrow key] to count up until
the required digit is displayed.
3. Enter the next required digits in the same way until the date has been fully set.
4. Confirm with the [multifunction key right].
5. Press the [menu key] twice to confirm all entries and return to the main menu.
E nter the date correctly, because further programming depends on the date. When entering the
year (YYYY), it is only necessary to enter the last two digits because the first two 20XX are preset.
21.5.3 Setting the language
Before programming, it is necessary to perform the start procedure, .Starting the Robolinho, page 72
[ Main menu ]
Programs
[ Select language ]
English
* Settings
Deutsch
Confirm
Confirm
1. Use the [up arrow key] or the [down arrow key] to select the [Programs] menu item.
2. Call up the [Language] menu.
3. Confirm with the [multifunction key right].
474 481 b 67
