Product description
ALKO

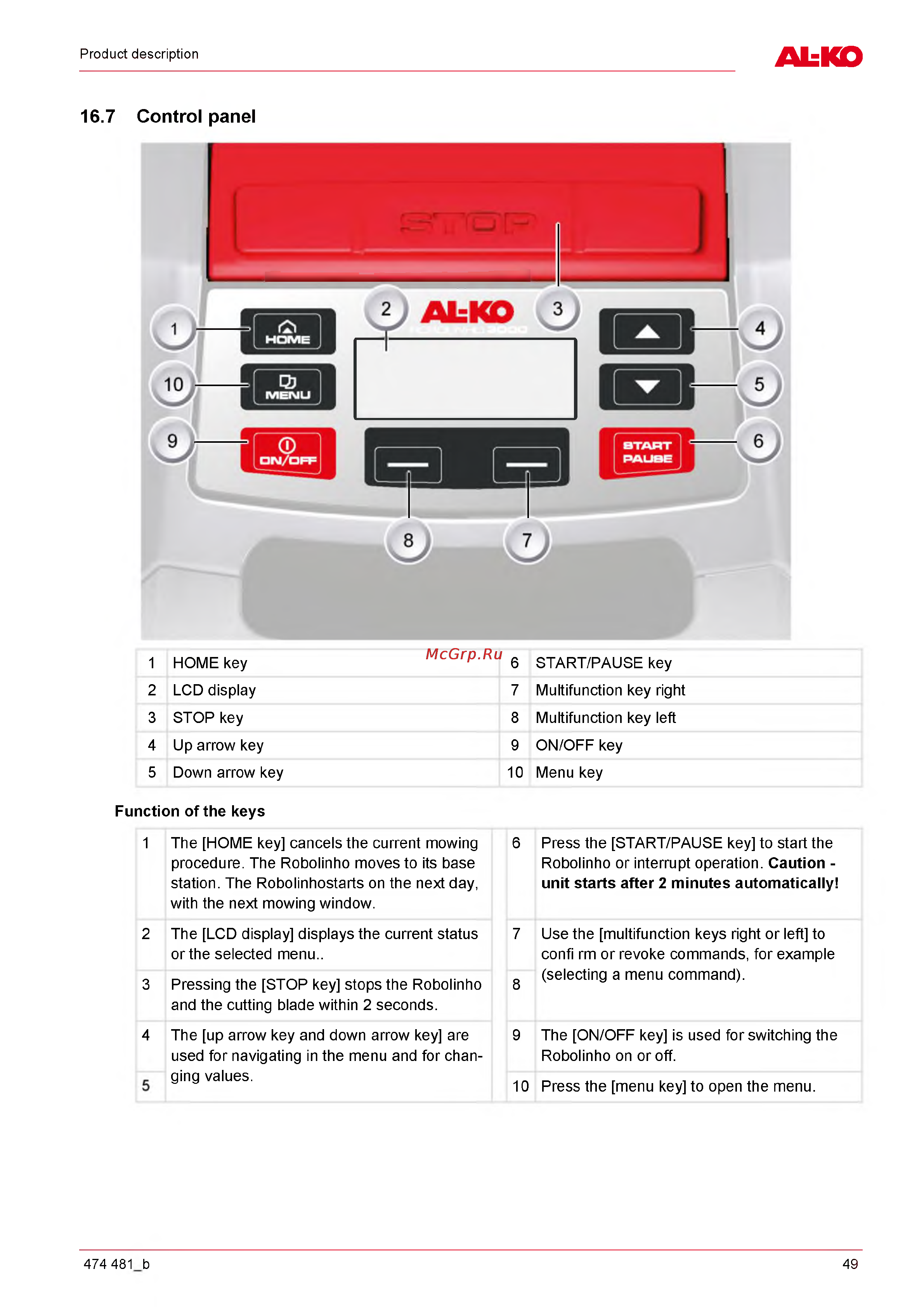

16.7 C ontrol panel
1 HOME key 6 START/PAUSE key
2 LCD display 7 Multifunction key right
3 STOP key 8 Multifunction key left
4 Up arrow key 9 ON/OFF key
5 Down arrow key 10 Menu key
Function of the keys
1 The [HOME key] cancels the current mowing
procedure. The Robolinho moves to its base
station. The Robolinhostarts on the next day,
with the next mowing window.
2 The [LCD display] displays the current status
or the selected menu..
3 Pressing the [STOP key] stops the Robolinho
and the cutting blade within 2 seconds.
4 The [up arrow key and down arrow key] are
used for navigating in the menu and for chan-
ging values.
6 Press the [START/PAUSE key] to start the
Robolinho or interrupt operation. Caution -
unit starts after 2 minutes automatically!
7 Use the [multifunction keys right or left] to
confi rm or revoke commands, for example
(selecting a menu command).
8
9 The [ON/OFF key] is used for switching the
Robolinho on or off.
10 Press the [menu key] to open the menu.
474 481 b 49
