en
Original operating instructions

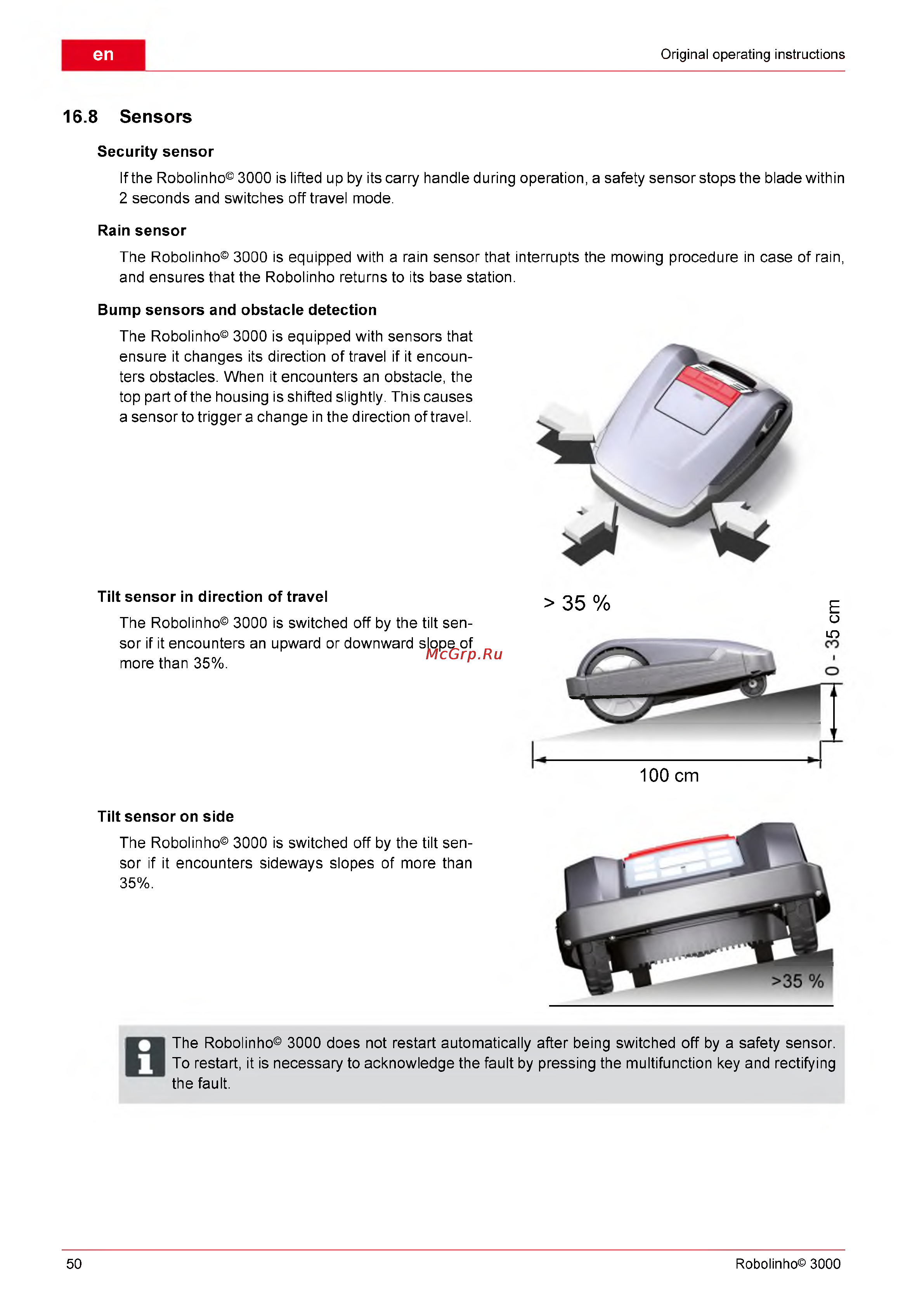

16.8 Sensors
Security sensor
If the Robolinho© 3000 is lifted up by its carry handle during operation, a safety sensor stops the blade within
2 seconds and switches off travel mode.
Rain sensor
The Robolinho© 3000 is equipped with a rain sensor that interrupts the mowing procedure in case of rain,
and ensures that the Robolinho returns to its base station.
Bump sensors and obstacle detection
The Robolinho© 3000 is equipped with sensors that
ensure it changes its direction of travel if it encoun-
ters obstacles. When it encounters an obstacle, the
top part of the housing is shifted slightly. This causes
a sensor to trigger a change in the direction of travel.
Tilt sensor in direction of travel
The Robolinho© 3000 is switched off by the tilt sen
sor if it encounters an upward or downward slope of
more than 35%.
> 35 %
o
lO
E
100 cm
Tilt sensor on side
The Robolinho© 3000 is switched off by the tilt sen
sor if it encounters sideways slopes of more than
35%.
The Robolinho© 3000 does not restart automatically after being switched off by a safety sensor.
To restart, it is necessary to acknowledge the fault by pressing the multifunction key and rectifying
the fault.
50 Robolinho© 3000
