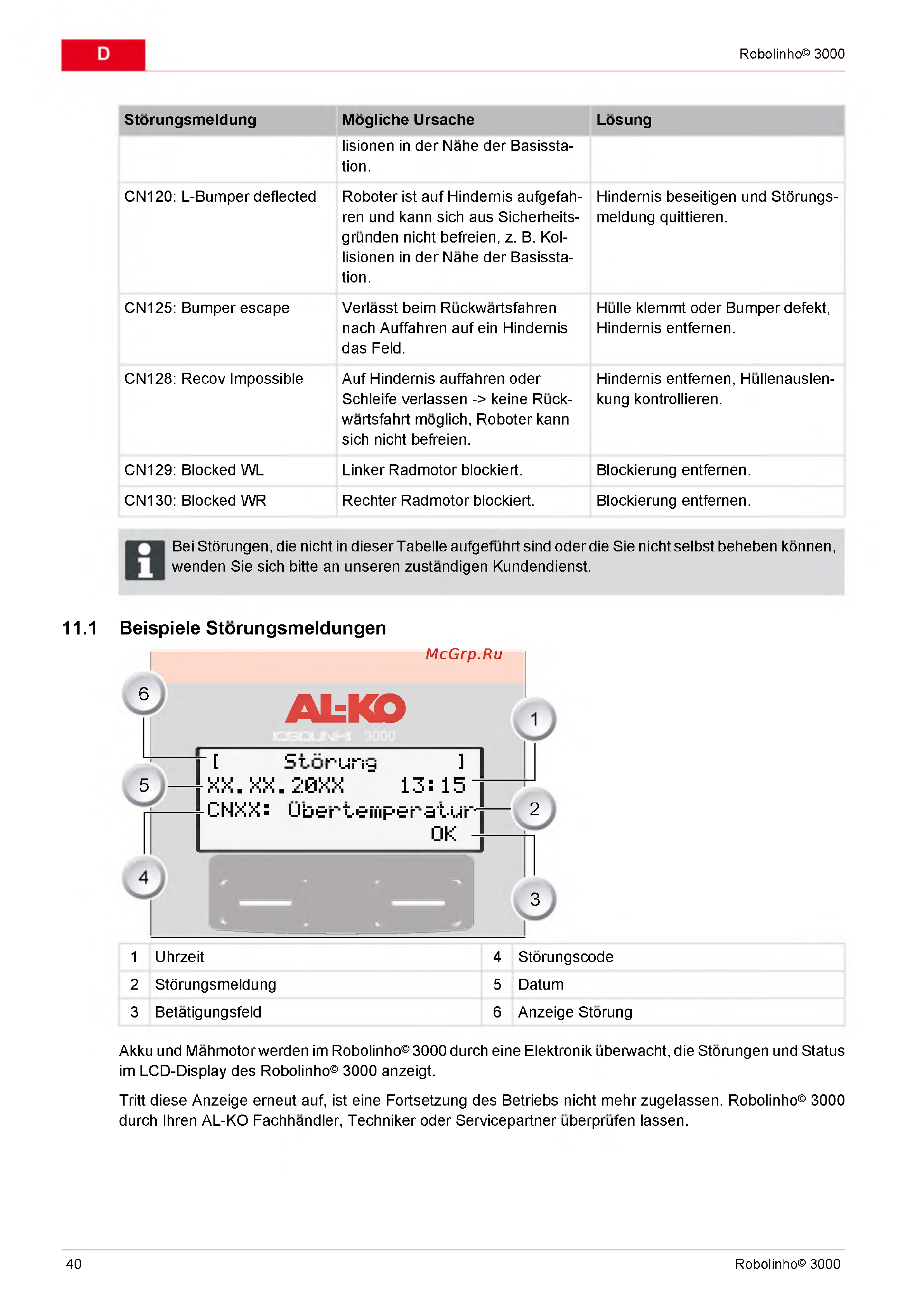

Robolinho© 3000
Storungsmeldung
CN120: L-Bumper deflected
CN125: Bumper escape
CN128: Recov Impossible
CN129: Blocked WL
CN130: Blocked WR
Mogliche Ursache
lisionen in der Nahe der Basissta
tion.
Roboter ist auf Hindernis aufgefah-
ren und kann sich aus Sicherheits-
grunden nicht befreien, z. B. Kol-
lisionen in der Nahe der Basissta
tion.
Verlasst beim Ruckwartsfahren
nach Auffahren auf ein Hindernis
das Feld.
Auf Hindernis auffahren oder
Schleife verlassen -> keine Ruck-
wartsfahrt moglich, Roboter kann
sich nicht befreien.
Linker Radmotor blockiert.
Rechter Radmotor blockiert.
Losung
Hindernis beseitigen und Storungs
meldung quittieren.
Hulle klemmt oder Bumper defekt,
Hindernis entfernen.
Hindernis entfernen, Hullenauslen-
kung kontrollieren.
Blockierung entfernen.
Blockierung entfernen.
B ei Storungen, die nicht in dieser Tabelle aufgefuhrt sind oder die Sie nicht selbst beheben konnen,
wenden Sie sich bitte an unseren zustandigen Kundendienst.
11.1 Beispiele S torungsm eldungen
6
ALKO
5
[
C T fc- « ■ ■ k~. . 1
i K A i r - t i
XX.XX.20XX " 13:15
CHXX S U b 0 r" t- 'E1 rfi p 0 i-" -Ei 'L- U r"
OK
J
— 2
3
1 Uhrzeit 4 Storungscode
2 Storungsmeldung 5 Datum
3 Betatigungsfeld 6 Anzeige Storung
Akku und Mahmotor werden im Robolinho© 3000 durch eine Elektronik uberwacht, die Storungen und Status
im LCD-Display des Robolinho© 3000 anzeigt.
Tritt diese Anzeige erneut auf, ist eine Fortsetzung des Betriebs nicht mehr zugelassen. Robolinho© 3000
durch Ihren AL-KO Fachhandler, Techniker oder Servicepartner uberprufen lassen.
40 Robolinho© 3000
