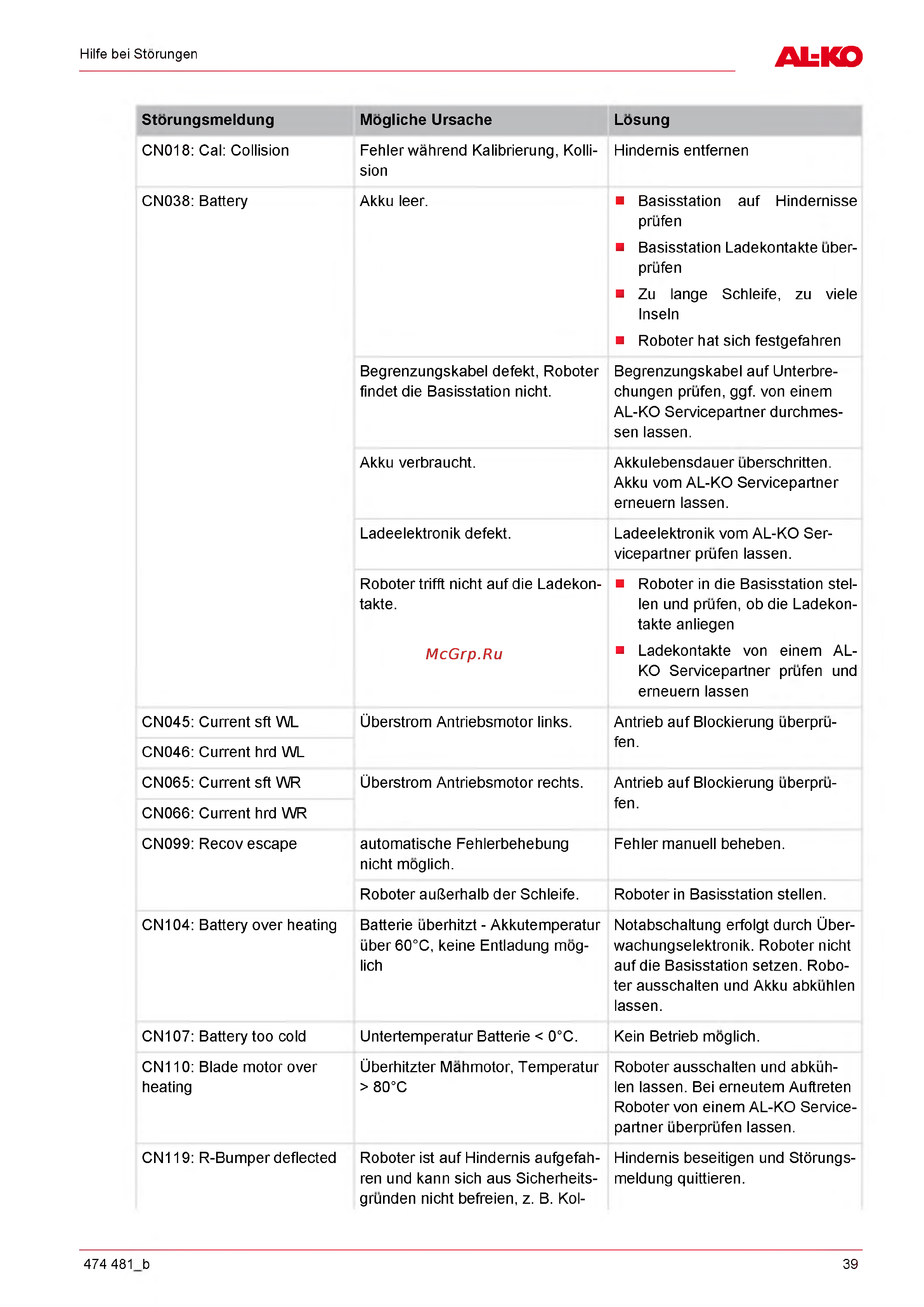

Hilfe bei Storungen
ALKO
Storungsmeldung Mogliche Ursache Losung
CN018: Cal: Collision Fehler wahrend Kalibrierung, Kolli-
sion
Hindernis entfernen
CN038: Battery Akku leer. ■ Basisstation auf Hindernisse
prufen
■ Basisstation Ladekontakte uber
prufen
■ Zu lange Schleife, zu viele
Inseln
■ Roboter hat sich festgefahren
Begrenzungskabel defekt, Roboter Begrenzungskabel auf Unterbre-
findet die Basisstation nicht. chungen prufen, ggf. von einem
AL-KO Servicepartner durchmes-
sen lassen.
Akku verbraucht. Akkulebensdauer uberschritten.
Akku vom AL-KO Servicepartner
erneuern lassen.
Ladeelektronik defekt. Ladeelektronik vom AL-KO Ser
vicepartner prufen lassen.
Roboter trifft nicht auf die Ladekon- ■ Roboter in die Basisstation stel-
takte. len und prufen, ob die Ladekon-
takte anliegen
■ Ladekontakte von einem AL
KO Servicepartner prufen und
erneuern lassen
CN045: Current sft WL Uberstrom Antriebsmotor links. Antrieb auf Blockierung uberpru-
CN046: Current hrd WL
fen.
CN065: Current sft WR Uberstrom Antriebsmotor rechts. Antrieb auf Blockierung uberpru-
CN066: Current hrd WR
fen.
CN099: Recov escape automatische Fehlerbehebung
nicht moglich.
Fehler manuell beheben.
Roboter auGerhalb der Schleife. Roboter in Basisstation stellen.
CN104: Battery over heating Batterie uberhitzt - Akkutemperatur Notabschaltung erfolgt durch Uber-
uber 60°C, keine Entladung mog wachungselektronik. Roboter nicht
lich auf die Basisstation setzen. Robo
ter ausschalten und Akku abkuhlen
lassen.
CN107: Battery too cold Untertemperatur Batterie < 0°C. Kein Betrieb moglich.
CN110: Blade motor over Uberhitzter Mahmotor, Temperatur Roboter ausschalten und abkuh-
heating > 80°C len lassen. Bei erneutem Auftreten
Roboter von einem AL-KO Service
partner uberprufen lassen.
CN119: R-Bumper deflected Roboter ist auf Hindernis aufgefah- Hindernis beseitigen und Storungs
ren und kann sich aus Sicherheits-
grunden nicht befreien, z. B. Kol-
meldung quittieren.
474 481 b 39
