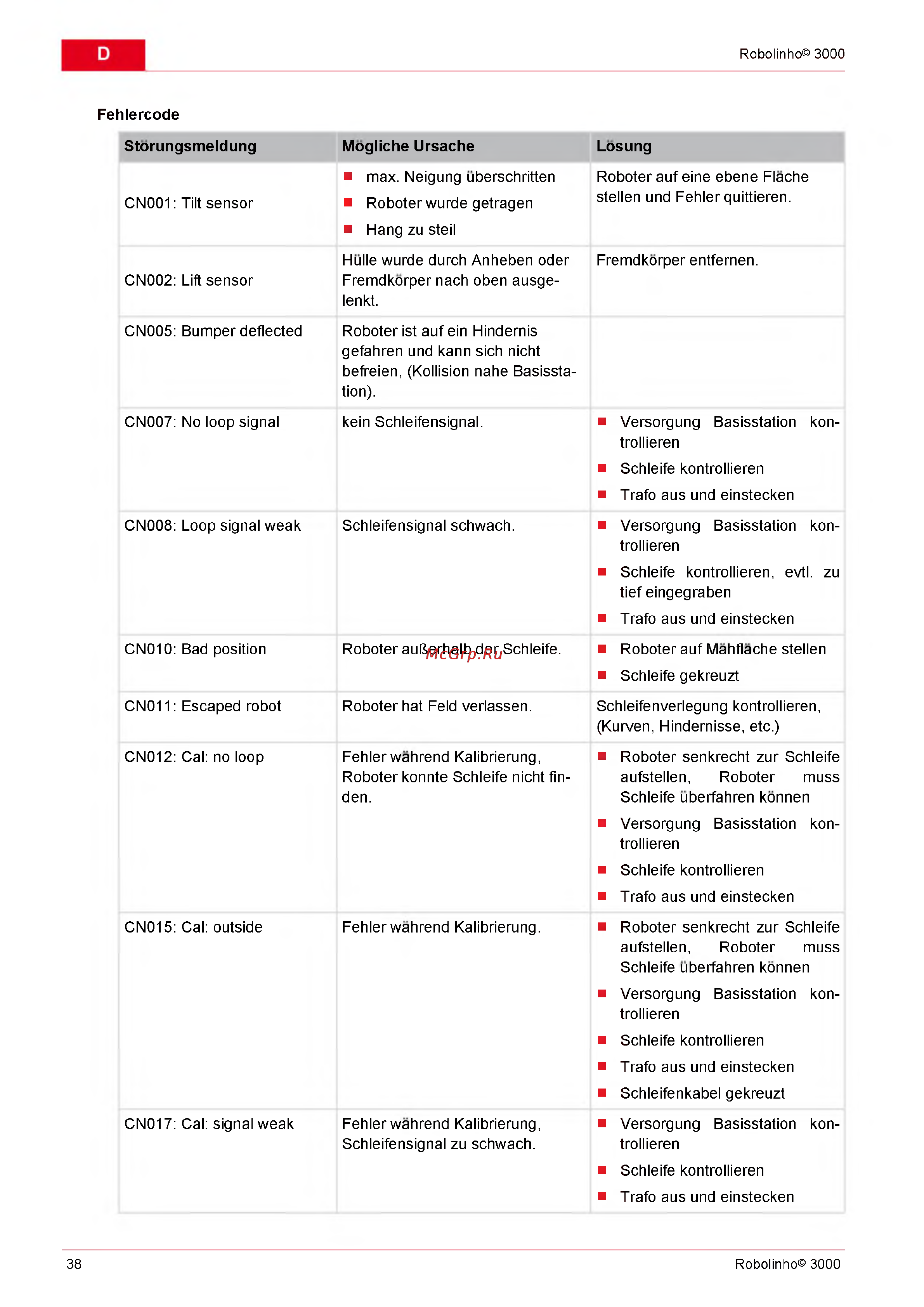

Fehlercode
Storungsmeldung
CN001: Tilt sensor
CN002: Lift sensor
CN005: Bumper deflected
CN007: No loop signal
CN008: Loop signal weak
CN010: Bad position
CN011: Escaped robot
CN012: Cal: no loop
CN015: Cal: outside
CN017: Cal: signal weak
Robolinho© 3000
Losung
Roboter auf eine ebene Flache
stellen und Fehler quittieren.
Fremdkorper entfernen.
Mogliche Ursache
■ max. Neigung uberschritten
■ Roboter wurde getragen
■ Hang zu steil
Hulle wurde durch Anheben oder
Fremdkorper nach oben ausge-
lenkt.
Roboter ist auf ein Hindernis
gefahren und kann sich nicht
befreien, (Kollision nahe Basissta
tion).
kein Schleifensignal.
Schleifensignal schwach.
Roboter auGerhalb der Schleife.
Roboter hat Feld verlassen.
Fehler wahrend Kalibrierung,
Roboter konnte Schleife nicht fin-
den.
Fehler wahrend Kalibrierung.
Fehler wahrend Kalibrierung,
Schleifensignal zu schwach.
■ Versorgung Basisstation kon-
trollieren
■ Schleife kontrollieren
■ Trafo aus und einstecken
■ Versorgung Basisstation kon
trollieren
■ Schleife kontrollieren, evtl. zu
tief eingegraben
■ Trafo aus und einstecken
■ Roboter auf Mahflache stellen
■ Schleife gekreuzt
Schleifenverlegung kontrollieren,
(Kurven, Hindernisse, etc.)
■ Roboter senkrecht zur Schleife
aufstellen, Roboter muss
Schleife uberfahren konnen
■ Versorgung Basisstation kon
trollieren
■ Schleife kontrollieren
■ Trafo aus und einstecken
■ Roboter senkrecht zur Schleife
aufstellen, Roboter muss
Schleife uberfahren konnen
■ Versorgung Basisstation kon
trollieren
■ Schleife kontrollieren
■ Trafo aus und einstecken
■ Schleifenkabel gekreuzt
■ Versorgung Basisstation kon
trollieren
■ Schleife kontrollieren
■ Trafo aus und einstecken
38 Robolinho© 3000
