J
Robolinho© 3000

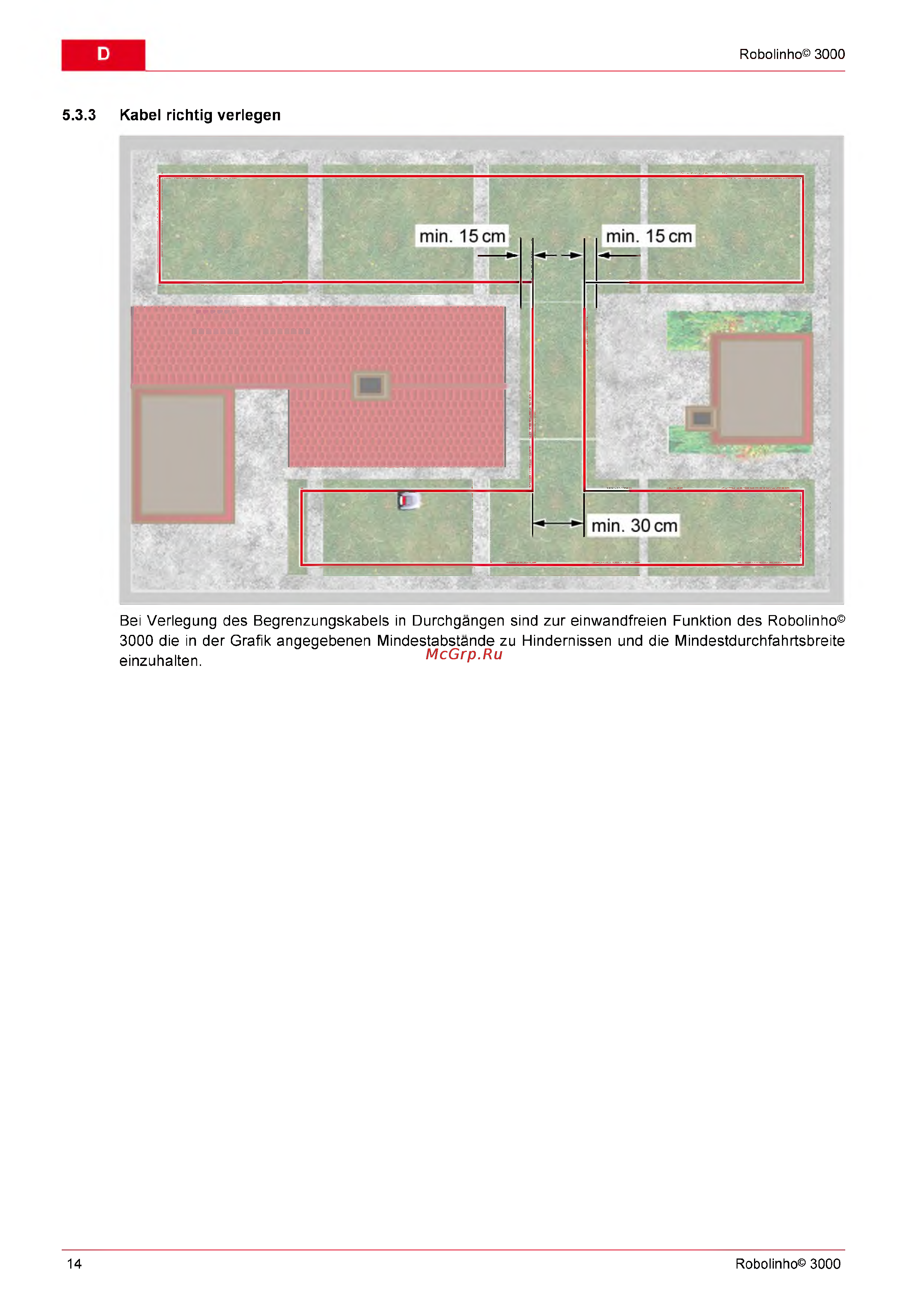

5.3.3 Kabel richtig verlegen
Bei Verlegung des Begrenzungskabels in Durchgangen sind zur einwandfreien Funktion des Robolinho©
3000 die in der Grafik angegebenen Mindestabstande zu Hindernissen und die Mindestdurchfahrtsbreite
einzuhalten.
14 Robolinho© 3000
