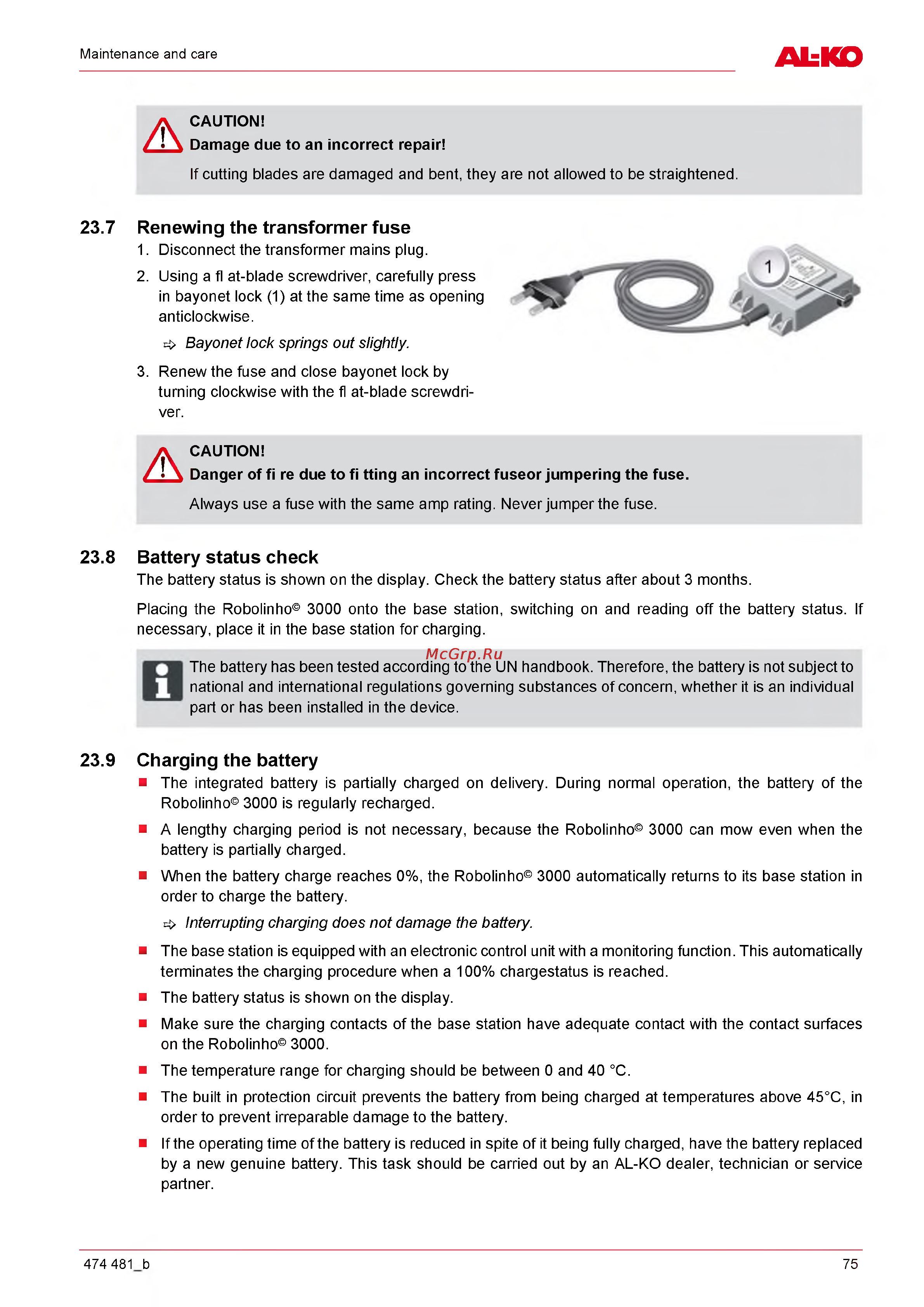

Maintenance and care
ALKO
A
CAUTION!
Damage due to an incorrect repair!
If cutting blades are damaged and bent, they are not allowed to be straightened.
23.7 Renewing the transform er fuse
1. Disconnect the transformer mains plug.
2. Using a fl at-blade screwdriver, carefully press
in bayonet lock (1) at the same time as opening
anticlockwise.
^ Bayonet lock springs out slightly.
3. Renew the fuse and close bayonet lock by
turning clockwise with the fl at-blade screwdri-
ver.
A
CAUTION!
- Danger of fi re due to fi tting an incorrect fuseor jumpering the fuse.
Always use a fuse with the same amp rating. Never jumper the fuse.
23.8 Battery statu s check
The battery status is shown on the display. Check the battery status after about 3 months.
Placing the Robolinho© 3000 onto the base station, switching on and reading off the battery status. If
necessary, place it in the base station for charging.
T he battery has been tested according to the UN handbook. Therefore, the battery is not subject to
national and international regulations governing substances of concern, whether it is an individual
part or has been installed in the device.
23.9 C harging the battery
■ The integrated battery is partially charged on delivery. During normal operation, the battery of the
Robolinho© 3000 is regularly recharged.
■ A lengthy charging period is not necessary, because the Robolinho© 3000 can mow even when the
battery is partially charged.
■ When the battery charge reaches 0%, the Robolinho© 3000 automatically returns to its base station in
order to charge the battery.
^ Interrupting charging does not damage the battery.
■ The base station is equipped with an electronic control unit with a monitoring function. This automatically
terminates the charging procedure when a 100% chargestatus is reached.
■ The battery status is shown on the display.
■ Make sure the charging contacts of the base station have adequate contact with the contact surfaces
on the Robolinho© 3000.
■ The temperature range for charging should be between 0 and 40 °C.
■ The built in protection circuit prevents the battery from being charged at temperatures above 45°C, in
order to prevent irreparable damage to the battery.
■ If the operating time of the battery is reduced in spite of it being fully charged, have the battery replaced
by a new genuine battery. This task should be carried out by an AL-KO dealer, technician or service
partner.
474 481 b 75
