3-56 FUEL SYSTEM (DFI)

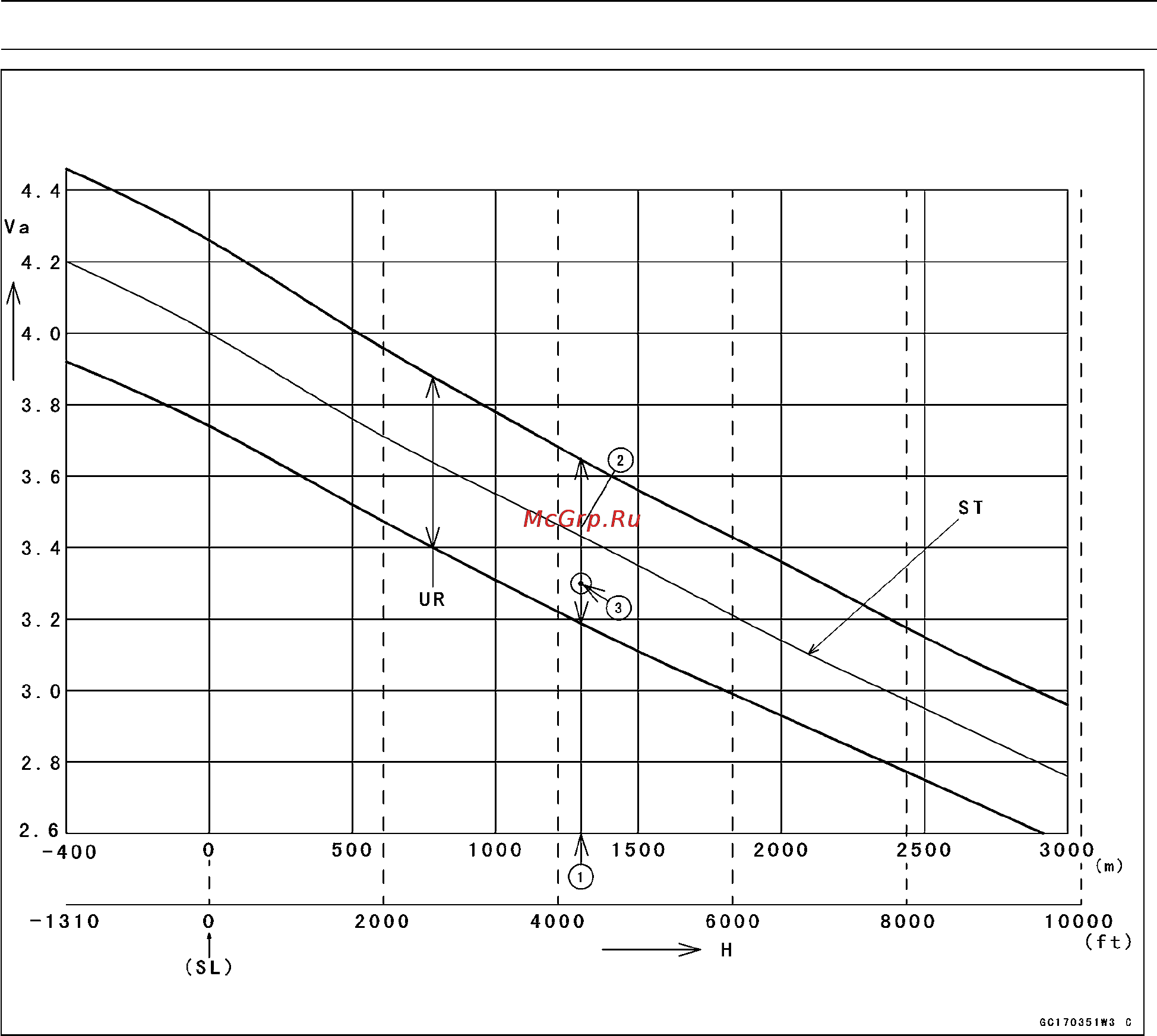

Atmospheric Pressure Sensor (Service Code 15)
Va: Atmospheric Pressure Sensor Output Voltage (v)
H: Altitude (m or feet)
SL: Sea Level (0 m)
ST: Standard of Sensor Output Voltage (v)
UR: Usable Range of Sensor Output Voltage (v)
