16-72 ELECTRICAL SYSTEM
Meter, Gauge

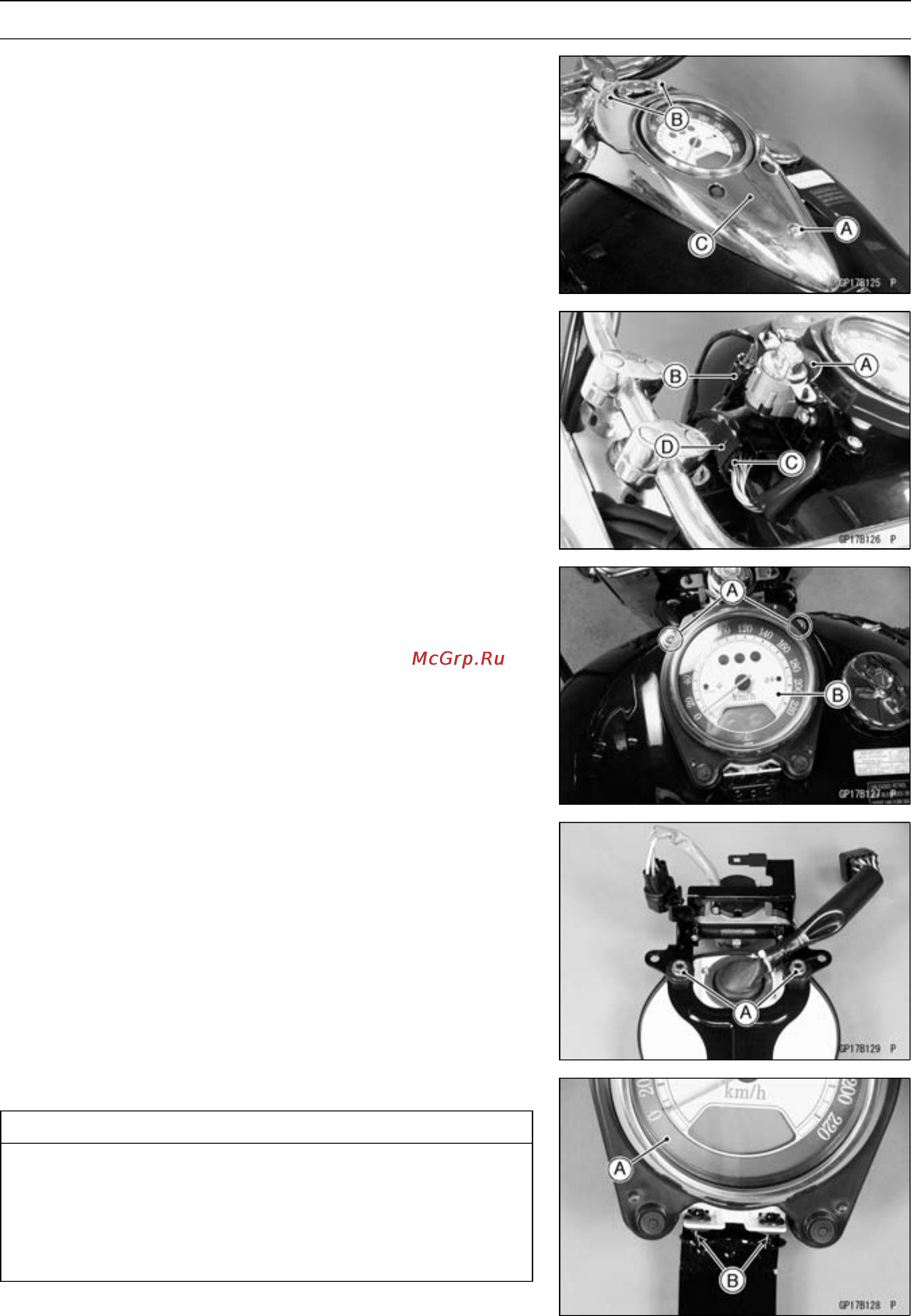

Meter Unit Removal
•
Remove:
Bolts [A] and Washers
Nuts [B]
Meter Cover [C]
•
Remove:
Cover [A]
Ignition Switch Lead Connector [B]
Meter Unit Lead Connector [C]
•
Remove the connector [D] from the bracket.
•
Remove:
Bolts [A]
Meter Unit [B] with Bracket
•
Remove:
Nuts [A]
•
Pull out the meter unit [A] from the pins [B] on the bracket.
CAUTION
Never drop the meter unit, especially on a hard sur-
face. Such a shock to t he unit can dam age it. Place
the speedometer so that the face is up. If the m e-
ter is left upside down or sideways for any length
of time, it will malfunction.
