16-80 ELECTRICAL SYSTEM
Meter, Gauge
LED Light Inspection
•

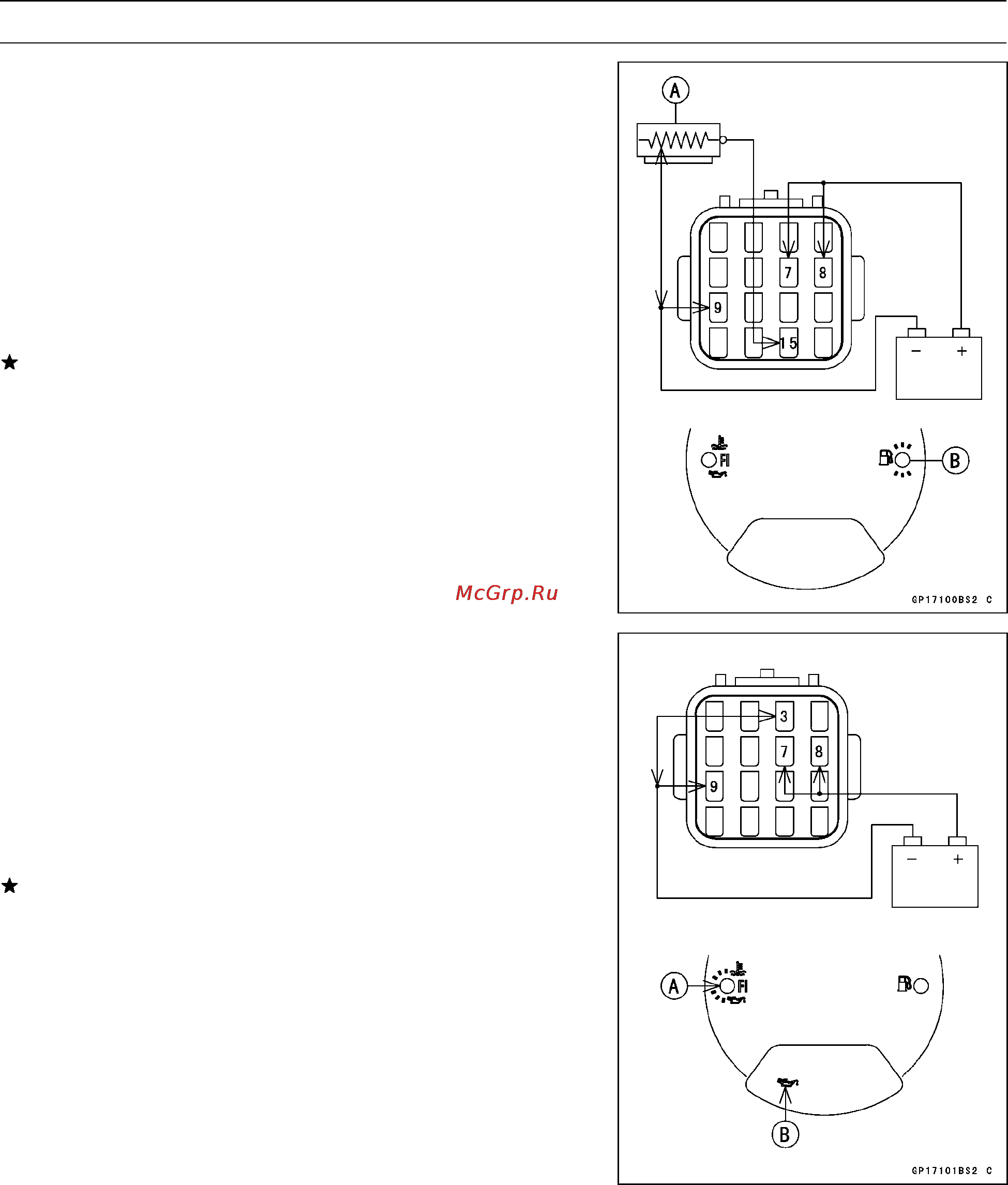

Connect the leads in the same circuit as for the LCD Seg-
ments Inspection, Check 2.
Fuel Level Warning Indicator LED Light:
•
Connect an about 30 Ω resistor [A] to the terminal [15]
and battery negative lead.
Fuel Level Warning Indicator LED Light Connections:
Battery N egative Lead (–) to Terminal [15]
○
The fuel level warning indicator LED light [B] should go
on.
If the fuel level warning indicator LED light does not go
on, replace the meter unit.
Oil Pressure Warning Indicator LED Light and LCD
Symbol:
•
Connect the lead to the terminal [3] and battery negative
lead.
Oil Pressure Warning Indicator LED Light Connections:
Battery N egative Lead (–) to Terminal [3]
○
The oil pressure warning indicator LED light [A] and sym-
bol [B] in the LCD should go on.
If the LED light and/or symbol do not go on, replace the
meter unit.
