Kawasaki VULCAN 1600 CLASSIC (2003) [557/575] Appendix 17 15
![Kawasaki VULCAN 1600 CLASSIC (2003) [557/575] Appendix 17 15](/views2/1121175/page557/bg22d.png)
APPENDIX 17-15

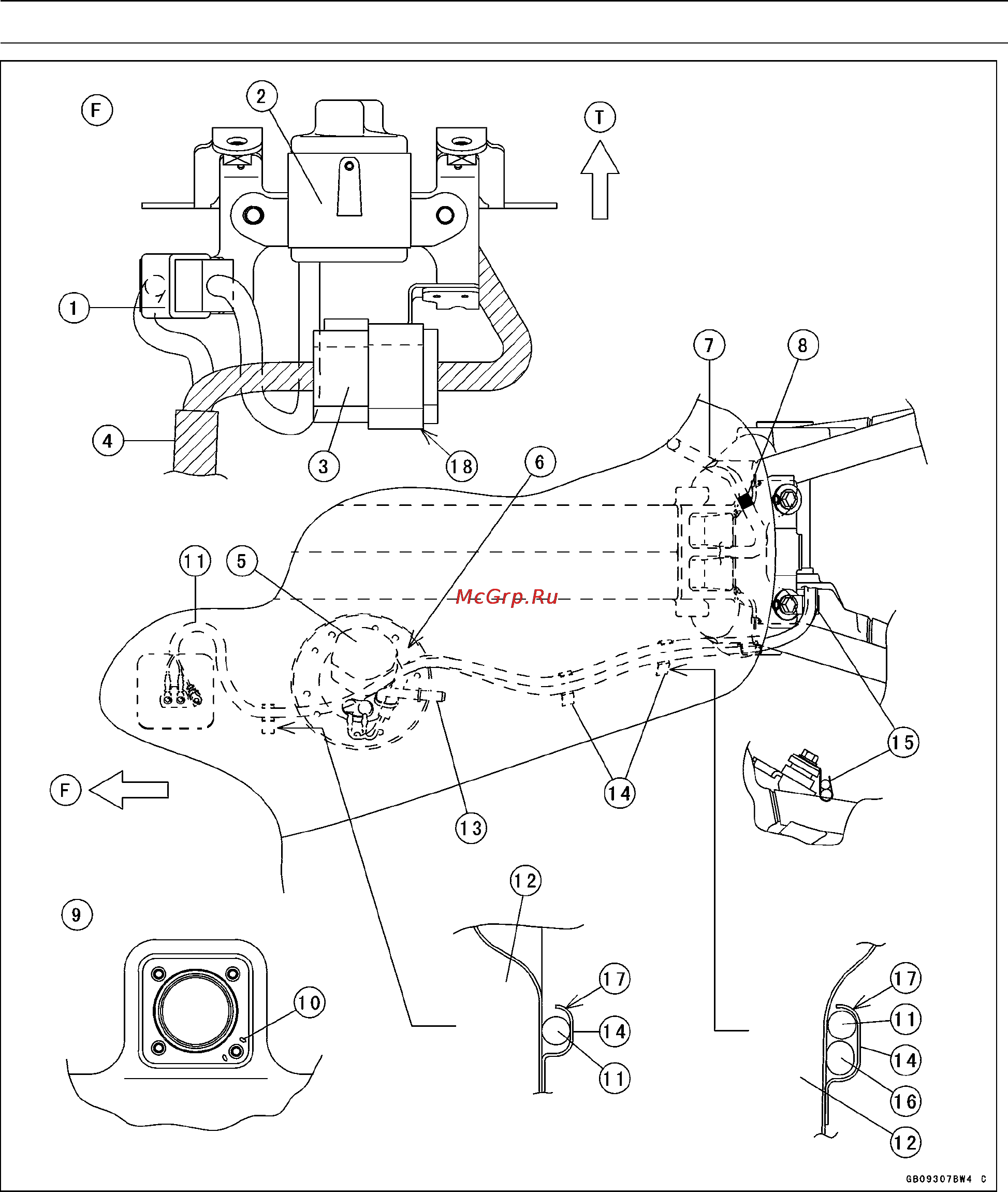

Cable, Wire, and Hose Routing
F: Front T: Top
1. Ignition Switch Connec-
tor: Pushthelocktodis-
connect. Join the con-
nector and fit it into the slit
of the bracket.
2. Ignition Switch
3. Speedometer/Fuel Level
Sensor Connector
4. Main Harness
5. Fuel Pump
6. Run the hose [16] be-
tween the pump [5] and
the pipe [3].
7. Fuel Tank Breather Hose
(except California)
8. Mark (Position here.)
9. Fuel Tank Bottom View
10. Two Recesses (Position
here.)
11. Fuel Level Sensor Lead
12. Inside of Fuel Tank
13. Fuel Pump Outlet P ipe
14. Clamps
15. Clamp
16. Fuel Pump Lead
17. Press the clamps
18. Raise the lock to discon-
nect.
