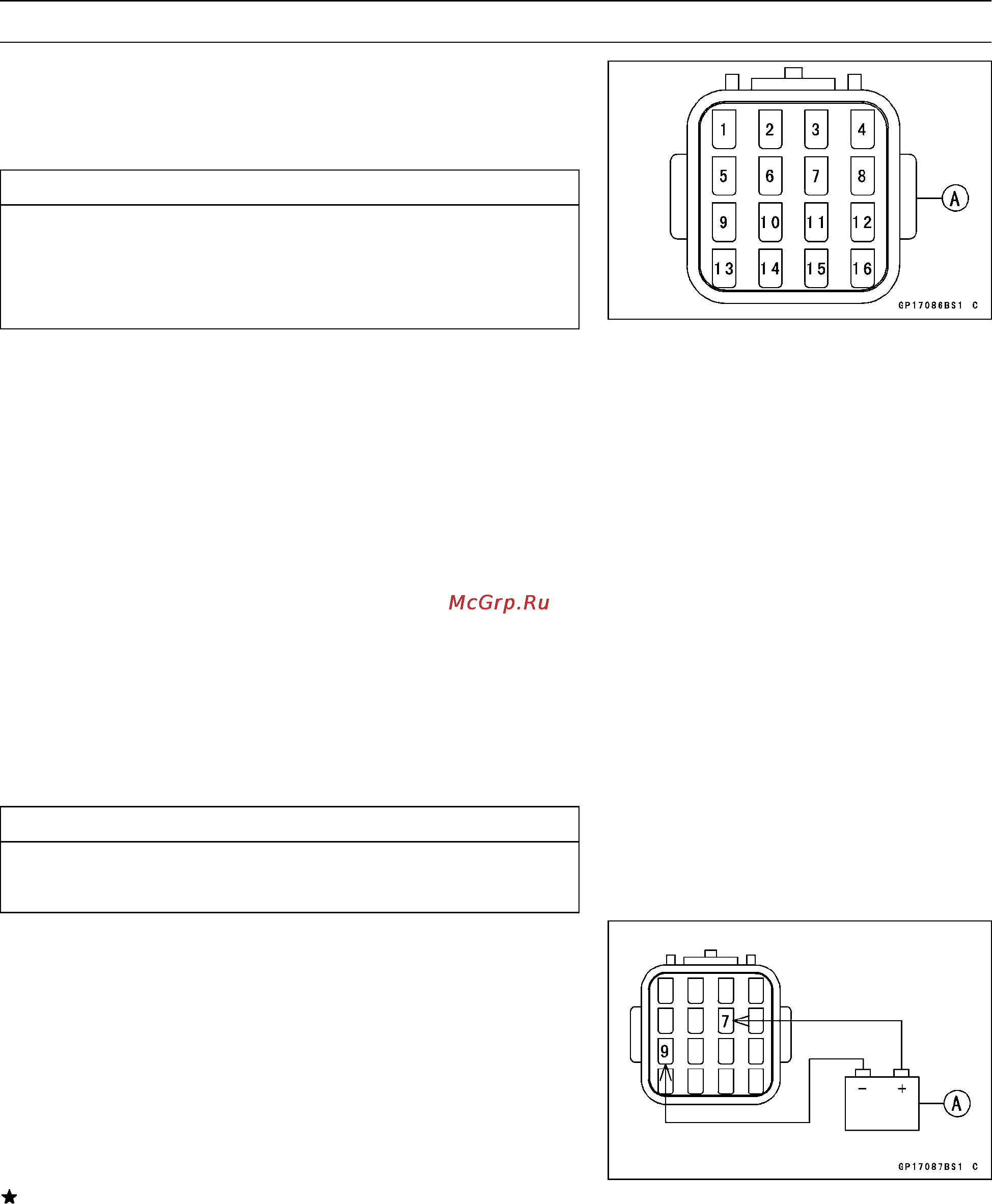

ELECTRICAL SYSTEM 16-75
Meter, Gauge
Meter Unit Inspection
LCD Segment Inspection:
•
Remove the meter unit (see Meter Unit Rem oval).
[A] Meter Unit Lead Connector
CAUTION
Do not drop the meter unit. Such a shock to the
meter unit can damage it. Place the meter facing
up. If a meter is left upside down or sideways for
any length of time, it will malfunction.
[1] Neutral Indicator Light (–)
[2] FI Indicator LED Light (–)
[3] Oil Pressure Warning LED Light (–)
[4] Water Temperature Warning LED Light (–)
[5] Speed Signal for Turn Signal Control Relay
[6] Unused
[7] Battery (+)
[8] Ignition, Neutral Indicator Light (+) and Illumination (+)
[9] Battery (–), High Beam Indicator Light (–) and Illumi-
nation (–)
[10] Speed Sensor Supply Voltage
[11] Speed Sensor Signal
[12] Fuel Level Sensor Signal
[13] Right Turn Signal Indicator Light (±)
[14] Left Turn Signal Indicator Light (±)
[15] Fuel Level Warning Indicator LED Light (–)
[16] High Beam Indicator Light (+ )
CAUTION
Do not short each terminals. When inspecting the
meter unit be sure to connect each connections.
Check1:
•
Using the auxiliary leads, connect a 12 V battery [A] to the
meter unit lead connector terminals.
Connections
Battery Positive Terminal (+) → Terminal [7]
Battery Negative Terminal (–) → Terminal [9]
○
When the terminals are connected, the speedometer nee-
dle momentary points to the last reading, and then return
to the 0 position.
If the needle function does not work, replace the meter
unit.
