FUEL SYSTEM (DFI) 3-83
Fuel Line
Fuel Pressure Inspection
NOTE
○
This inspection can determine which trouble the DFI
system has, mechanical or electrical trouble.
○
It is preferable to measure the fuel pressure while run-
ning the motorcycle when the trouble has occurred in
order to know symptom well.
○
Be sure the battery is fully charged.
•
Remove the fuel tank (see this chapter).
•

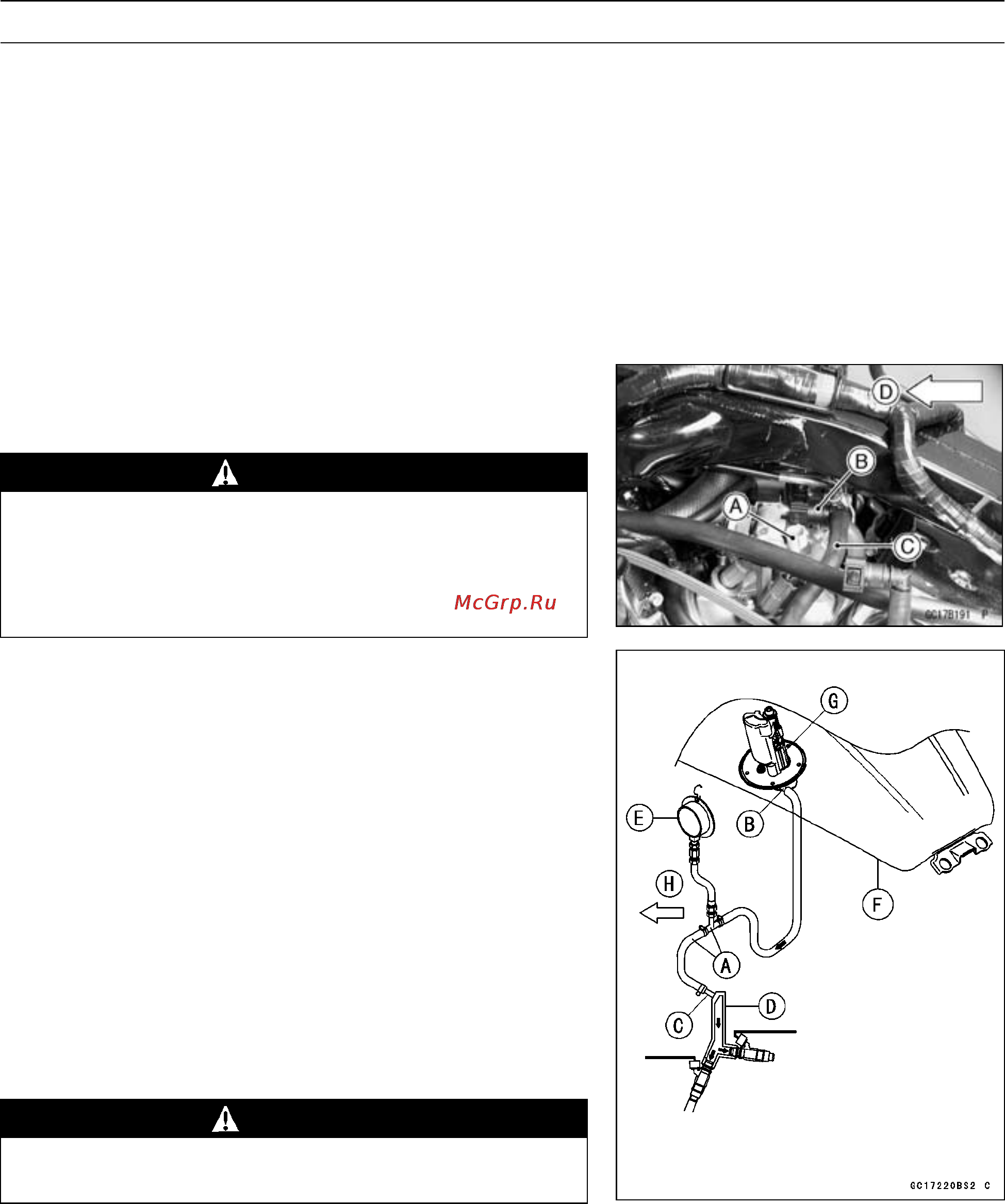

Disconnect the #2 fuel injector connector [A].
•
Pinch the lock of the fuel hose joint #2 with fingers, dis-
connect the joint [B] and take out the fuel hose assy [C].
Front [D]
WARNING
Be prepared for fuel spillage; any spilled fuel m ust
be completely wiped up immediately.
When the fuel hose is disconnected, fuel spills out
from the hose and the pipe. Cover the hose connec-
tion with a clean shop towel to prevent fuel spillage.
•
Install the fuel pressure gauge adapter [A] (special tool)
between the fuel tank outlet pipe [B] and the inlet pipe [C]
to the delivery joint [D].
○
Put the fuel pressure gauge adapter outside the frame.
•
Connect the pressure gauge [E] ( special tool) to the fuel
pressure gauge adapter.
Fuel Tank [F]
Fuel Pump [G]
Front [H]
→:FuelFlow
Special Tools - Fuel Pressure Gauge Adapter: 57001-1417
Oil Pressure Gauge: 57001-125
•
Temporarily, install the fuel tank.
•
Connect:
Fuel Pump Connector 2P
Battery Lead (–) Terminal
WARNING
Do not try to start the engine with the fuel hoses
disconnected.
•
Turn the ignition SW ON. The fuel pump will turn for 3
seconds, and then stop.
•
Measure the fuel pressure with the engine stopped.
Fuel Pressure
right after Ignition SW ON, with pump running:
Standard: 304kPa(3.1kgf/cm²,44psi)
after 3 seconds from Ignition SW ON, with pump
stopped:
Standard: 280 kPa (2.9 kgf/cm², 41 psi, residual
fuel pressure)
The system should hold the residual
pressure about 30 seconds.
