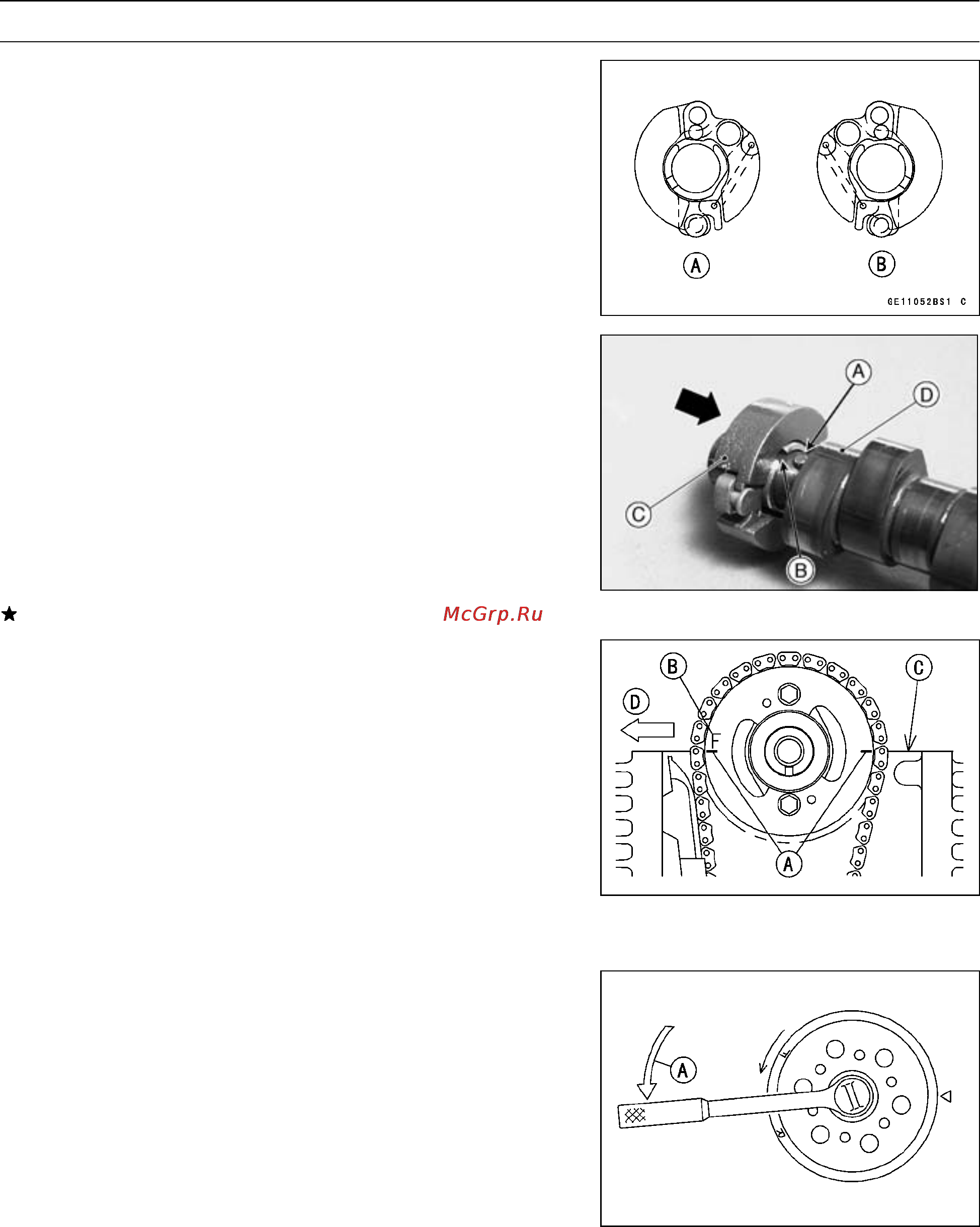

ENGINE TOP END 5-27
Camshafts
•
Install the KACR on each camshaft.
○
The front KACR [A] and rear KACR [B] are different (inside
view). Do not confuse these KACRs.
•
Fit the pin [A] into the notch [B], and install the KACR [C]
onto the camshaft [D].
•
Apply molybdenum disulfide oil to all cam parts, including
their journals.
○
The molybdenum disulfide oil is a mixture of engine oil
and molybdenum disulfide grease with a weight ratio (10
:1).
•
Remove the timing inspection cap and check that the “F”
mark aligns w ith the middle of the notch (front piston TDC)
(see Camshaft Removal).
If necessary, align them.
•
First, install the front camshaft.
○
Engage the front camshaft sprocket w ith the cam shaft
chain as shown.
Timing Marks [A]
F mark [B]
Cylinder Head Upper Surface [C]
Front [D]
○
Pull the f ront side (exhaust side) of the chain taut to install
the camshaft.
○
Install the front chain tensioner (see this chapter). The
timing m arks must be aligned with the cylinder head upper
surface.
•
Next, i nstall the rear camshaft.
○
Check to be sure that the front camshaft chain timing is
correct.
○
Turn the crankshaft counterclockwise [A].
