10-10 WHEELS/TIRES

Wheels (Rims)

•

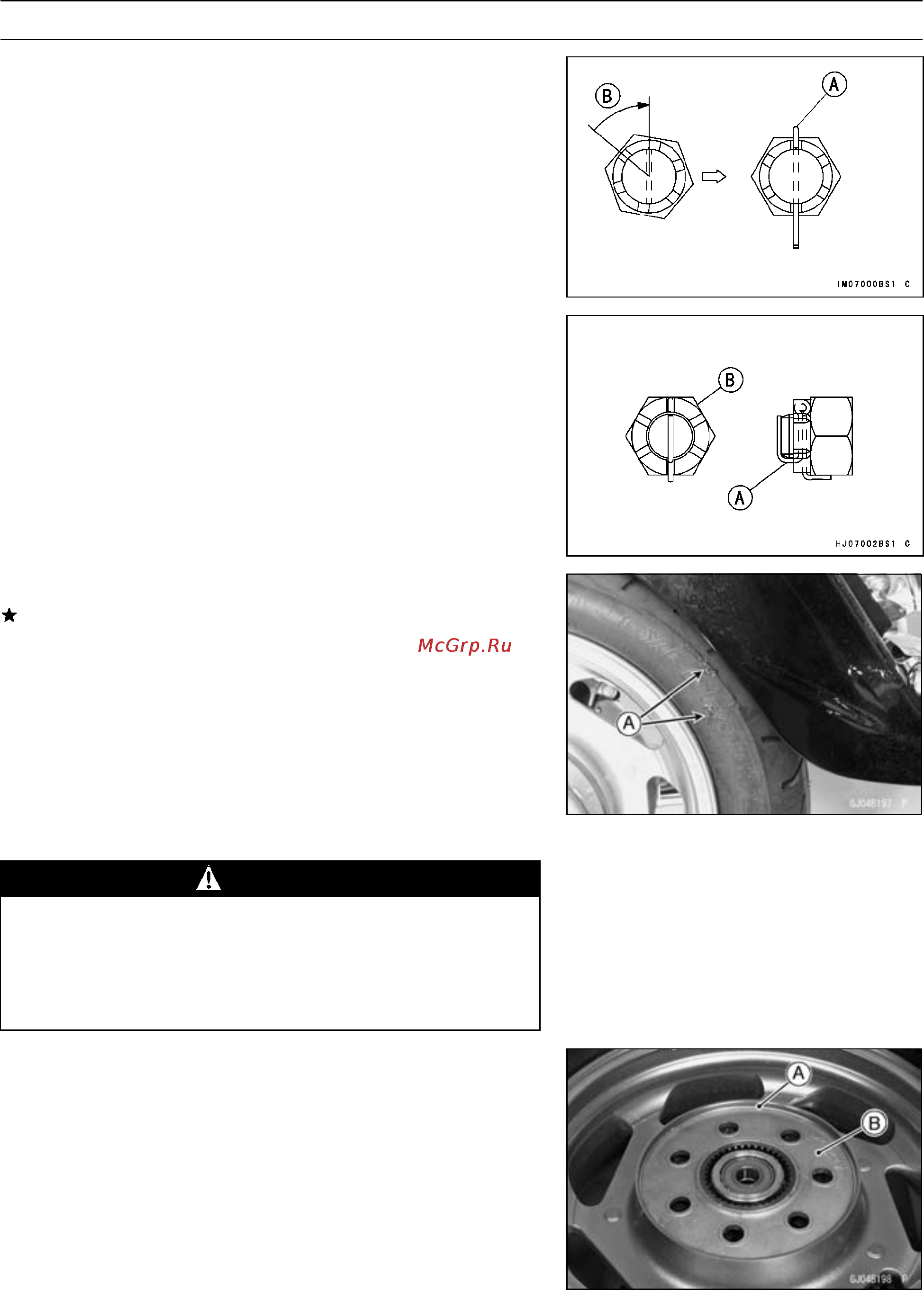

Insert a new cotter pin [A].

NOTE

○

When inserting the cotter pin, if the slots in the nut do

not align with the cotter pin hole in the axle, tighten the

nut clockwise [B] up to next alignment.

○

It should be within 30 degree.

○

Loosen once and tighten again when the slot goes past

the nearest hole.

•

Bend the cotter pin [A] over t he nut as shown [B].

•

Visually inspect the tire for stuck any grease [A].

If any grease have stuck to the s urface of the tire, wash

the tire clean with soap and water solution.

•

Check t he rear brake effectiveness.

WARNING

Do not attempt to ride the motorcycle until a full

brake pedal is obtained by pumping the brake pedal

until the pads are against the disc. The brake will

not function on the first application of the pedal i f

this is not done.

Wheel Coupling Removal

•

Remove the rear wheel (see Rear Wheel Removal).

•

Remove the coupling retaining ring [A].

•

Remove the wheel coupling [B] with a bearing puller if

necessary.
