3-88 FUEL SYSTEM (DFI)

Throttle Body Assy

•

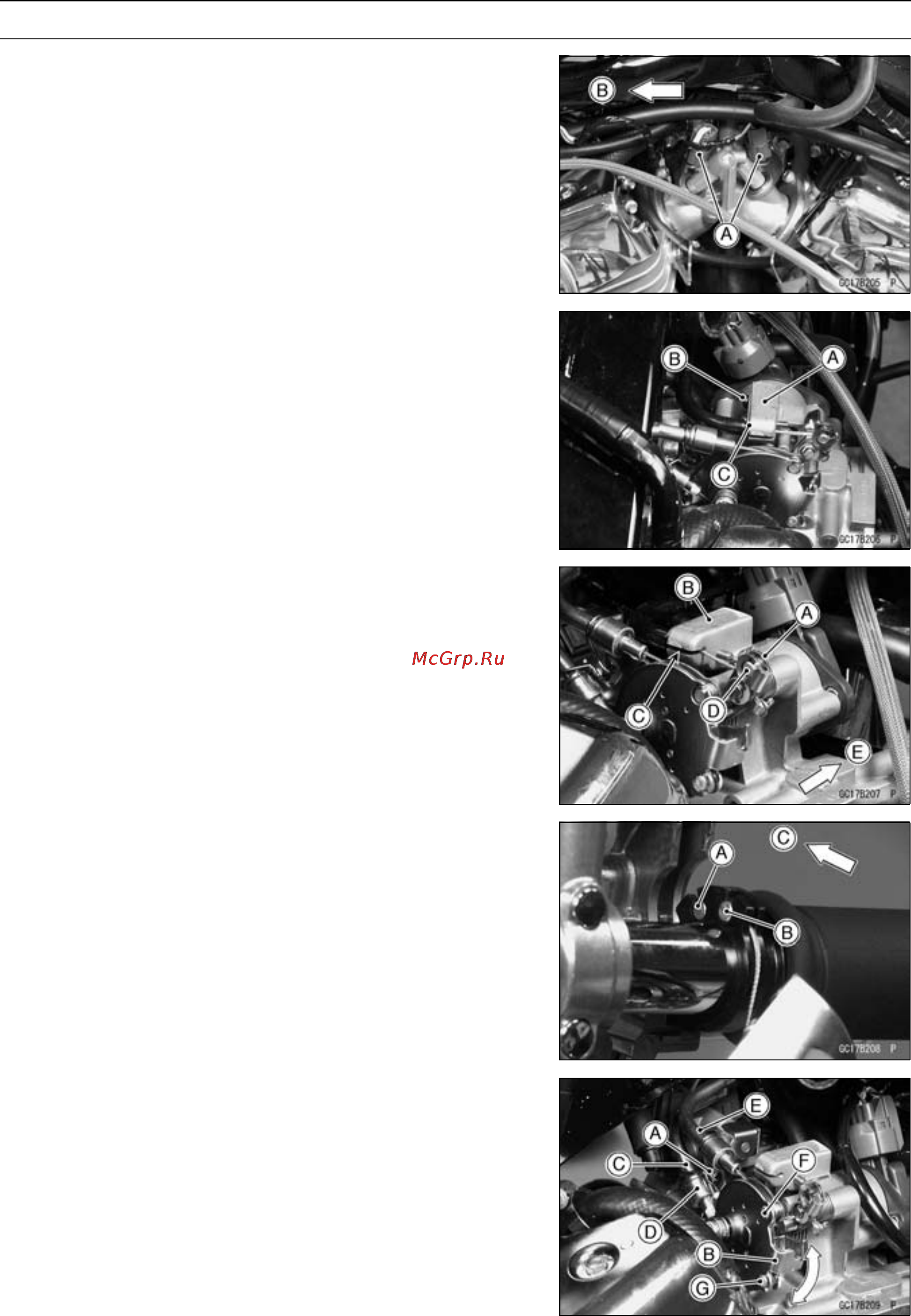

Disconnect the front and rear injector connectors [A].

Front [B]

•

Remove the f ollowing from the choke cable holder [A].

Screw [B]

Choke C able Plate [C]

•

While pushing the choke lever [A] forward, remove the

cable housing from the choke cable holder [B] and the

inner cable out of the holder slit [C].

•

Take off the lower end [D] from the choke lever.

Front [E]

•

Remove the screws and take off the right switch housing.

•

Remove the accelerator cable end [A] and decelerator

cable end [B] at the throttle grip.

Front [C]

•

Removethecableclip[A].

•

Turn the throttle pulley [B] as shown, and pull out the ac-

celerator cable housing [C] from the cable holder [D].

•

Return the pulley, and pull out the decelerator cable hous-

ing [E] from the cable holder.

•

Remove the decelerator cable end [F] and the accelerator

cable end [G] from the throttle pulley [B].
