16-58 ELECTRICAL SYSTEM
Starter Motor

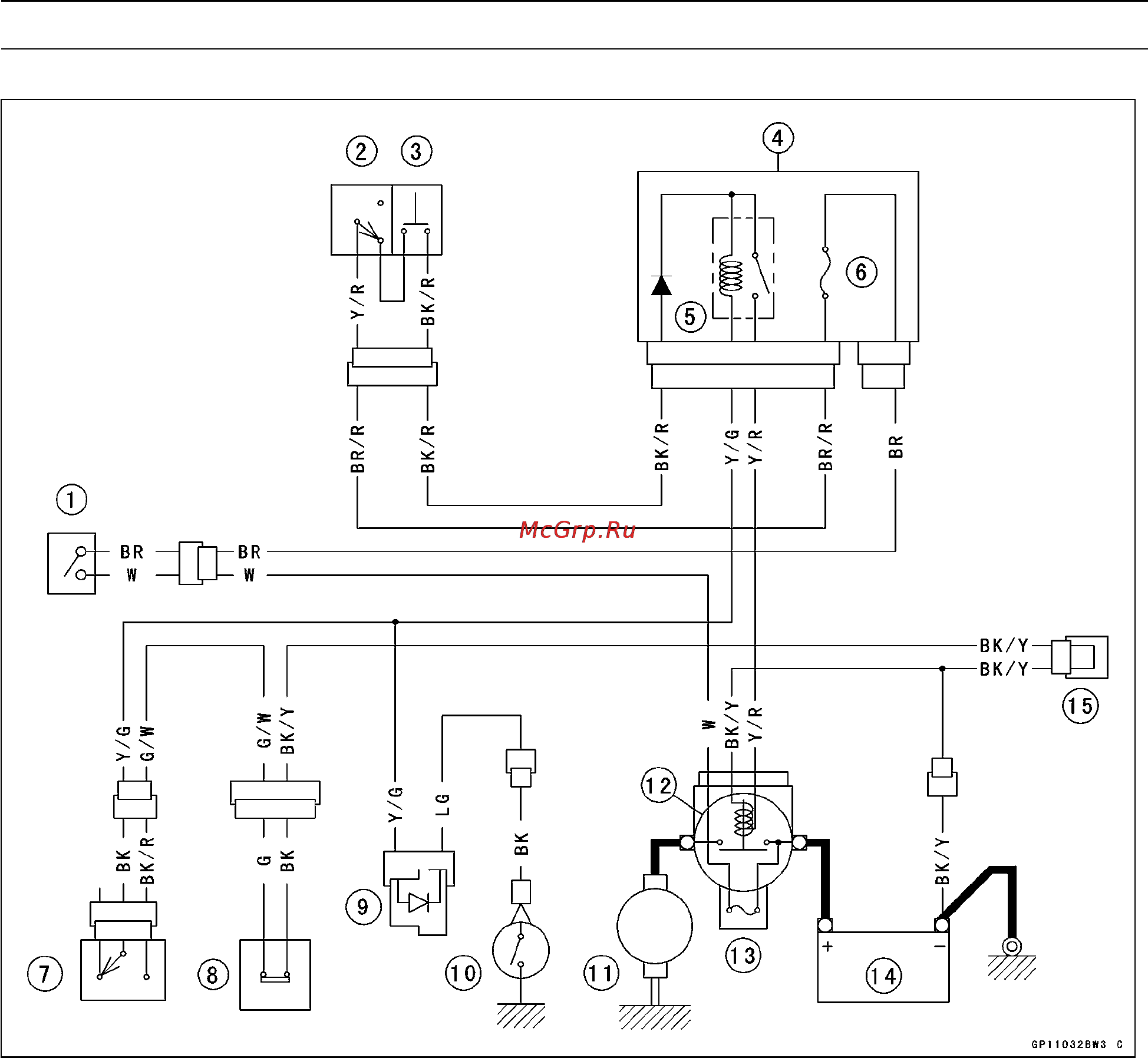

Electric Starter Circuit
1. Ignition Switch
2. Engine Stop Switch
3. Starter Button
4. Junction Box
5. Starter C ircuit Relay
6. Ignition Fuse 10 A
7. Starter Lockout Switch
8. Side Stand Switch
9. Diode
10. Neutral Switch
11. Starter Motor
12. Starter Relay
13. Main Fuse 30 A
14. Battery
15. Joint Connector
