Kawasaki VULCAN 1600 CLASSIC (2003) [528/575] Neutral indicator light connections

16-82 ELECTRICAL SYSTEM

Meter, Gauge

Neutral Indicator Light:

•

Connect the lead to the terminal [1] and battery negative

lead.

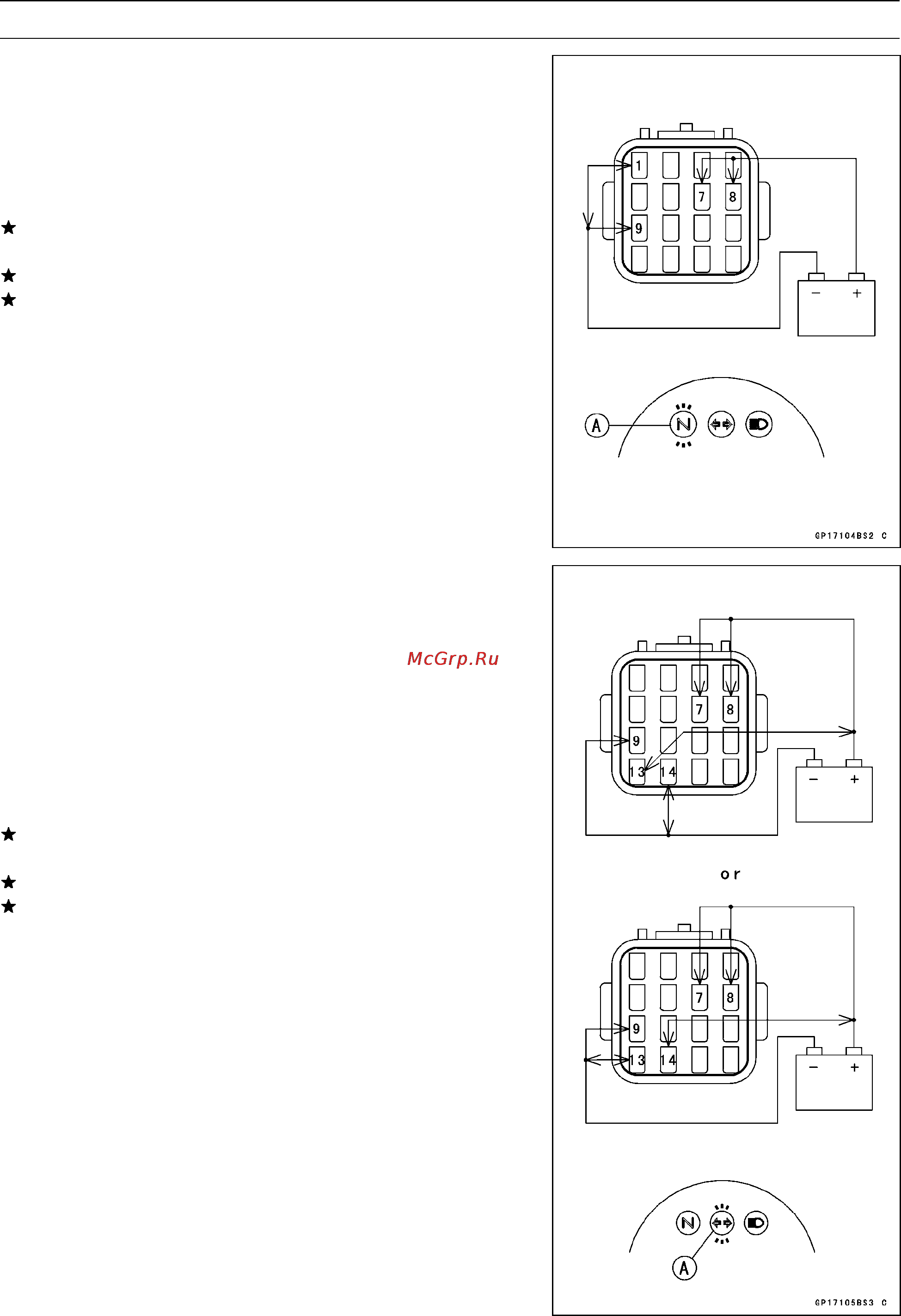

Neutral Indicator Light Connections:

Battery Negative Lead (–) to Terminal [1]

○

The neutral indicator light [A] should go on.

If the indicator light does not go on, inspect the bulb.

•

Check conductivity of the bulb with the hand tester.

If the bulb is open, replace the bulb.

Even if the bulb is replacement but the indicator light does

not go on, replace the meter unit.

Turn Signal Indicator Light:

•

Connect the lead to the terminal [13] and [14] as follows.

Neutral Indicator Li ght Connections:

Battery Positive Lead (+) to Terminal [13]

Battery Negative Lead (–) to Terminal [14]

Battery Positive Lead (+) to Terminal [14]

Battery Negative Lead (–) to Terminal [13]

○

The turn signal indicator light [A] should go on.

If the indicator light does not go on, inspect the bulb.

•

Check conductivity of the bulb with the hand tester.

If the bulb is open, replace the bulb.

Even if the bulb is replacement but the indicator light does

not go on, replace the meter unit.
