ELECTRICAL SYSTEM 16-57
Starter Motor
NOTE
○
Even if the foregoing checks show the armature to be
good, it may be defective in some manner not readily
detectable with the hand tester. If all other starter mo-
tor components and starter motor circuit components
check good, but the starter motor still does not turn over
or only turns over weakly, replace the starter motor with
a new one.

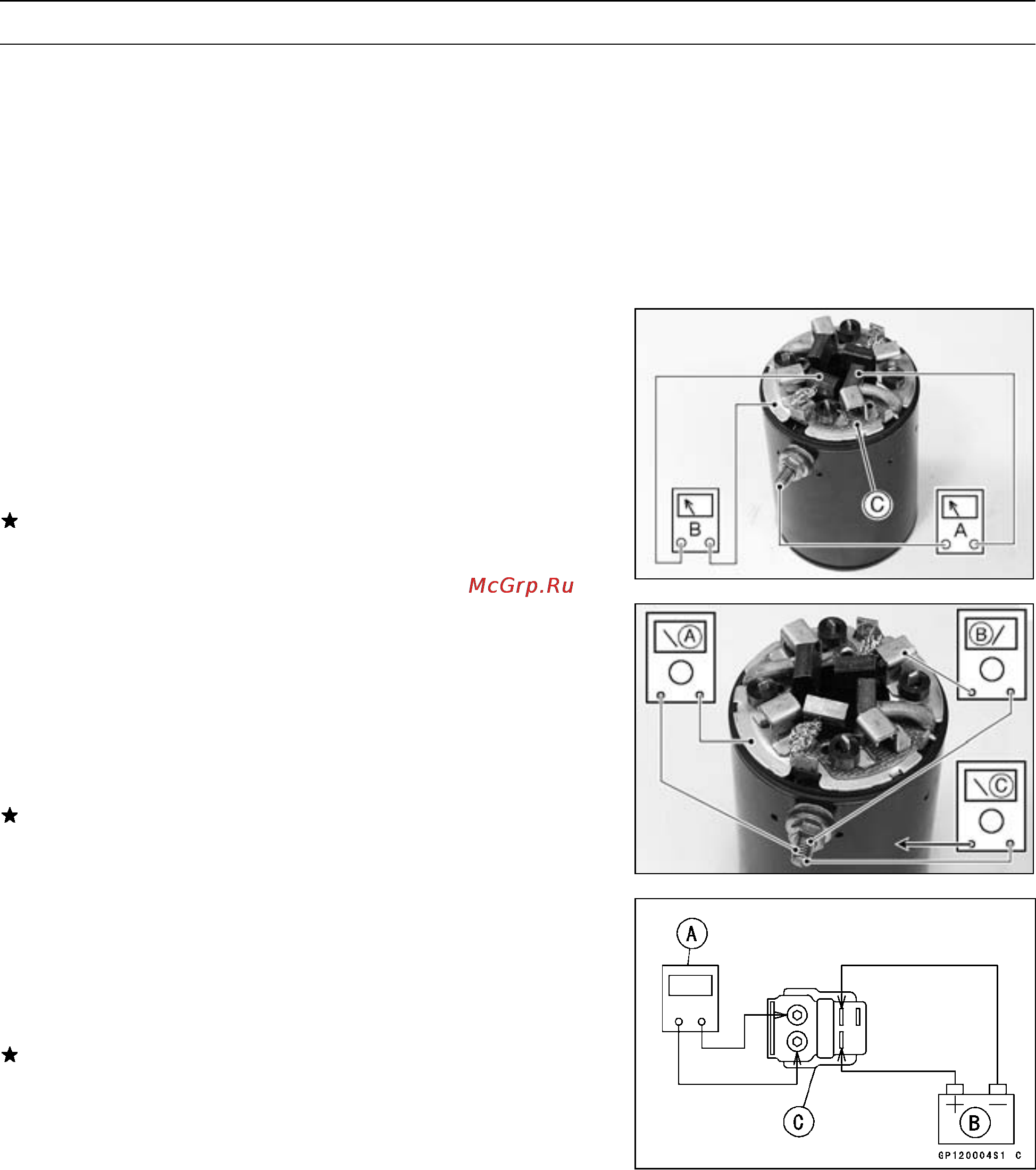

Brush Assy Inspection
•
Using the × 1 Ω hand tester range, m easure the resis-
tance as follows.
Terminal Bolt and Positive Brushes [A]
Brush Plate and N egative Brushes [B]
Plastic [C]
○
The reading should be zero.
If there is not close to zero ohm s, the brush lead has an
open. Replace the terminal bolt assembly and the brush
holder assembly.
Brush Plate and Terminal Bolt Inspection
•
Using the highest hand tester range, measure the resis-
tance as shown.
Terminal Bolt and Brush Plate [A]
Terminal Bolt and Negative Brush Holders [B]
Terminal Bolt and Yoke [C]
○
The reading should be infinite (∞Ω).
If there is any reading, the brush holder assembly and/or
terminal bolt assembly have a short. Replace t he brush
holder assembly and the t erminal bolt assembly.
Starter Relay Inspection
•
Remove the right side covers (see Frame c hapter).
•
Remove the coolant reserve tank, then the starter relay.
•
Connect the hand tester [A] and 12 V battery [B] t o the
starter relay [C] as shown.
If the relay does not work as specified, the relay is defec-
tive. Replace the relay.
Testing Relay
Tester Range: × 1 Ω range
Criteria: When battery is connected → 0 Ω
When battery is disconnected →∞Ω
