5-42 ENGINE TOP END

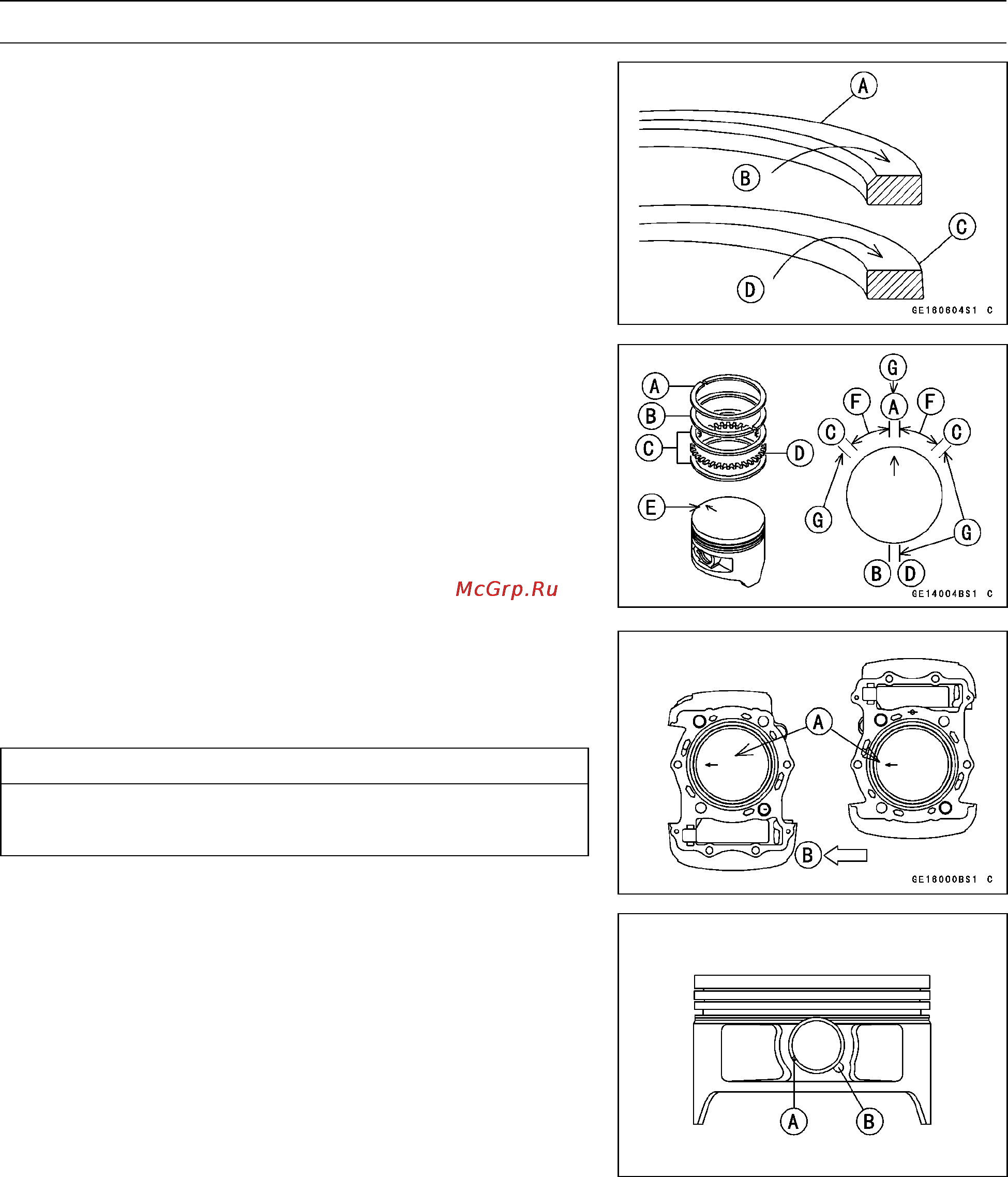

Cylinders, Piston
•
Do not mix up the top ring and second ring.
•
Install the top ring [A] so that the “R” m ark [B] faces up.
•
Install the second ring [C] so that the “RN”mark[D]faces
up.
•
The piston ring openings must be positioned as shown in
the figure. The openings of the oil ring steel rails m ust be
about 30 ∼ 45° [F] of angle from the opening of the top
ring.
Top R i n g [A]
Second Ring [B]
Oil Ring Steel Rails [C]
Oil Ring Expander [D]
Arrow mark [E] must be faced tow ard the engine front.
Opening Positions [G]
•
Face the arrow mark [A] on each piston toward the front
side [B].
○
The front and rear pistons are the same, but they should
be installed in t heir original positions.
CAUTION
Incorrect installation of the piston could cause pis-
ton seizure and result in severe engine damage.
•
Fit a new piston pin snap ring into the side of the piston
so that the ring opening [A] does not coincide with the slit
[B] of the piston pin hole.
•
Apply molybdenum disulfide oil to the outer surface of the
piston pin.
○
The m olybdenum disulfide oil is a mixture of engine oil
and molybdenum disulfide grease with a weight ratio (10
:1).
○
When installing the piston pin snap ring, compress it only
enough to install it and no more.
•
Apply m olybdenum disulfide oil to the cylinder bore.
•
Apply molybdenum disulfide oil to the front and rear of the
piston skirt.
•
Install the rear cylinder first, with the rear piston at TDC.
