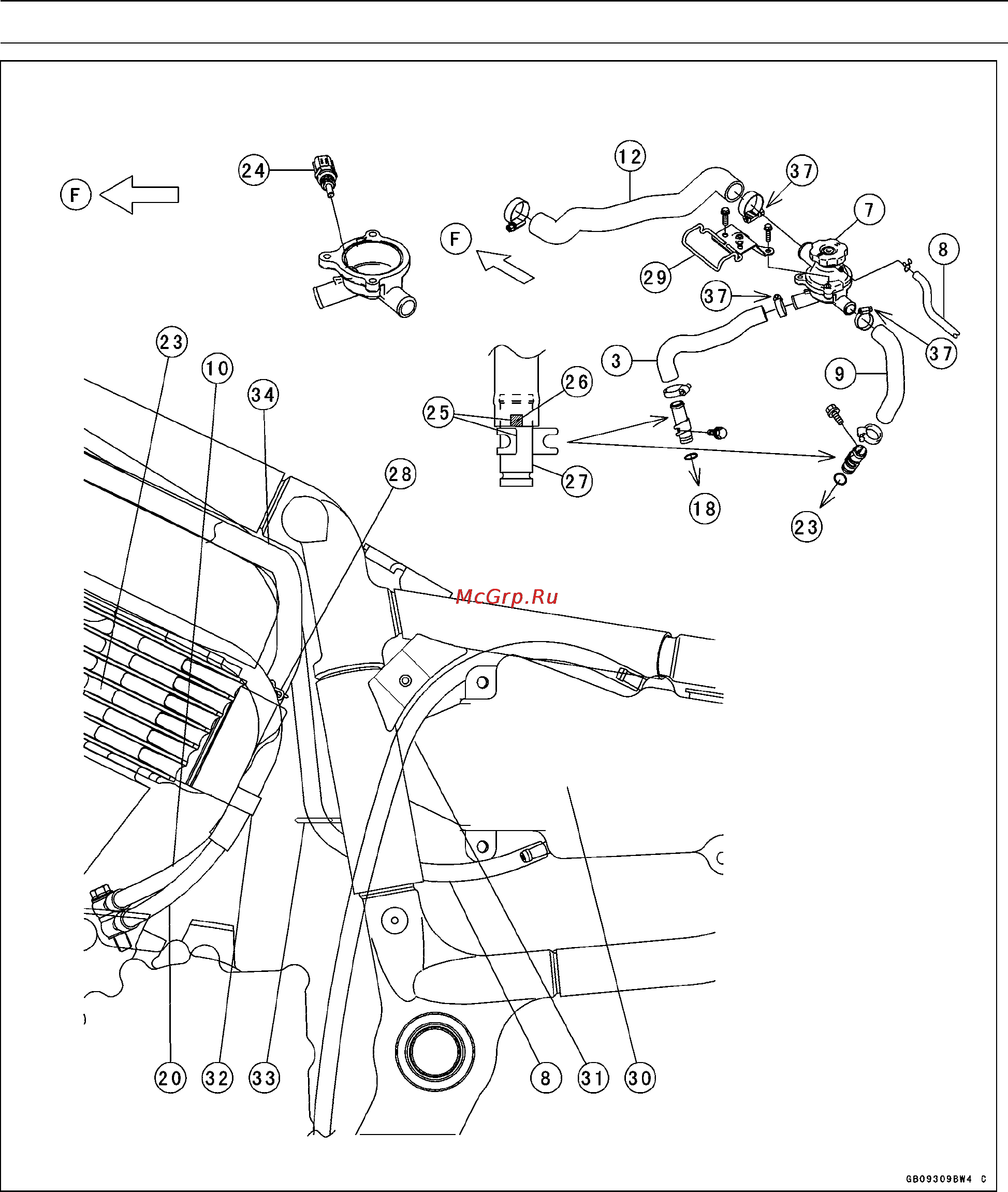

APPENDIX 17-7
Cable, Wire, and Hose Routing
F: Front
20. Front Oil Hose
21. Right Air Cleaner Base
22. Radiator Outlet Hose (right)
23. Rear Cylinder Head
24. Water Temperature Sensor (DFI)
25. Align the mark [26] with the clamp end.
26. White Marks on the hoses [3] and [9]
27. Water Pipes
28. Wire Clamp with the tab on the left
29. Main Harness Bracket
30. Coolant Reserve Tank
31. Coolant Reserve Tank Overflow Hose
32. Clamp
33. Holder
34. Rear Vacuum Switch Valve Hose
35. Front Vacuum Switch Valve Hose
36. Vacuum Switch Valve Hose to the base
[21]
37. Note each position and direction of the
clamp bolts.
